Quick Details
-
Brand Name:
-
YOKDEN
-
Model Number:
-
ATS 250A
-
part number::
-

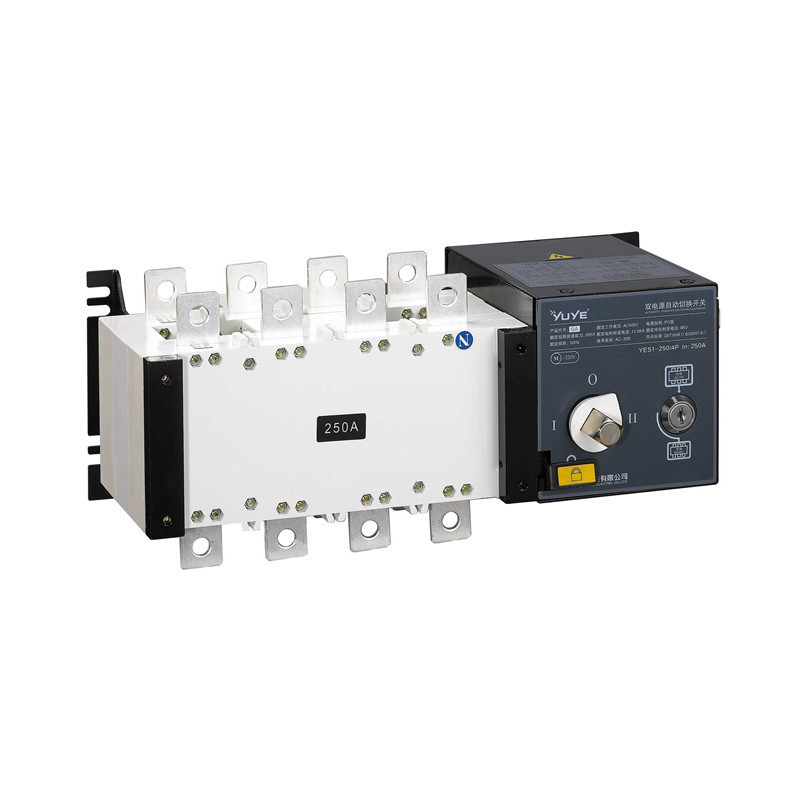

250A ATS Automatic Change Over Switch Generator ATS Switches
-
weight::
-
4kg
-
Max. Voltage:
-
380V
-
In stock::
-
Yes
-
Pole:
-
3P and 4P
-
Certificate::
-
CE ISO9001
-
Max current:
-
16A~3200A
-
type:
-
ats
-
Keyword:
-
ats
-
Certification:
-
ISO9001
Quick Details
-
Current:
-
250A
-
Warranty:
-
1 year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
YOKDEN
-
Model Number:
-
ATS 250A
-
part number::
-
250A ATS Automatic Change Over Switch Generator ATS Switches
-
weight::
-
4kg
-
Max. Voltage:
-
380V
-
In stock::
-
Yes
-
Pole:
-
3P and 4P
-
Certificate::
-
CE ISO9001
-
Max current:
-
16A~3200A
-
type:
-
ats
-
Keyword:
-
ats
-
Certification:
-
ISO9001
Main Products
Product Description
Introduction Generat or Control Unit 710 0
Automatic transfer switch mainly used for distribution or electromotor network, which under voltage 380V, rated voltage DC 220V,Rated current 16A-3200A.
Main power and standby power or mutual standby power change over system or city power and generator group overload switch-over. Atthe same time, it can operated under un-frequency on and off circuit act as disconnector.
Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building,etc, where doesn't allow power off.
|
Product Parameters
|
|
|
|
|
||||
|
Conventional thermal current lth A
|
100-1600A
|
|
|
|
||||
|
Rated current ln(A)
|
100A
|
200A
|
400A
|
630A
|
||||
|
Rated impulse withstand voltage Ui(A)
|
500
|
500
|
500
|
500
|
||||
|
Dielectric strength(V)
|
5000
|
5000
|
8000
|
8000
|
||||
|
Rated surge-resistant voltage Uimp kV(installed category IV)
|
8
|
8
|
12
|
12
|
||||
|
Rated short-time withstand current(kA Rms)0.1S/1S
|
9/5
|
25/12
|
40/20
|
50/25
|
||||
|
Rated breaking capbility(A Rms)AC33 380V
|
800
|
1600
|
3200
|
3200
|
||||
|
Rated making capability(A Rms)AC33 380V
|
1000
|
2000
|
4000
|
4000
|
||||
|
Rated short-current making capability lcm(kA peak value)
|
10
|
17
|
30
|
30
|
||||
|
Moment of operation(Nm)
|
15
|
30
|
45
|
45
|
||||
