Quick Details
-
Dimension(L*W*H):
-
730x710x715mm
-
Weight (KG):
-
220
-
Power (kW):
-
0.75
-
Surface Roughness(μm):
-
10 μm
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Bluestar
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
730x710x715mm
-
Weight (KG):
-
220
-
Power (kW):
-
0.75
-
Surface Roughness(μm):
-
10 μm
-
Certification:
-
CE

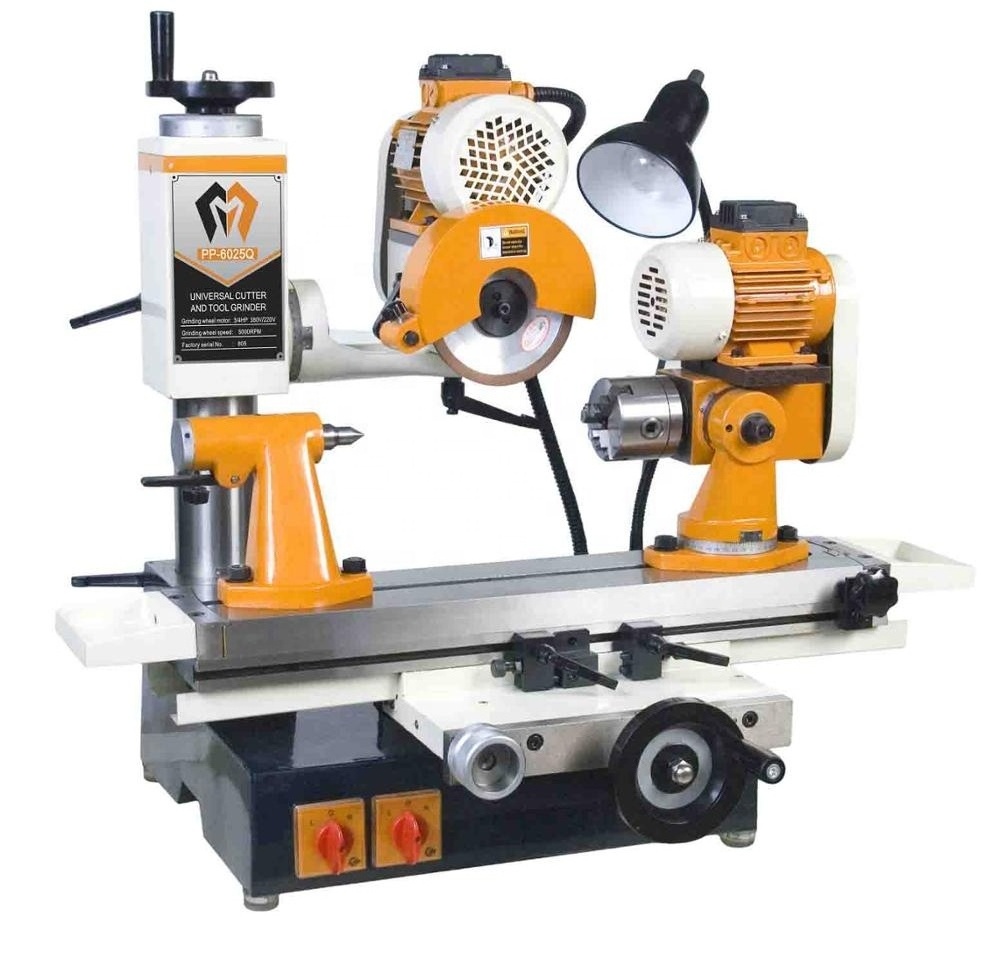

Universal cutter and tool Grinder 6025Q
Features:
- Both HSS cutters and Carbide cutters are available for sharpening.
- Precision Linear guideway makes the table stable and smoothly operated.
- All of formed cutters, butt mill, end mill, R-shaped mill, cylinder mill, face and side mill, single-angle mill, reamer, turning tool, R-shaped turning tool, hobber, drill, tap, graver, strong cutting tool, chamfering tool, round paper knife, plane grooves and profiled faces, etc.
- The motor could be rotated 360°, more functions and grinding range.
Specifications:
|
MODEL |
600F |
6025Q |
|
Longitudinal Travel of Table |
150mm |
150mm |
|
Horizontal Travel of Table |
260mm |
315mm |
|
Elevating Distance of Head |
160mm |
150mm |
|
Rotating Angle of Head |
360° |
360° |
|
Speed of Grinding Wheel |
2800 RPM |
4200/7000 RPM |
|
Motor Power |
3/4HP,220V/380V |
3/4HP,220V/380V |
|
Grinding Wheel Size |
150×16/50×32mm |
150×16/50×32mm |
|
Net/Gross Weight |
160/168KG |
209/222KG |
|
Packing Size |
700×630×630mm |
730×710×715mm |
WHY CHOOSE BLUESTAR BRAND MACHINE TOOLS:
1) High quality with competitive price
2) More than 10 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS’ ONLINE SERVICE FOR PROBLEM SHOOTING (SKYPE,Trademanager)
6) 12 months quality warranty
