Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Industrial
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WALWEN
-
Model Number:
-
WGH-03
-
Model NO.:
-
WGH-03
-
Step NO.:
-
2*3steps
-
Fold the height:
-
90cm
-
Loading Capacity:
-
375LBS
-
Color:
-
Can be customized
-
Package:
-
Shrink Wrapped
-
Net weight:
-
6.85kg
-
sapcing rungs:
-
30cm
-
Packing:
-
1PCS/CTN
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Apartment
-
Design Style:
-
Industrial
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WALWEN
-
Model Number:
-
WGH-03
-
Model NO.:
-
WGH-03
-
Step NO.:
-
2*3steps
-
Fold the height:
-
90cm
-
Loading Capacity:
-
375LBS
-
Color:
-
Can be customized
-
Package:
-
Shrink Wrapped
-
Net weight:
-
6.85kg
-
sapcing rungs:
-
30cm
-
Packing:
-
1PCS/CTN

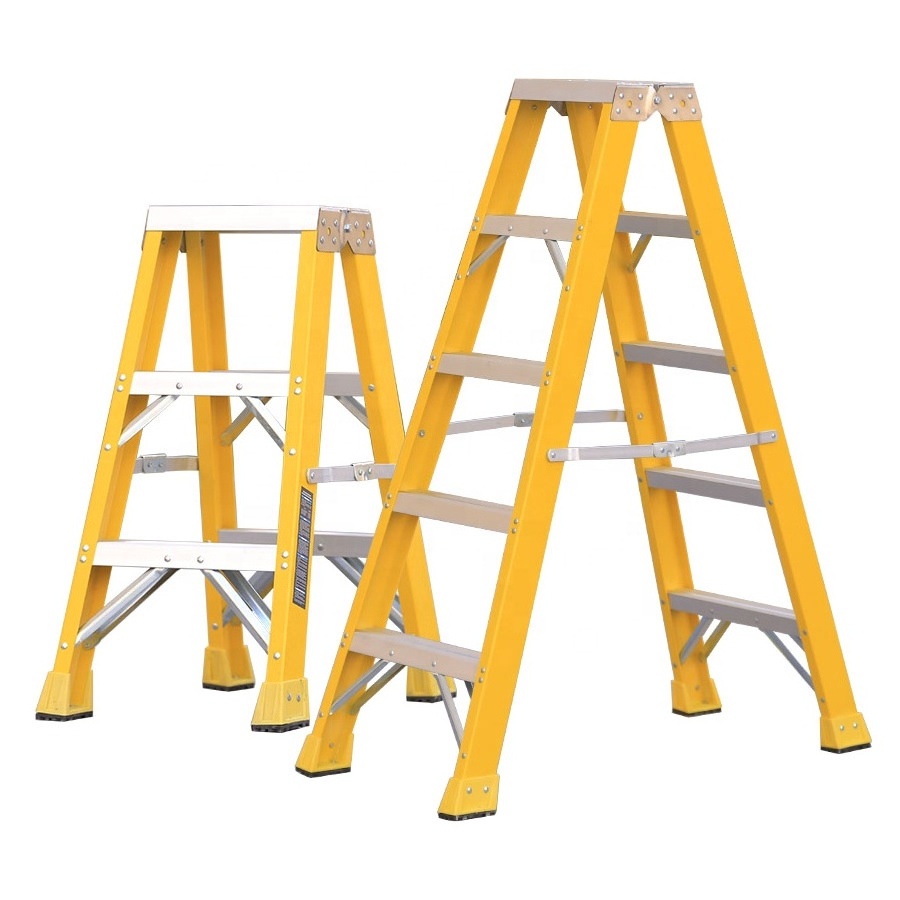

FIBERGLASS DOUBLE SIDE STEP LADDER
1. GENERAL DESCRIPTION
This ladder with a duty rating of 375lbs per side is designed for one or two-person work.
It is designed with a heavy duty aluminium top for entirely covering the ladder rails, and both sides of ladder are connected with two stamping side plates.
The braces and base shields make sure the ladder can be long lasting and durable.
This ladder is designed with non-conductive fiberglass rails to be able to work near electricity.
Please be noticed that the Max. load including person and material shall not exceed the duty rating of a ladder.
2. FEATURE
Heavy gauge aluminium top with extruded aluminim side plates( stainless steel side plates could be selected.)
Back up stainless steel plates strenghten all connectors.
Locknut on top hinge; 5 solid steel rivets attach top to each rail
Slip-resistant pedals are double riveted with braces to side rails
Super heavy duty aluminium spreaders( stainless steel spreaders can be selected.) are fixed to the rails on due spots externally( internal spreaders can be selected.)
Ruber step bumpers effectively avoid ladder rails be be broken during transport or on a accident force.( Sometimes it can be replaced by stainless steel braces accoding to customer.)
Aluminum external rail shield( or plastic shield) protects ladder rails against abrasion damage
Rubber shoe pads are riveted to the bottom of shield to prevent ladder from slippery at use
Metal, metal plates or washer is applied at back of each rivets to protect the fiberglass rails against any cracks
| PRODUCT NAME | MODEL NO. |
LOADING CAPACITY
( LBS) |
STEP NO. | PLACE OF SPREADER | STEP DISTANCE | N.W. | VERTICAL HEIGHT AT OPEN | TOTAL LENGTH | LADDER SPAN BETWEEN FRONT AND BACK SECTION | TOP WIDTH | BASE SPAN | PACKAGE |
| FIBERGLASS DOUBLE SIDE STEP LADDER | WGH-03 | 375 | 3 | 2-3 | 30 | 6.85 | 87 | 90 | 74 | 32 | 45 | PE FILM |
| WGH-04 | 375 | 4 | 2-3 | 30 | 8.2 | 116.5 | 120 | 92 | 32 | 49 | PE FILM | |
| WGH-05 | 375 | 5 | 3-4 | 30 | 9.7 | 143.5 | 150 | 115 | 32 | 53 | PE FILM | |
| WGH-06 | 375 | 6 | 3-4 | 30 | 11.25 | 171 | 180 | 134 | 32 | 57 | PE FILM | |
| WGH-07 | 375 | 7 | 4-5 | 30 | 12.9 | 200 | 210 | 154.5 | 32 | 61 | PE FILM | |
| WGH-08 | 375 | 8 | 4-5 | 30 | 14.75 | 228 | 240 | 174 | 32 | 65 | PE FILM | |
| WGH-10 | 375 | 10 | 5-6 | 30 | 19.05 | 284 | 300 | 214.5 | 32 | 73 | PE FILM | |
| WGH-12 | 375 | 12 | 6-7 | 30 | 23.8 | 340 | 360 | 255 | 32 | 81 | PE FILM | |
| WGH-14 | 375 | 14 | 7-8 | 30 | 28.4 | 396 | 420 | 300 | 32 | 89 | PE FILM | |
| WGH-16 | 375 | 16 | 8-9 | 30 | 32.8 | 452 | 480 | 340 | 32 | 97 | PE FILM |
Heavy gauge aluminium top with extruded aluminim side plates( stainless steel side plates could be selected.)
Back up stainless steel plates strenghten all connectors.
All ladder second steps are enhanced with both side brace.
Beam of ladder with loading capacity 375lbs connected with each step by each end two rivets
5mm thickend spreaders can be fixed outside or inside of beams.
Heavy duty anti-skid wide steps
Last step of each ladder is strengthened with two long braces on each end of step
Aluminum external rail shield( or plastic shield) protects ladder rails against abrasion damage
Rubber shoe pads are riveted to the bottom of shield to prevent ladder from slippery at use
Metal, metal plates or washer is applied at back of each rivets to protect the fiberglass rails against any cracks
WALWEN ladders are designed to meet international standards! We only make safe and user-friendly ladders!
