- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LNE-PET, LNE-PET-016
-
Product Name:
-
Pet expandable braided sleeving
-
Color:
-
Black, Others customized
-
Certification:
-
RoHS, CE
-
Sample:
-
Avaliable
-
Flame Retardant Rating:
-
VW-1
-
Feature:
-
Halogen free
-
Melting Point:
-
240±10℃
-
STANDARD:
-
ISO9001
-
sample:
-
available
Quick Details
-
Material:
-
Polyester
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEINUOER
-
Model Number:
-
LNE-PET, LNE-PET-016
-
Product Name:
-
Pet expandable braided sleeving
-
Color:
-
Black, Others customized
-
Certification:
-
RoHS, CE
-
Sample:
-
Avaliable
-
Flame Retardant Rating:
-
VW-1
-
Feature:
-
Halogen free
-
Melting Point:
-
240±10℃
-
STANDARD:
-
ISO9001
-
sample:
-
available

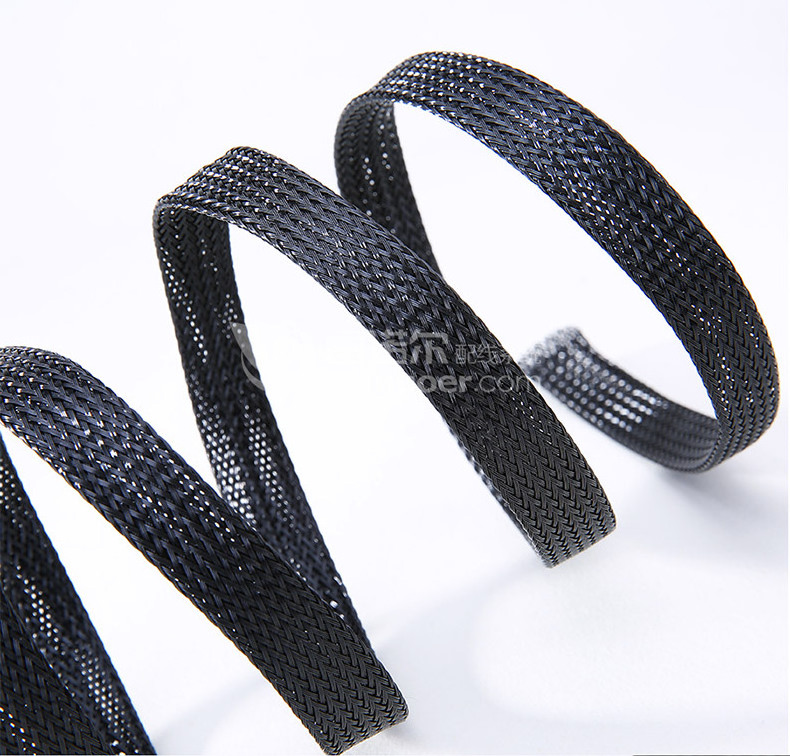

LNE-PET PET Polyester Expandable Sleeving
Product material:
polyester
Working temperature:
-50℃~+150℃
Melting point
：240±10℃
Cutting tools:
keen knife
Certification
: RoHS
Color:
black
Flame retardant rating:
VW-1
Property:
high-performance with
flame retardant & halogen free
Meet the requirement of wear protection in various industrial fields .
it expands the diameter to 1.5 times larger than the original size with unique weaving structure
. deal for assembling wiring harness,also can easily go through the huge volume connector .With Property of flame retardance, oil resistance, halogen free, simple operation and easy assemblely.
Application:
Widely used in switch cabinet, railway, high speed rail, aerospace and other industriesfield which bears requirements for high flame retardance level,performs well on wires assemblely and protection.
|
Order No.
|
Bending Diameter（W）
|
|
Telescopic Range(mm)
|
|
Packaging Unit（m）
|
||
|
|
Inch
|
mm
|
Min(I)
|
Max(O)
|
|
||
|
LNE-PET-003
|
1/8″
|
3
|
|
6
|
1000
|
||
|
LNE-PET-006
|
1/4″
|
6
|
3
|
9
|
500
|
||
|
LNE-PET-008
|
5/16″
|
8
|
5
|
12
|
350
|
||
|
LNE-PET-010
|
3/8″
|
10
|
7
|
19
|
350
|
||
|
LNE-PET-012
|
1/2″
|
12
|
8
|
24
|
300
|
||
|
LNE-PET-016
|
5/8″
|
15
|
10
|
27
|
250
|
||
|
LNE-PET-019
|
3/4″
|
20
|
14
|
30
|
200
|
||
|
LNE-PET-025
|
1″
|
25
|
18
|
35
|
200
|
||
|
LNE-PET-032
|
1 1/4″
|
30
|
20
|
50
|
150
|
||
|
LNE-PET-038
|
1 1/2″
|
40
|
30
|
60
|
100
|
||
|
LNE-PET-045
|
1 3/4″
|
45
|
35
|
75
|
100
|
||
|
LNE-PET-050
|
2″
|
50
|
40
|
80
|
100
|
||
|
LNE-PET-064
|
2 1/2″
|
64
|
45
|
105
|
100
|
||
|
LNE-PET-076
|
3″
|
76
|
64
|
120
|
100
|
||
LNE-ZBG
Self-closing braided wrap
LNE-ZJF
Self-closing spinning sleeving
LNE-PP
Flame retardant PP flexible conduit
LEINUOER HAVE WIN-WIN COOPERATION WITH LARGE ENTERPRISES
High quality products get customers' praise and turst from the world!
Owing to strict quality control,state-of-the-art,continuous improvement and never stop to open the market,it makes Leinuoer boom very fast.
1.Now Leinuoer has been passed the certificate of ISO9001:2000 ;
2.the PA pipe has been passed the audit of Chinese Ministry of Railway ;
3.the new model of the liquid-tight cable gland has been leveled IP68 ;
4.the PA pipe and PVC coated flexible pipe have been passed the certificate of RoHS .
The products have been widely used into power train,automobile cables,mechanical and machines,automatic apparatus and meters,tobacco equipment,motors,engineering and installation etc.
