EPE Foam Net Extrusion Machine
Raw material: LDPE(Polyethylene)
Finished product: foam net/foam mattress
Foam agent: Butane gas
Mesh number: 10-40
Density: 20-30 kg/M3
Screw type: Single-screw (38CrMoALA)
Screw L/D: 55:1
Cooling method: wind cooling and water cooling
- Product Details
- {{item.text}}
Quick Details
-
Screw Speed (rpm):
-
140 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sunvo
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
15*1.3*1.2
-
Power (kW):
-
38
-
Weight:
-
3 KG
-
Name:
-
epe foam net machine
-
Raw material:
-
PP PE
-
Product Type:
-
PE HDPE
-
Final product:
-
net
-
Automatic Grade:
-
automatic
-
Power(W):
-
60kw
-
Type:
-
Excruder
-
Function:
-
Extrution
-
Color:
-
Customer Choice
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
55:1
-
Screw diameter (mm):
-
75 mm
-
Screw Speed (rpm):
-
140 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sunvo
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
15*1.3*1.2
-
Power (kW):
-
38
-
Weight:
-
3 KG
-
Name:
-
epe foam net machine
-
Raw material:
-
PP PE
-
Product Type:
-
PE HDPE
-
Final product:
-
net
-
Automatic Grade:
-
automatic
-
Power(W):
-
60kw
-
Type:
-
Excruder
-
Function:
-
Extrution
-
Color:
-
Customer Choice
Product Overview
Polyethylene epe foam fruit net machine foam mesh sheet extrusion line for vegetables and fruits machine

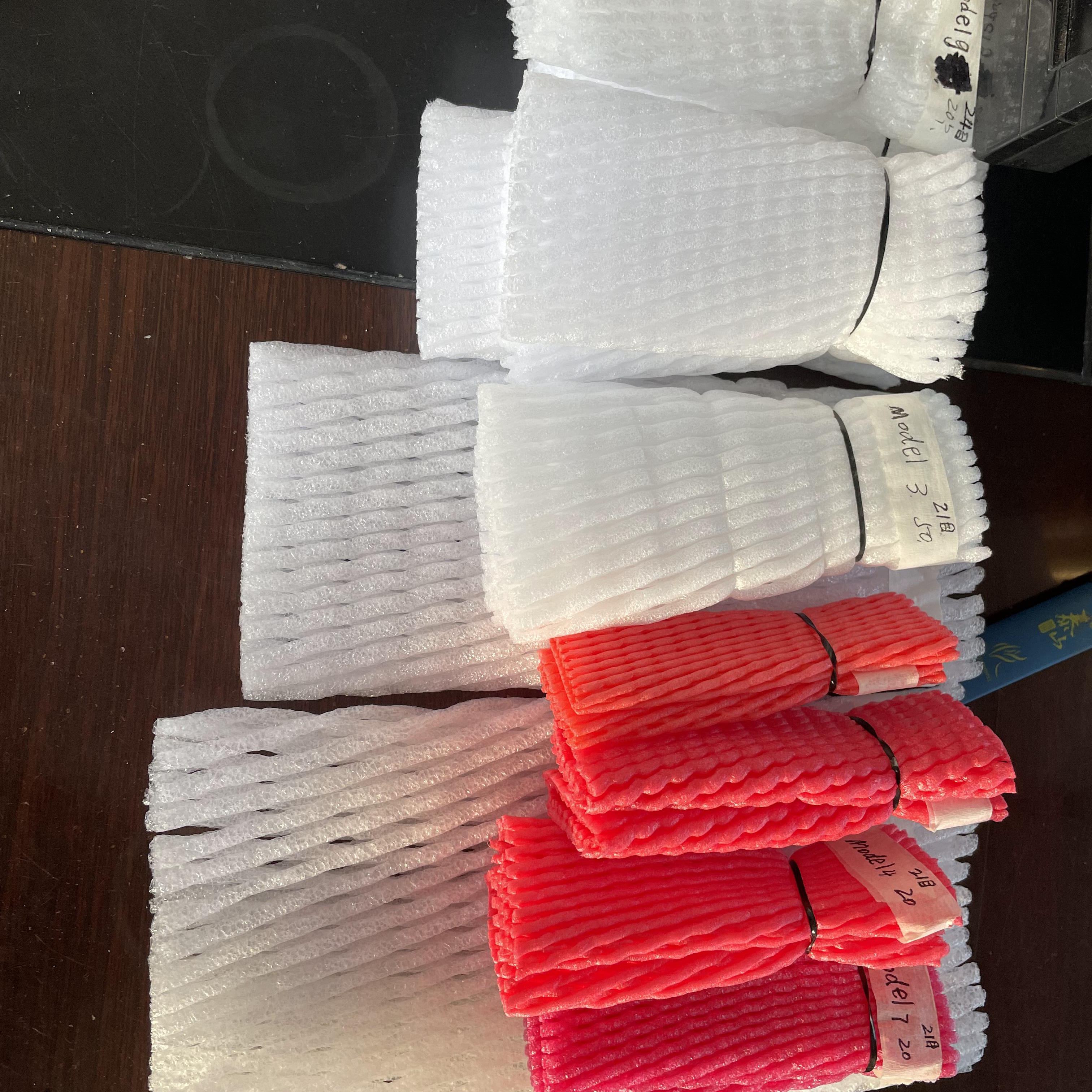

EPE Foam Net Extrusion Line can produce foam net, pipe, rob,edge, profile by changing mold head, EPE foam net is a new kind of soft packing material. It is widely used for the package of glass products, precision instrument and various kinds of fruits. Due to its unique expanding reticulation structure and the elasticity, it is widely used in the package of glass product, precision instrument, and various fruits.
FEATURES AT A GLANCE
Details Images
Automatic feeding device and feeder table
Auto feeding unit 1 set
Feeding capacity: 100-150 kg/hr
Feeding method: Auto feeding
Hopper: conical CE standard
Driving motor: 1
set power: 0.3 KW
set power: 0.3 KW
Hopper capacity: 100 kg
Hopper with sight-glass
Operation table of blending materials : Made of ss41 steel CE standard
Steel ladder: made of ss41 steel CE standard
Remark: If you don't need the automatic feeding unit, we can also equip with
mixer.
mixer.
Extruding unit
Screw tube
Diameter: ∮140mm
Material: 38CrMoAlA nitrogen treatment
Heating area：7pcs
Method of heating：cast aluminum heater Method of cooling: outer water cooling
Screw
Screw
Diameter: ∮75（L/D-55：1）
Material: 38CrMoAlA nitrogen treatment Compression ratio: 3：1
Rotating speed: 0-48r/min
Screen changer and die head unit
Screen changer unit
Do not stop to change the network
Do not stop to change the network
Heating power: 3 KW
Heating zone: 1 pc
Die head unit
Type: Circular die head
Type: Circular die head
Quantity of die head: 1 set
Material:carbon and alloy steel
Heating zone: one
Heating method: Heating circular
Die motor: 3 KW
Haul-off and cutting unit
Length controlled: controlled by haul-off Material of the knife: carbon and alloy steel Driven type: motor drives gear box,
controlled by inverter.
controlled by inverter.
Motor power: 0.75kw*2 (speed regulation) Count control: meter controller can be preset alarming
PRODUCT SPECIFICATIONS
|
Model
|
Units
|
SH-70
|
SH-75
|
|
|
Extruder
|
|
70/55
|
75/55
|
|
|
L/D
|
|
55:1
|
55:1
|
|
|
Capacity
|
kg/h
|
25-30
|
40-50
|
|
|
Foaming rate
|
|
10-40
|
10-40
|
|
|
Installed capacity
|
kw
|
28
|
32
|
|
|
Overall size
|
mm
|
5500×1200×1700
|
8000*1300*1700
|
|
|
Weight
|
T
|
3.5
|
4
|
|
|
|
|
|
|
|
PRODUCT CONFIGURATION
Hard Tooth Surface Reducer
Barrel & Screw
(38CrMoALA)
Unique design die head
Application
FAQ
Q:. Why I choose your company?
A: 1) We are one of the leading manufacturers of packing materials and related machinery .
2) Our company has made foam machine about 20 years with strong experience and advanced technique
3) Best Quality & Best Service with Competitive price. 1 year guarantee and lifetime maintenance
4) We have CE certificate and ISO 9001:2008
5) We have Professional technical team, and will supply 24 hours service
Q: What should we prepare for PE Foam Net Making Machine
A:You should prepare raw material(LDPE), workshop, water line, electric line, gas, compress air(if you need I can help you buy air compressor)
We would supply workshop layout drawing for you
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Longkou city, Shandong province, you can fly to Yantai Penglai International Airport.When you confirm the flight No. and time, please tell me then we will pick you up at Airport.
