Quick Details
-
Engine Brand:
-
imported brand
-
Travel Speed:
-
0-10km/h
-
Grade Ability:
-
48%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinomada
-
Dimension(L*W*H):
-
5957*2305*3191mm
-
Minimum work weight:
-
16000kg
-
Maximum working weight:
-
16000kg
-
Nominal Vibration Amplitude high/low mm:
-
1.9/1.0
-
Frequency HZ:
-
30
-
Ground pressure:
-
150-300kpa
-
Theoretical climbing ability:
-
30%
-
Gradient capacity %:
-
30
-
Rolling width::
-
1550
-
Rated output kw:
-
105
-
condition:
-
new
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
82kw
-
Weight:
-
10120kg
-
Engine Brand:
-
imported brand
-
Travel Speed:
-
0-10km/h
-
Grade Ability:
-
48%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinomada
-
Dimension(L*W*H):
-
5957*2305*3191mm
-
Minimum work weight:
-
16000kg
-
Maximum working weight:
-
16000kg
-
Nominal Vibration Amplitude high/low mm:
-
1.9/1.0
-
Frequency HZ:
-
30
-
Ground pressure:
-
150-300kpa
-
Theoretical climbing ability:
-
30%
-
Gradient capacity %:
-
30
-
Rolling width::
-
1550
-
Rated output kw:
-
105
-
condition:
-
new
PRODUCT DESCRIPTION

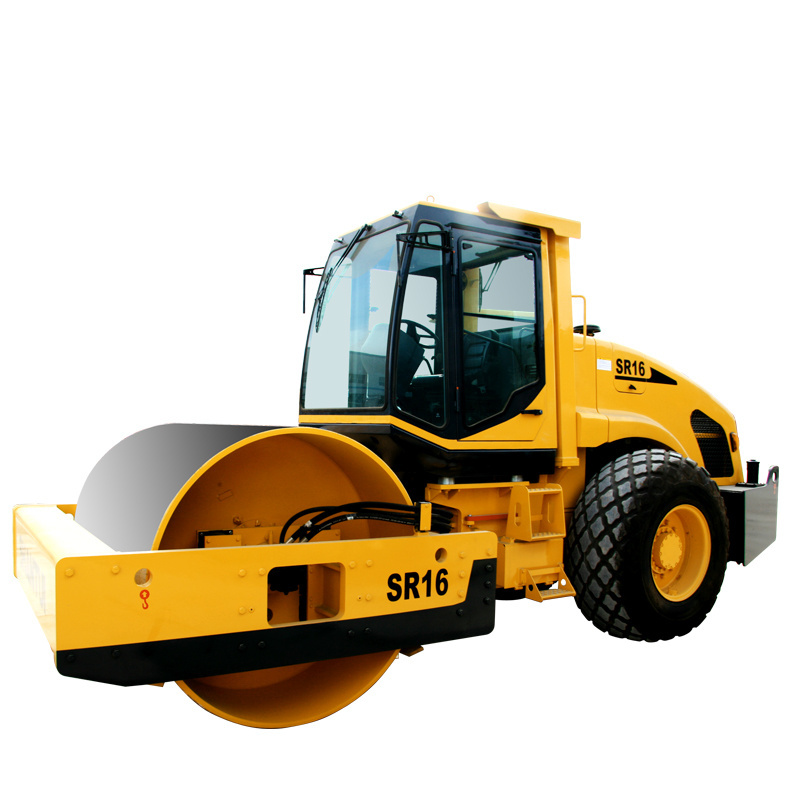

Hydraulic Single Drum Compactor Vibratory SR16 Road Rollers
.
This King of the Road is ready to crush the toughest jobs. It is a heavy, fully hydraulic vibratory roller that weighs in at 16
tons. It uses its weight and muscular vibration force to get tough jobs done efficiently. With its fully enclosed cab, optional
AC, ergonomic control system, suspension seat and hydraulically articulated steering, your operators will be lining up to drive this beast. With 154-knob 95 mm ‘sheep’s foot’ rollers added to the SR16, this 16,500 kg SR16P is ready to take on the toughest roadwork.
tons. It uses its weight and muscular vibration force to get tough jobs done efficiently. With its fully enclosed cab, optional
AC, ergonomic control system, suspension seat and hydraulically articulated steering, your operators will be lining up to drive this beast. With 154-knob 95 mm ‘sheep’s foot’ rollers added to the SR16, this 16,500 kg SR16P is ready to take on the toughest roadwork.
PRODUCT PARAMETER
|
MODEL
|
SR16
|
|
|
|
Weights
|
Operating weight
|
16000 kg
|
|
|
|
Axle load drum
|
10000 kg
|
|
|
|
Axle load wheel
|
6000 kg
|
|
|
|
Static linear load (at drum)
|
468 N/cm
|
|
|
Drum and Tires
|
Maximum working width
|
2140 mm
|
|
|
|
Drum diameter
|
1550 mm
|
|
|
|
Drum shell thickness
|
32 mm
|
|
|
|
Number of padfeet
|
—
|
|
|
|
Height of the padfoot
|
—
|
|
|
|
Tire size
|
23.1-26-8PR
|
|
|
Frequency
|
High amplitude
|
28 Hz
|
|
|
|
Low amplitude
|
32 Hz
|
|
|
Nominal amplitude
|
High
|
1.8 mm
|
|
|
|
Low
|
0.76 mm
|
|
|
Centrifugal force
|
Maximum
|
317 kN
|
|
|
|
Minimum
|
167 kN
|
|
|
Forward speed
|
I
|
0~5.9 km/h
|
|
|
|
II
|
0~9 km/h
|
|
|
|
III
|
-
|
|
|
|
IV
|
-
|
|
|
Reverse speed
|
I
|
0~5.9 km/h
|
|
|
|
II
|
0~9 km/h
|
|
|
|
III
|
-
|
|
|
|
IV
|
-
|
|
|
Maximum climbing ability
|
45%
|
|
|
|
Drive system
|
Hydrostatic
|
|
|
|
Make & model
|
6BT5.9
|
|
|
|
Type
|
Turbocharged
|
|
|
|
Fuel
|
Diesel
|
|
|
|
Fuel capacity
|
350 L
|
|
|
|
Cool
|
Water
|
|
|
|
Number of cylinders
|
6
|
|
|
|
Rated power
|
112 kW
|
|
|
|
Rated speed
|
2500 rpm
|
|
|
|
Electrical system
|
, negative ground
|
24 V
|
|
|
|
Alternator
|
28 V, 45 A
|
|
|
|
Batteries
|
–
|
|
|
Brakes
|
Service brake
|
Hydrostatic
|
|
|
|
Parking brake
|
Spring-loaded/mechanical
|
|
|
Steering
|
Steering system
|
Oscillating, articulating
|
|
|
|
Steering method
|
Hydrostatic
|
|
