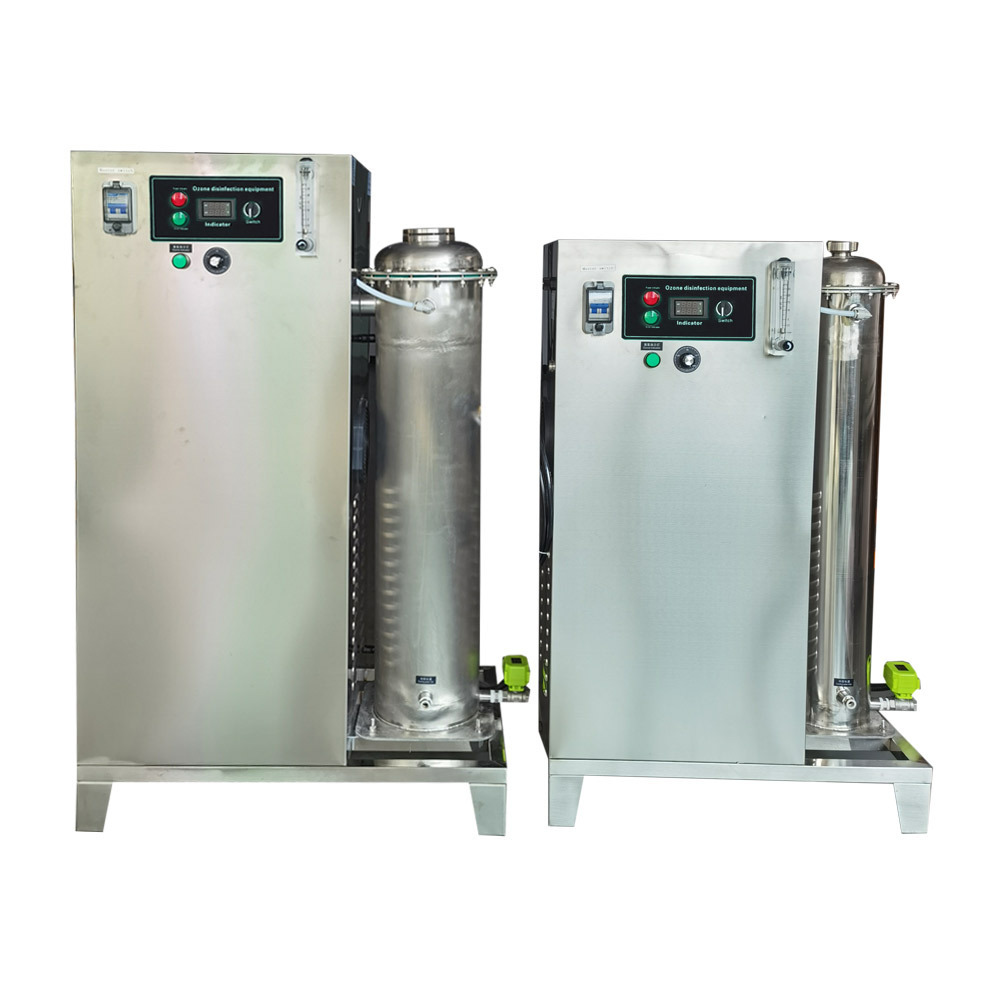

OGP-J Water Cooled Ozone Generator Feed Outside Oxygen Generator For Water Treatment
Features
:
1- Honeycomb Structure Design
2- Internal electrode : Imported material of high quality Quartz tube, external electrode : 316L stainless steel Honeycomb tower
3- Cooling way : Water cooling way
4- High O3 concentration : Ozone concentration up to 145mg/l or more under feeding O3 source; feed dry air source, O3 concentration up to 10~15mg/L
5-High Quality Power Supply ensure the service life of ozone system.
The ozone generator kit consists of three parts: ozone discharge chamber and high voltage package + drive power supply.
Features of ozone discharge chamber:
the inside of the discharge chamber is combined with multiple groups of discharge tubes, the side is close to the honeycomb structure, commonly known as the honeycomb tube in the industry, the inner and outer electrodes of the discharge tube are both 316L stainless steel, the outer shell is 304 stainless steel, and the dielectric material uses high-purity silica quartz tube 99 .8%, combined with PTFE and fluorine rubber sealing original parts, the external electrode is water-cooled, and the design service life is more than 50,000 hours.
Composition and characteristics of high-voltage power supply:
military-grade variable-frequency and variable-voltage PCB circuit and vacuum epoxy high-voltage package; main characteristics are: IGBT drive, automatic/manual bandwidth, slow start, (limiting surge current), power supply over-voltage protection power Converter overheating protection, output short circuit, open circuit protection, sound and light warning. Circuit anti-interference, moisture-proof, anti-corrosion design, and can be flexibly adapted to PLC control or different setting functions of power supply voltage according to customer requirements, normal service life is more than 12K hours
1- Honeycomb Structure Design
2- Internal electrode : Imported material of high quality Quartz tube, external electrode : 316L stainless steel Honeycomb tower
3- Cooling way : Water cooling way
4- High O3 concentration : Ozone concentration up to 145mg/l or more under feeding O3 source; feed dry air source, O3 concentration up to 10~15mg/L
5-High Quality Power Supply ensure the service life of ozone system.
The ozone generator kit consists of three parts: ozone discharge chamber and high voltage package + drive power supply.
Features of ozone discharge chamber:
the inside of the discharge chamber is combined with multiple groups of discharge tubes, the side is close to the honeycomb structure, commonly known as the honeycomb tube in the industry, the inner and outer electrodes of the discharge tube are both 316L stainless steel, the outer shell is 304 stainless steel, and the dielectric material uses high-purity silica quartz tube 99 .8%, combined with PTFE and fluorine rubber sealing original parts, the external electrode is water-cooled, and the design service life is more than 50,000 hours.
Composition and characteristics of high-voltage power supply:
military-grade variable-frequency and variable-voltage PCB circuit and vacuum epoxy high-voltage package; main characteristics are: IGBT drive, automatic/manual bandwidth, slow start, (limiting surge current), power supply over-voltage protection power Converter overheating protection, output short circuit, open circuit protection, sound and light warning. Circuit anti-interference, moisture-proof, anti-corrosion design, and can be flexibly adapted to PLC control or different setting functions of power supply voltage according to customer requirements, normal service life is more than 12K hours
Application industry:
Sewage treatment in municipal units,
Large waterworks
Waste odor treatment
Wastewater treatment in garment factories
Wastewater treatment in a pulp mill
Metallurgical industry water
Hospital sewage
Industrial ozone
Large ozone generator
Large waterworks
Waste odor treatment
Wastewater treatment in garment factories
Wastewater treatment in a pulp mill
Metallurgical industry water
Hospital sewage
Industrial ozone
Large ozone generator
PRODUCT SPECIFICATIONS
Technical parameter OGP-J60~400G
|
Item
|
Unit
|
Model
|
|
|
|
|
|
|||||
|
|
|
OGP-J60G
|
OGP-J100G
|
OGP-J150G
|
OGP-J200G
|
OGP-J300G
|
OGP-J400G
|
|||||
|
Ozone output
|
G/Hr
|
60
|
100
|
150
|
200
|
300
|
400
|
|||||
|
Oxygen flow rate
|
LPM
|
13
|
20
|
28
|
36
|
45
|
75
|
|||||
|
O3concentration (feed oxygen)
|
Mg/L
|
80~150
|
|
|
|
|
|
|||||
|
Feed air
|
LPM
|
60
|
90
|
140
|
180
|
270
|
360
|
|||||
|
O3 concentration (feed air)
|
Mg/L
|
15~30
|
|
|
|
|
|
|||||
|
Power
|
KW
|
0.5
|
1.1
|
1.25
|
1.65
|
2.6
|
3.3
|
|||||
|
Cooling method
|
/
|
Water cooling
|
|
|
|
|
|
|||||
|
Cooling water flow
|
m³/H
|
0.2
|
0.25
|
0.3
|
0.35
|
0.4
|
0.45
|
|||||
|
Water inlet&outlet
|
mm
|
1\4"
|
1\4"
|
1\2"
|
1\2"
|
1\2"
|
1\2"
|
|||||
|
Input oxygen pressure
|
Mpa
|
0.2
|
|
|
|
|
|
|||||
|
Input air pressure
|
Mpa
|
0.2
|
|
|
|
|
|
|||||
|
Input cooling water pressure
|
Mpa
|
0.2
|
|
|
|
|
|
|||||
|
Working voltage
|
V/Hz
|
110V 60HZ /220V 50HZ / 380V
|
|
|
|
|
|
|||||
|
Gas inlet & outlet
|
mm
|
8
|
8
|
8
|
1\2"
|
1\2"
|
1\2"
|
|||||
|
Pressure of gas inlet & ozone outlet
|
Mpa
|
≤ 5bar
|
|
|
|
|
|
|||||
|
Size
|
mm
|
600×300×960
|
620×320×980
|
1000×350×1100
|
1180×400×1100
|
1200×400×1200
|
1350×500×1200
|
|||||
|
weight
|
kg
|
30
|
35
|
58
|
66
|
80
|
135
|
|||||
Technical parameter OGP-J500~2000G
|
Item
|
Unit
|
Model
|
|
|
|
|||
|
|
|
OGP-J500G
|
OGP-J600G
|
OGP-J1000G
|
OGP-J2000G
|
|||
|
Ozone output
|
G/Hr
|
500
|
600
|
1000
|
2000
|
|||
|
Oxygen flow rate
|
m3/h
|
6
|
7
|
10
|
20
|
|||
|
O3concentration (feed oxygen)
|
Mg/L
|
80~150
|
|
|
|
|||
|
Feed air
|
m3/h
|
60
|
70
|
95
|
115
|
|||
|
O3 concentration (feed air)
|
Mg/L
|
15~30
|
|
|
|
|||
|
Power
|
KW
|
5.5
|
5.5
|
11
|
23
|
|||
|
Cooling method
|
/
|
Water cooling
|
|
|
|
|||
|
Cooling water flow
|
m³/H
|
0.5
|
0.6
|
1.5
|
2.5
|
|||
|
Water inlet&outlet
|
mm
|
1\2"
|
1\2"
|
1"
|
1+1/2"
|
|||
|
Input oxygen pressure
|
Mpa
|
0.2
|
|
|
|
|||
|
Input air pressure
|
Mpa
|
0.2
|
|
|
|
|||
|
Input cooling water pressure
|
Mpa
|
0.2
|
|
|
|
|||
|
Working voltage
|
V/Hz
|
110V 60HZ /220V 50HZ / 380V
|
|
|
|
|||
|
Gas inlet & outlet
|
mm
|
1\2"
|
1\2"
|
1"
|
1"
|
|||
|
Pressure of gas inlet & ozone outlet
|
Mpa
|
≤ 5bar
|
|
|
|
|||
|
size
|
mm
|
1400×600×1200
|
1500×600×1200
|
1600×800×1500
|
7m2×H1.5m
|
|||
|
nw weight
|
kg
|
150
|
180
|
260
|
1400
|
|||
