Transflective LCD Display 1602 Display 16x2 COG LCD Module
-
Display mode:
-
STN, Positive, Transflective
-
Display format:
-
16x2
-
Viewing Angle:
-
6 O'clock
-
Driver IC:
-
SPLC782A1
-
Diver method:
-
1/16 duty, 1/5 bias
-
Module Size:
-
69(W) x18(H) x0.7(T) mm
-
Viewing Area:
-
64.5(W) x15(H) mm
-
Working Tempe:
-
-20℃~+70℃
Quick Details
-
Type:
-
COG
-
Display Size:
-
16x2
-
Supplier Type:
-
factory manufacture
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Formike
-
Product Name:
-
Transflective LCD Display 1602 Display 16x2 COG LCD Module
-
Display mode:
-
STN, Positive, Transflective
-
Display format:
-
16x2
-
Viewing Angle:
-
6 O'clock
-
Driver IC:
-
SPLC782A1
-
Diver method:
-
1/16 duty, 1/5 bias
-
Module Size:
-
69(W) x18(H) x0.7(T) mm
-
Viewing Area:
-
64.5(W) x15(H) mm
-
Working Tempe:
-
-20℃~+70℃

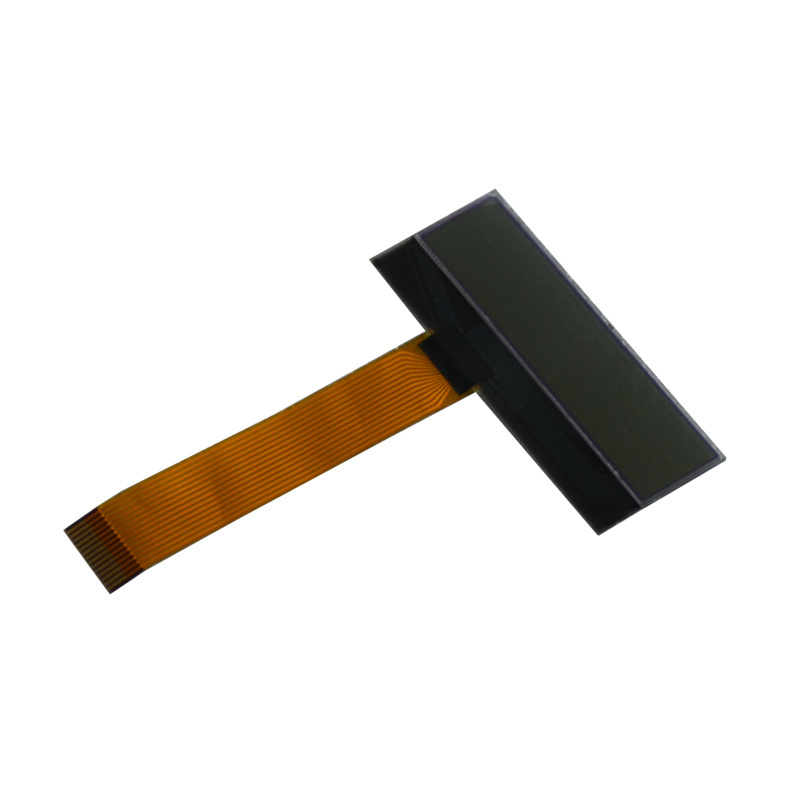

Transflective LCD Display 1602 Display 16x2 COG LCD Module
| LCD Name | Transflective LCD Display 1602 Display 16x2 COG LCD Module | ||
|
Display Format
|
16character*2 line |
Display Mode
|
STN, Positive, Transflective(P3) |
|
LCD Color
|
Display dot : Black
Background: White |
Driver IC |
SPLC782A1-016A-C |
|
Outline Dimension |
69.0(W) x103 .0(H) x 2.85(T) mm
|
Viewing Area
|
64.5(W) x15(H)mm |
|
Viewing Direction |
6 O’clock |
Interface Input Data
|
4 bit or 8 bit interface |
|
Backlight |
Na |
Driving Method
|
1/16 Duty, 1/5 Bias
|
|
Operating Temp.
|
-20℃~+70℃
|
Storage Temp.
|
-30℃~+80℃ |
|
|
| Model | WC1602A1SGW6B-D | WC2004A2SKY6B-D | WC2004Y3SGW7B-T | WC0802Z3SAN1B |
| Picture | ||||
| Display Mode |
STN, Negative,Transmissive Character, COB |
STN,
Positive, Transflective Character , CO B |
STN, Negative,Transmissive Character , CO B |
STN, Positive,Reflective Character , CO B |
| Display format | 16x2 | 20 x4 | 20x4 | 8x2 |
| Viewing Direction | 6 O’clock | 6 O’clock | 12 O’clock | 6 O’clock |
| Color |
Display dot : White Background:Blue Backlight :White |
Display dot :Black
Background:White Backlight :Yellow-Green |
Display dot :
White
Background: Black Backlight :White |
Display dot :Black
Background: Yellow-Green Backlight :Without |
| Module Size (mm) | 80.0x36.0x12.5 | 98.0x60.0x14.2 | 146x62.5x14.0 | 58.00*32.00*8.9 |
| Viewing Area (mm) | 64.5(W) x16(H) | 76W) x25.8(H) | 123(W) x43(H) | 38.0 (W)*16.0(H) |
| Dot Pitch(mm) | 0.6(W) X 0.7(H) | 0.60(W) X 0.60(H) | 0.93(W) X 1.1(H) | 0.56(W) X 0.66(H) |
| Interface | 4-bit or 8-bit MPU | 4-bit or 8-bit MPU | 8 bit or 4 bit 6805 or Z80 | 4-bit |
