Packing
1 x Mini PC 1 x Power supply (adapter and cord)1 x VESA bracket & screws
1 x color box
* Power cord options: EU/ SA/ AU/ US/ CH Type
* Dual antennas if you buy Wi-Fi
* If you need neutral packaging box, tell us in advance.
* Contact us if you need Motherboard User Manual and Windows drivers.
- Product Details
- {{item.text}}
Quick Details
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KANSUNG
-
Model Number:
-
K1077X
-
Video Memory:
-
Integrated
-
Product Name:
-
Mini PC Computer
-
RAM:
-
DDR4 4G/8G/16G/32GB
-
CPU:
-
Intel 10th Core i7 10710U processor 1.1GHz Up to 4.9GHz
-
Support AES-NI:
-
Yes
-
Memory:
-
Support DDR4L RAM
-
Hard Disk:
-
Support 2.5-inch SATA HDD/SSD
-
WIFI:
-
Support M.2 WiFi
-
Dimension:
-
217 x 122 x 62mm
-
OS:
-
Linux/win10
Quick Details
-
Use:
-
For Business
-
Hard Drive Type:
-
SSD+HDD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KANSUNG
-
Model Number:
-
K1077X
-
Video Memory:
-
Integrated
-
Product Name:
-
Mini PC Computer
-
RAM:
-
DDR4 4G/8G/16G/32GB
-
CPU:
-
Intel 10th Core i7 10710U processor 1.1GHz Up to 4.9GHz
-
Support AES-NI:
-
Yes
-
Memory:
-
Support DDR4L RAM
-
Hard Disk:
-
Support 2.5-inch SATA HDD/SSD
-
WIFI:
-
Support M.2 WiFi
-
Dimension:
-
217 x 122 x 62mm
-
OS:
-
Linux/win10
Product Description
|
CPU
|
Intel 10th Core i5 10710U processor 1.1GHz Up to 4.7GHz, 12M Cache
|
|
|
CPU TDP
|
15W
|
|
|
Memory
|
1 x DDR4 SO-DIMM Socket (Up to 64G, 2133/2666MHz)
|
|
|
Chipset
|
By CPU
|
|
|
Graphics
|
Intel® UHD Graphics
|
|
|
LAN Chipset
|
2 x Intel I225V 2.5G LAN
|
|
|
Watch Dog
|
Yes
|
|
|
Front I/O
|
|
|
|
Power Button
|
1
|
|
|
USB
|
2 x USB 2.0
|
|
|
LED
|
1 x Power LED, 1 x HDD LED
|
|
|

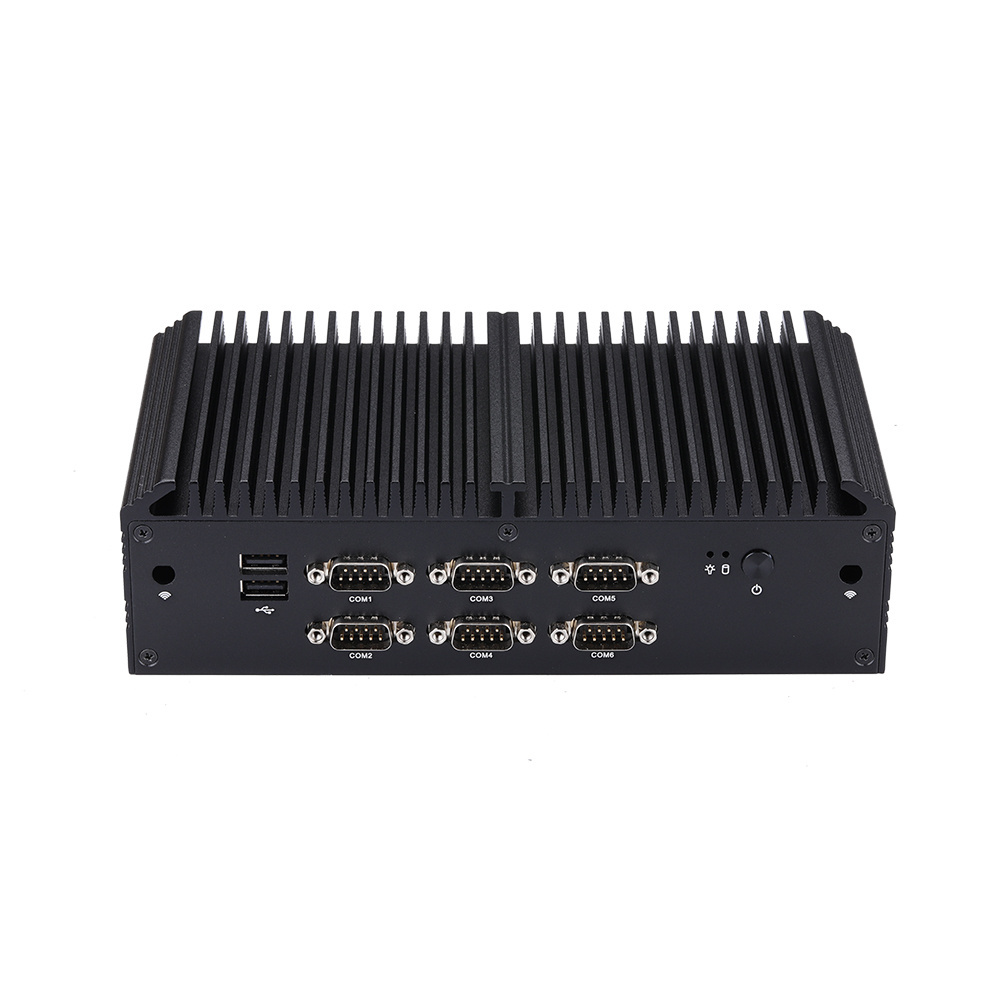

Serial Port
|
6 x RS-232
|
|
|
Rear I/O
|
|
|
|
Power
|
1 x DC Jack
|
|
|
Video Output
|
1 x DP, 1 x HD, 1 x VGA
|
|
|
LAN
|
2 x RJ-45 Port for 2.5 Gigabit LAN
|
|
|
USB
|
4 x USB 3.0, 2 x USB 2.0
|
|
|
Audio
|
2 (Mic-in, Line-out)
|
|
|
PS/2
|
1 x PS/2
|
|
|
Storage
|
|
|
|
Type
|
1 x 2.5-inch HDD/SSD 1 x M key M.2 for SSD (2280mm)
|
|
|
OS
|
For Windows 10, Linux
|
|
|
Expansion
|
|
|
|
Mini-PCIe
|
1 x Mini PCIe Full-length for 4G, Half-length for Wi-Fi Only Support USB Device
|
|
|
M.2
|
1 x M.2 for SSD (M key, 2280) 1 x M.2 for Wi-Fi (E key, 2230)
|
|
|
SIM Card Slot
|
1
|
|
|
Automatically Boot Jumper
|
1 x 2.54 Pitch Header
|
|
|
COMS Clear Jumper
|
1 x 2.54 Pitch Header
|
|
|
GPIO
|
1 x 2.0 Pitch Header
|
|
|
RS-485
|
2
|
|
|
Power Requirement
|
|
|
|
Power Adapter
|
12V4A
|
|
|
DC Jack
|
5.5mm,2.5mm
|
|
|
Mechanical
|
|
|
|
Material
|
Aluminum
|
|
|
Dimension
|
217 x 122 x 62mm
|
|
|
Weight
|
2.5kg
|
|
|
Mounting
|
VESA Mounting Bracket
|
|
|
Packaging Dimension
|
285 x 260 x 93mm
|
|
|
Kensington Lock
|
No
|
|
|
Cooling Mode
|
Fanless Design
|
|
Packing & Delivery
______________________________________________________________________________________________________________________
Delivery
1. DHL/UPS/FEDEX EXPRESS and EMS are workable, and DHL would be preferred as the first choice. If you’d like other shipment terms,
contact us, pls!
2. The goods will be sent out within 3 working days after the full payment has been confirmed.
3. It usually takes 3 to 5 working days to the destination by DHL/UPS and FEDEX EXPRESS. And it’s about 8 to 14 working days by
EMS.
PAYMENT
1.T/T, Moneygram, paypal and Western Union are acceptable and optional. If you ‘d like other payment terms, contact us, pls!
2. Full payment must be made within 7 days after placing the order. If not, the order will be invalid and canceld by the system.
3. Make sure all the detailed buyer information have been correctly and completely filled in.
WARRANTY
2.We assure you that all the mini pc and accessories have been tested before delivery.
3.If the products do not work well, contact us, pls! We will try to figure out workable solutions with our professional team.
