Quick Details
-
CPU:
-
KunT11 4Cores Cortex-A53 2.0Ghz
-
RAM:
-
2 GB
-
SSD:
-
16GB
-
Operation System:
-
Android 9.0
-
Compatible Devices:
-
Android
-
printer technology:
-
NONE
-
Place of Origin:
-
Guangdong, China
-
Certifications/Compliance:
-
CE/FCC/RoHS
-
Connectivity:
-
RS232 Ethernet USB USB TypeC WiFi GPS Barcode Scanner
-
Standard:
-
ISO-14443 A & B part 1-4
-
Operating Distance:
-
Up to 50 mm
-
Other Features:
-
Real Time Clock
-
SAM Card Interface:
-
ISO/IEC 7816 Class A B (5V 3V 1.8V)
-
Warranty:
-
1 Year
-
Standard model:
-
4G +WIFI+Ethernet +4PSAM+2D Barcode module
-
Supply Voltage:
-
9-48 V DC
-
Face recognition:
-
Dual Camera Optional
Quick Details
-
Model Number:
-
P18-Q
-
Country of Origin:
-
CHINA
-
Brand Name:
-
HCCTG
-
CPU:
-
KunT11 4Cores Cortex-A53 2.0Ghz
-
RAM:
-
2 GB
-
SSD:
-
16GB
-
Operation System:
-
Android 9.0
-
Compatible Devices:
-
Android
-
printer technology:
-
NONE
-
Place of Origin:
-
Guangdong, China
-
Certifications/Compliance:
-
CE/FCC/RoHS
-
Connectivity:
-
RS232 Ethernet USB USB TypeC WiFi GPS Barcode Scanner
-
Standard:
-
ISO-14443 A & B part 1-4
-
Operating Distance:
-
Up to 50 mm
-
Other Features:
-
Real Time Clock
-
SAM Card Interface:
-
ISO/IEC 7816 Class A B (5V 3V 1.8V)
-
Warranty:
-
1 Year
-
Standard model:
-
4G +WIFI+Ethernet +4PSAM+2D Barcode module
-
Supply Voltage:
-
9-48 V DC
-
Face recognition:
-
Dual Camera Optional
Product Description
General

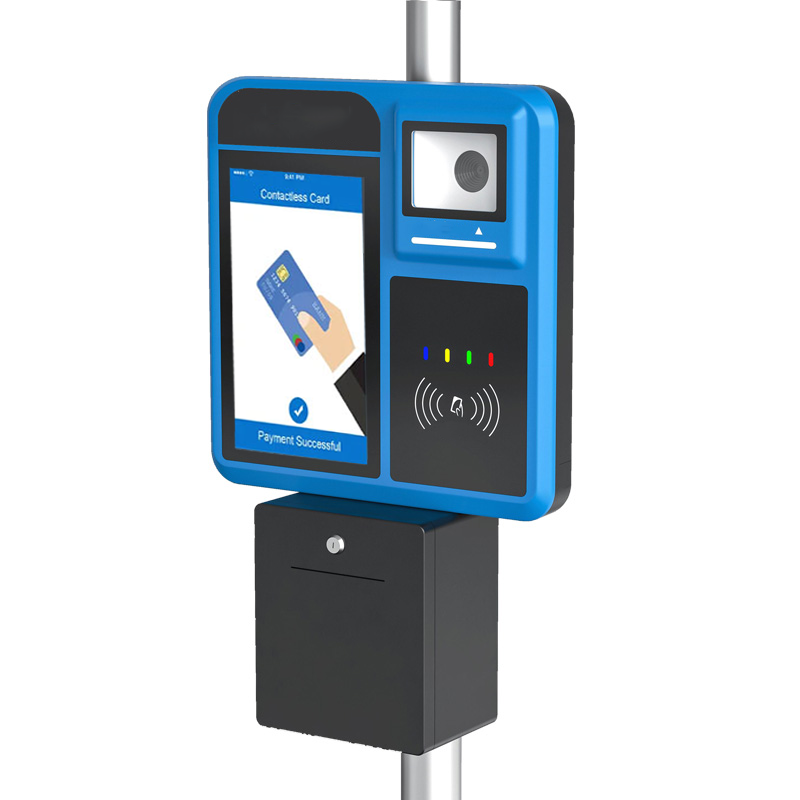

The industrial level terminal P18-Q Bus Validator with robust design for long-term front-line use supports all smart cards compliant. P18-Q is designed with pole mount kit with quick release mechanism for easy access for bus payment which with complex unstable environment.
|
Android 9.0，600×1024 TFT color screen
|
|
LED Status Indicators
|
|
4 LED from left to right blue, yellow, green, red, controllable
|
|
2 LED in the back from top to bottom green, red, controllable
|
|
4 function keys (F1, F2, F3, F4)
|
|
Support power switch
|
|
Built-in buzzer/audio speaker
|
|
Contactless smart card interface
|
|
Support RS232 Interface
|
|
Support Ethernet / USB/USB TypeC Interface
|
|
Processor
|
KunT11,4Cores Cortex-A53,2.0Ghz
|
|
Ethernet
|
Built-in 10/100-base-T with RJ45 connector
|
|
WiFi
|
IEEE 802.11 b/g/n/ac
|
|
GPS
|
Supported
|
|
Bluetooth (Optional)
|
BT4.0 + BR/EDR + BLE
|
|
Barcode Scanner
|
1D/2D/QR Code Barcode Scanning
|
|
LCD Display
|
600×1024 TFT LCD display with backlight, 6.95 inch (optional touch screen)
|
|
Speaker/Buzzer
|
Supported
|
|
LED Status Indicators
|
4 LEDs for indicating status (from left most: blue, yellow, green, red)
|
|
Work Conditions
|
Temperature: -40°C ~80°C
Humidity: 5% to 93%, non-condensing |
