Quick Details
-
Brand Name:
-
SYBR
-
Model Number:
-
MG400
-
Place of Origin:
-
Shanghai, China
-
Weight:
-
1.8 kg
-
Width:
-
63 mm
-
Inside Diameter:
-
19 mm
-
Outside Diameter:
-
77 mm
-
Inner Race:
-
2600 r/min
-
Outer Race:
-
800 r/min
-
Torque Capacity:
-
539 Nm
-
Standard lubrication:
-
Oil
-
Material:
-
Chrome Steel GCr15
Quick Details
-
Type:
-
bearing
-
Precision Rating:
-
P2, P5, P0, P4, P6
-
Seals Type:
-
open, Standard
-
Brand Name:
-
SYBR
-
Model Number:
-
MG400
-
Place of Origin:
-
Shanghai, China
-
Weight:
-
1.8 kg
-
Width:
-
63 mm
-
Inside Diameter:
-
19 mm
-
Outside Diameter:
-
77 mm
-
Inner Race:
-
2600 r/min
-
Outer Race:
-
800 r/min
-
Torque Capacity:
-
539 Nm
-
Standard lubrication:
-
Oil
-
Material:
-
Chrome Steel GCr15
PRODUCT DESCRIPTION

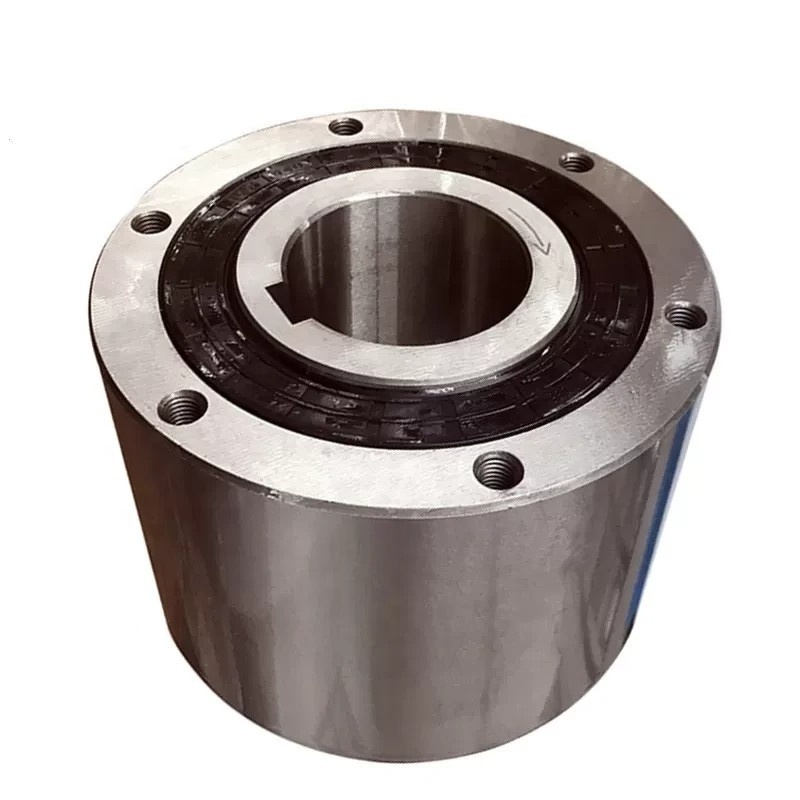

Cam Clutch MI MG One Way Clutch Bearing
2. For attaching a pulley, a gear, or sprocket to the clutch, insert the clutch into the hub of the device, and screw the bolts
(high tension) into the tapped holes on the clutch end. The tolerance bore of the hub should be H6 or H7 of JIS standard
3. Recommended shaft tolerances are as follows:
4. The key should be in accordance with JIS B1301-1959. However, for M750 and above models, a key is attached.
5. Use only a parallel key to secure the clutch. Never use a tapered key.
6. If the clutch receives shock loads or is designed for use at full torque capacity, it is better to use a
hardened key and shaft.
7. Allow for a clearance between the top of the clutch keyway and the top of the key for pressure ventilation of the clutch in the
case of MG Series. A pressure ventilation hole is provided on the keyway of the clutch inner race.
8. When mounting the clutch on a shaft, apply pressure to the inner race, but never to the outer race.
9. Thrust load should be taken up by other devices, not by the Cam Clutch.
10.When using MG Series at medium and high speeds, pay attention to heating. Longevity is shortened if
the temperature of Cam Clutch outer race rises to over 70°C. In case of continuous over running
Please contact Tubaki. In this case, use a different model or provide an oil bath or forced lubrication.
11.Oil is not sealed in at the time of shipment. Supply an appropriate amount of oil before use.
12.When placing an order for MG Series Cam Clutch model MG 750 and above, please inform of the overrunning speed you use.
13.For vertical mounting, please consult .
|
Main specifications |
|
|
Item Number |
MG400 |
|
Category |
Freewheel Backstop One Way Clutch Bearing |
|
Seal |
Steel Seal |
|
Weight and Dimensions |
|
|
Inside Diameter |
19 mm |
|
Outside Diameter |
77 mm |
|
Width |
63 mm |
|
Weight |
1.8 kg |
|
Product Properties |
|
|
Cage Type |
S - Steel or Standard Cage |
|
Precision |
Standard Precision |
|
Inner Race |
2600 r/min |
|
Outer Race |
800 r/min |
|
Bearing Material |
Chrome steel/GCR-15 |
|
Precision Rating |
P5 |
|
Structure |
Clutch Release Bearing |
|
Standard lubrication |
Oil |
OTHER ONE-WAY CLUTCH BEARING SERIES
This is only a small part modle number of one-way clutch bearing we have, if you fail to find the one you need, please contact us directly. Thanks in advance.
