Quick Details
-
Dimension(L*W*H):
-
1260x1600x1000mm
-
Weight (T):
-
2 T
-
Power (kW):
-
60
-
Maximum load capacity:
-
10L
-
Maximum heating rate:
-
200 C/min.
-
Frequency:
-
4000hz
-
Limit vacuum:
-
1.2x10-3 mbar
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
CYKY
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
1260x1600x1000mm
-
Weight (T):
-
2 T
-
Power (kW):
-
60
-
Maximum load capacity:
-
10L
-
Maximum heating rate:
-
200 C/min.
-
Frequency:
-
4000hz
-
Limit vacuum:
-
1.2x10-3 mbar

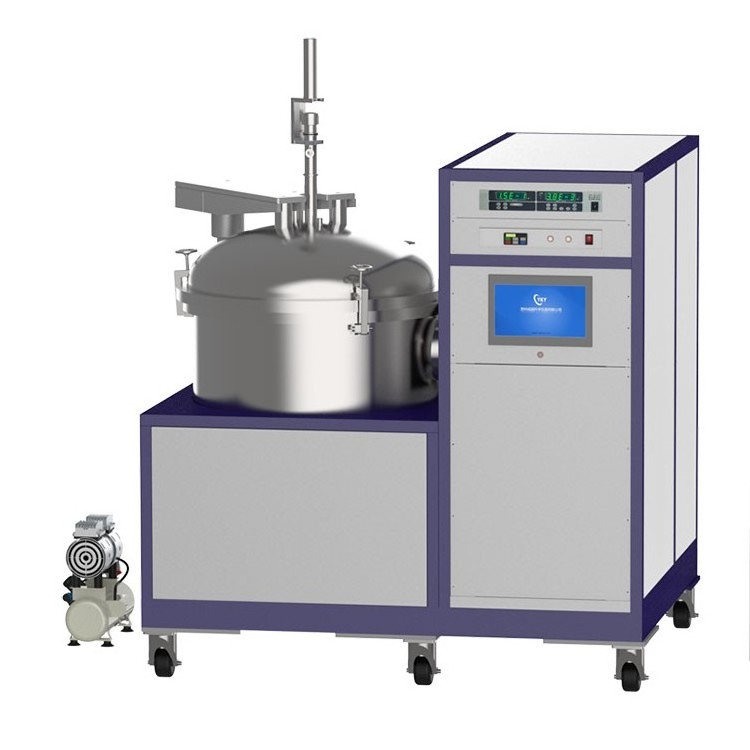

Experimental graphitization furnace application
Carbon materials, synthetic graphite film (polyimide graphite sheet abbreviated as PI film), thermal conductivity materials, carbon fiber ropes, carbon fibers, carbon/carbon composite materials, graphene heat treatment, lithium battery anode material heat treatment, vapor growth carbon fiber anode material treatment, carbon Nanotube purification and iron removal process, high-temperature ceramic sintering, and other materials that need to be sintered or melted in the graphite hot zone (carbon-containing environment).
Performance characteristics
1. Maximum long-term continuous working temperature: 3000℃ (more than 12 hours)
2. Maximum design temperature: 3200℃ (maximum temperature continuous time <2 hours)
3. Working atmosphere in the furnace: nitrogen, argon
4. Furnace size: conventional spot Φ200×300mm (internal charging space)
5. Rated output power: 60KW, the actual power used is not more than 50KW
6. Rated intermediate frequency: 4000Hz
7. Temperature measurement method: two-color infrared temperature measurement instrument and equipment
8. Temperature measurement range: 1000-3200℃, (when measuring the temperature in the full range of 0-3200℃, please specify when ordering, the standard configuration starts at 1000℃)
9. Temperature control method: automatic program temperature control
10. Equipment use: high temperature graphitization
11. Cooling water consumption: 6~10m3/h
12. Cooling water pressure: 0.15~0.25MPa
13. Water quality of internal circulating water: distilled water or purified water
14. Power supply grid: three-phase five-wire system 380V, 50Hz/60Hz
15. Cooling protection: using flow, pressure, water temperature to implement multiple protections for cooling water, etc.
16. Limit heating speed: less than 60 minutes.
Technical Parameter
|
Model |
CY-GF20/30VT |
|
Maximum working temperature |
3200°C 3000°C(continuously working) |
|
Dia.*H(mm) |
Φ200×300 |
|
Maximum load capacity(L) |
10L |
|
Temperature uniformity (ΔT 1000°C - 2200°C) |
±10°C |
|
Maximum heating rate (CEDRT) |
200 °C/min. |
|
Heating power |
80 KW |
|
Frequency |
4000hz |
|
Limit vacuum (CEDRT) |
1.2×10-3 mbar |
|
Optional high vacuum (CEDRT) |
5×10-5 mbar |
|
Pressure rising |
6.7×10-3 mbar/hr |
|
Working atmosphere |
High vacuum / vacuum / inert gas Ar or N2 |
|
Voltage |
3P, 380V, 50Hz/60Hz(customized) |
|
Cooling water pressure |
1.5~2.5 bar |
|
Cooling water temperature |
≤28°C |
|
Dimension (mm) |
1450*2760mm |
|
Weight (kg) |
1500KG |
