Quick Details
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
hontop
-
Model:
-
FOTON G9
-
Place of Origin:
-
CHINA
-
Dimensions (L x W x H) (mm):
-
5400X1920X2490mm
-
Box Dimensions (L x W x H) (mm):
-
3030X1615X1500mm
-
Temperature Range:
-
-20-6
-
Product name:
-
Food Freezer Ice Cream Reefer Truck Refrigerator Truck with ISUZU
-
Chassis brand:
-
HOWO.DongFeng.FAW.Foton.JAC.Shacman,ISUZU
-
Wheelbase:
-
3110mm
-
Application:
-
Transport Freezer Food ICE CREAM
-
Drive type:
-
4x2 RHD/LHD Drive
-
Loading capacity:
-
0.5ton,1ton,1.5 ton,3ton,8ton,10ton,14ton,15ton,20ton
-
Refrigeration unit:
-
Chinese Brand Optional
-
Material:
-
Glass Fiber Reinforced Plastics
-
Advantages:
-
Cold Chain Transportation
-
Panel Thickness(mm):
-
85 ~ 105 Mm
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 6
-
Gross Vehicle Weight:
-
3000
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
hontop
-
Model:
-
FOTON G9
-
Place of Origin:
-
CHINA
-
Dimensions (L x W x H) (mm):
-
5400X1920X2490mm
-
Box Dimensions (L x W x H) (mm):
-
3030X1615X1500mm
-
Temperature Range:
-
-20-6
-
Product name:
-
Food Freezer Ice Cream Reefer Truck Refrigerator Truck with ISUZU
-
Chassis brand:
-
HOWO.DongFeng.FAW.Foton.JAC.Shacman,ISUZU
-
Wheelbase:
-
3110mm
-
Application:
-
Transport Freezer Food ICE CREAM
-
Drive type:
-
4x2 RHD/LHD Drive
-
Loading capacity:
-
0.5ton,1ton,1.5 ton,3ton,8ton,10ton,14ton,15ton,20ton
-
Refrigeration unit:
-
Chinese Brand Optional
-
Material:
-
Glass Fiber Reinforced Plastics
-
Advantages:
-
Cold Chain Transportation
-
Panel Thickness(mm):
-
85 ~ 105 Mm
Product Description

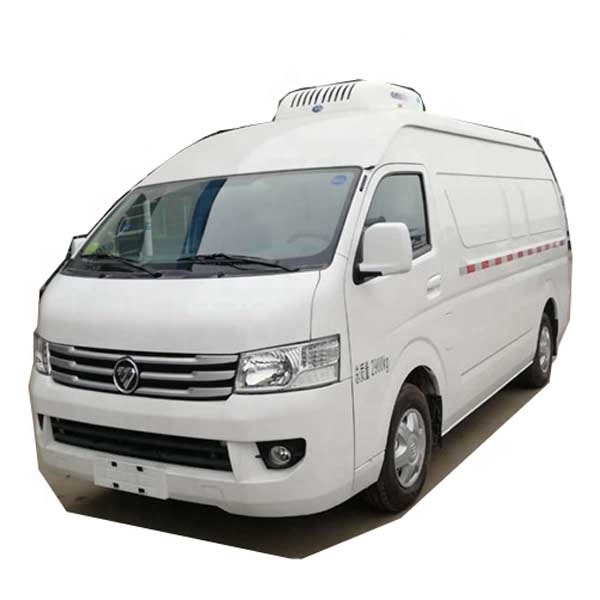

FOTON G9 Small Food Ice Cream Medical Reefer Truck Mini Freezer Van Vehicle refrigerator trucks
The Refrigerator truck (also called reefer truck,refrigerated van,refrigerator wagon,refrigerated truck, refrigerated boxcar,vaccine delivery truck, refrigerated vans, food refrigerated truck,Medical waste refrigerated truck,freezer vehicle, freezer wagon, freezer box truck,refrigerator cooling van,temperature controlled truck, refrigerator car, preservation vehicle) is used to carry perishable stuff at special temperatures,such as frozen foods, seafood,fresh fruit and vegetables, vaccine medicine, medical waste and so on.
Refrigeration truck includes truck chassis,insulated heat preservation box body (polyurethane material, fiber glass, color plate,stainless steel plate,etc), refrigeration units, cabin temperature controller and so on. For special required trucks such as meat hook refrigeration truck, there can also add meat hooks,guide rail, aluminium alloy guide, Fixed cargo slot,ventilating slot,2-compartment (one fresh and another frozen box),and so on.
Famous chassis such as ISUZU, Dongfeng, Foton, FAW, JAC, JMC, Sinotruk Howo,Shacman,etc.
Refrigeration Truck Insulated box body : "sandwich" type structure Fiberglass+PU+fiberglass (FRP+PU+FRP) ,All the double surface sandwich polyurethane panel and door are 85-100mm thickness, the Fiber glass plate is for the outer and inner skins;The padding material is polyurethane foam that
has super temperature preservation ability with varieties of thickness options.The polyurethane foam density is 45-50kg/m 3. (All is the best material in China and have excellent insulation performance) . The hardware (door frame, hinge, lock, handle) are made of 304 stainless steel, and wrap angle are aluminum alloy.Sandwich panel thickness can be changed according to customers' requirements：60mm, 80mm, and 100mm.
Refrigeration units : famous refrigeration units, Thermo King&Carrier ,K series,KAILI,HANXUE,etc.Independent type refrigeration units and dependent type refrigeration units( two types of power driving ways-one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit).
Hontop can supply reefer van trucks wih capacity from 1Ton,2Ton, 3.2Ton, 4Ton, 5Ton,6.3Ton,8Ton, 10Ton,12Ton,14Ton,16Ton,25Ton.
Temperature range from +7°C,+6 °C, +5 °C, +2°C, -10°C, -15°C,-18 °C, -20°C,-25°C.
Our frigerator truck also have side-door,Straight line guide rail,Butt joint guiderail,5-sided ventilation slot,etc.
The Refrigerator truck (also called reefer truck,refrigerated van,refrigerator wagon,refrigerated truck, refrigerated boxcar,vaccine delivery truck, refrigerated vans, food refrigerated truck,Medical waste refrigerated truck,freezer vehicle, freezer wagon, freezer box truck,refrigerator cooling van,temperature controlled truck, refrigerator car, preservation vehicle) is used to carry perishable stuff at special temperatures,such as frozen foods, seafood,fresh fruit and vegetables, vaccine medicine, medical waste and so on.
Refrigeration truck includes truck chassis,insulated heat preservation box body (polyurethane material, fiber glass, color plate,stainless steel plate,etc), refrigeration units, cabin temperature controller and so on. For special required trucks such as meat hook refrigeration truck, there can also add meat hooks,guide rail, aluminium alloy guide, Fixed cargo slot,ventilating slot,2-compartment (one fresh and another frozen box),and so on.
Famous chassis such as ISUZU, Dongfeng, Foton, FAW, JAC, JMC, Sinotruk Howo,Shacman,etc.
Refrigeration Truck Insulated box body : "sandwich" type structure Fiberglass+PU+fiberglass (FRP+PU+FRP) ,All the double surface sandwich polyurethane panel and door are 85-100mm thickness, the Fiber glass plate is for the outer and inner skins;The padding material is polyurethane foam that
has super temperature preservation ability with varieties of thickness options.The polyurethane foam density is 45-50kg/m 3. (All is the best material in China and have excellent insulation performance) . The hardware (door frame, hinge, lock, handle) are made of 304 stainless steel, and wrap angle are aluminum alloy.Sandwich panel thickness can be changed according to customers' requirements：60mm, 80mm, and 100mm.
Refrigeration units : famous refrigeration units, Thermo King&Carrier ,K series,KAILI,HANXUE,etc.Independent type refrigeration units and dependent type refrigeration units( two types of power driving ways-one is powered by vehicle engine through PTO, the other is driven by a separately carried power unit).
Hontop can supply reefer van trucks wih capacity from 1Ton,2Ton, 3.2Ton, 4Ton, 5Ton,6.3Ton,8Ton, 10Ton,12Ton,14Ton,16Ton,25Ton.
Temperature range from +7°C,+6 °C, +5 °C, +2°C, -10°C, -15°C,-18 °C, -20°C,-25°C.
Our frigerator truck also have side-door,Straight line guide rail,Butt joint guiderail,5-sided ventilation slot,etc.
Specification
|
item
|
value
|
|
|
Vehicle Name
|
FOTON G9 Small Food fish ice cream Reefer Refrigerator Truck
|
|
|
Chassis brand
|
Foton
|
|
|
Whole Vehicle Size
|
5400X1900X2500mm
|
|
|
Cargo Box size
|
30300×1615×1500mm
|
|
|
GVW
|
3000KG
|
|
|
Curb weight
|
2300kg
|
|
|
Cab seat
|
2,2+2,2+3person
|
|
|
Air Conditoner
|
Yes
|
|
|
Fuel type
|
Gasoline
|
|
|
Engine Model
|
4K22D4M
|
|
|
Engine brand
|
Mitsubishi
|
|
|
Power
|
161HP
|
|
|
Emission Standard
|
Euro 6
|
|
|
Drive Type
|
4X2
|
|
|
Transmission
|
5-Speed gearbox, Manual
|
|
|
Wheelbase(mm)
|
3110MM
|
|
|
Tyre Specification
|
185/70R15
|
|
|
Tyre No.(pcs)
|
4+1
|
|
|
Max Speed(km/h)
|
110
|
|
|
Paint
|
as your required
|
|
|
Superstructure
|
|
|
|
Refrigeration Unit Brand
|
Thermo King&Carrier
,K series, KAILI,HANXUE,etc
|
|
|
Temperature
|
+7°C
,+6
°C
，
+2°C， -10°C， -15°C，-1
8
°C,
-20°C， -25°C
|
|
|
Volume
|
7.4m3,0.5-1ton
|
|
|
Structure
|
Fiberglass+PU+fiberglass (FRP+PU+FRP)
Stainless steel lock, door and hinge
Rear double door |
|
|
Body thickness
|
Roof/floor panel:105mm thickness
Front/Side/Rear door panel:85mm thickness
|
|
|
Rear door type
|
Full Size Double Opening Rear Door, Right Hand Rear Door Open First
|
|
|
Side door
|
Optional,Single/double opening option,Quantity optional,
Size can customized |
|
|
Optional functions
|
Fixed partition compartment, movable partition compartment
Multi-temperature system
Heater Ventilation slot,meat hook,guiderail,etc |
|
|
Other
|
Temperature and humidity recorder
Adjustment and display of temperature |
|
Details Images
Additional Function:
Side-door
5-side ventilation slot
straight line guiderail
Butt joint guiderail
Movable or fixed partition compartment
Butt joint guiderail
USA CARRIER Refrigeration Unit
USA THERMO KING Refrigeration Unit
Packing & Delivery
Ro-Ro,Bulk,All vehicles have been waxed before shipment
