Quick Details
-
Dimension (L*W*H):
-
1000x665x185
-
Weight:
-
94
-
color:
-
Customers' Demand
-
OEM/ODM:
-
Accepatable
-
MOQ:
-
1 Pcs
-
Protection:
-
IP65 Protection
Quick Details
-
Model Number:
-
Wall mounted battery
-
Brand Name:
-
HSHX
-
Place of Origin:
-
Henan, China
-
Dimension (L*W*H):
-
1000x665x185
-
Weight:
-
94
-
color:
-
Customers' Demand
-
OEM/ODM:
-
Accepatable
-
MOQ:
-
1 Pcs
-
Protection:
-
IP65 Protection
Products Description
our product use stored solar energy to power your home during an outage, recharge with solar energy you produce, keep appliances running seamlessly. This service is a compact home Lithium Ion battery that reduces your reliance on the grid by storing your solar energy for use when the sun is not shining.
Features：
1, Safe and reliable lithium ion phosphate battery cell;
2, Built-in intelligent BMS protection system;
3, Compatible with most of the inverter brands;
4, Compact size and light weight for easy installation;
5, Neat and safe wiring;
6, Longer cycle life 5000 times;
7, Support up to 16 units in parallel;
8, Wider Temperature Range : -10℃~60℃.
9, With LCD display function, can show the SOC and working status of the battery.
|
PROJECT
|
PARAMETER
|
|
||
|
Battery pack nominal voltage
|
51.2V
|
16 strings
|
||
|
Battery pack nominal capacity
|
180Ah
|
0.2C
|
||
|
Charging cut-off voltage
|
58.4V
|
Monomer 3.65V
|
||
|
Discharge cut-off voltag
|
40V
|
Monomer 2.5V - adjustable
|
||
|
Charging current
|
100A
|
Maximum limit current-20A
|
||
|
Discharge current
|
100A
|
Continuous working current
|
||
|
Resistance
|
≤25mΩ
|
|
||
|
Over-charge voltage protection
|
58.4V
|
|
||
|
Over-discharge voltage protection
|
40V
|
|
||
|
Charge over-current protection
|
105A
|
|
||
|
Discharge over-current protection1
|
105A
|
|
||
|
Discharge over-current protection2
|
≥150A
|
|
||
|
Short-circuit protection
|
6-way
|
|
||
|
Hardware circuit breaker
|
125A
|
|
||
|
Using environment
|
|
|
||
|
Working temperature
|
-10℃~60℃
|
|
||
|
Storage transportation temperature
|
-20℃~55℃
|
|
||
|
Relative humidity
|
95%
|
|
||
|
Atmospheric pressure
|
70kPa-106kPa
|
|
||
Product Details
More stable sine wave output
The DC / AC conversion rate of the battery is 97.8% , and the sine wave current output is stablewithout causing damage to the electrical equipment , making it safer

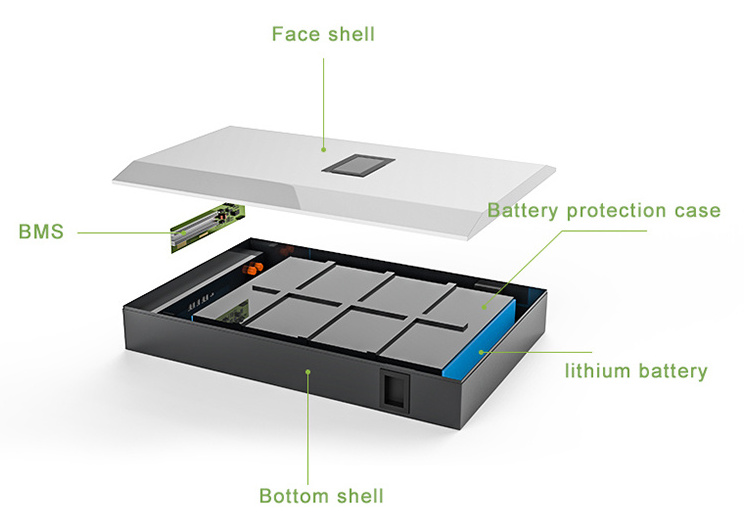

Each battery with independent BMS system manages power output smartly and effectively
Our Advantages
Application area
Product show
Equipped with first class design, bring stable and reliable operation to the equipment
Why Choose Us
We have extensive experience and many customers are using our products well. We can also model and design exclusive solar system design solutions for your entire house based on the shape of your house.
