Kesai Automatic Color Register Photoelectric Sensor KSC-008 for Gravure Printing Machine

Kesai Automatic Color Register Photoelectric Sensor KSC-008 for Gravure Printing Machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $389

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimensions(L*W*H):: 20*20*20mm

Weight:: 2 KG

Product Name:: Kesai Automatic Color Register Photoelectric Sensor

Model:: KSC-008

Brand:: Kesai

Detection Distance:: 3-10mm

Output:: DC10-30V

Light Source:: Blue or White

Suitable Material:: film, like OPP, foil, very strong glisten paper

Quick Details

Place of Origin:: Shaanxi, China

Brand Name:: Kesai

Voltage:: AC220V±10% ,50HZ

Dimensions(L*W*H):: 20*20*20mm

Weight:: 2 KG

Product Name:: Kesai Automatic Color Register Photoelectric Sensor

Model:: KSC-008

Brand:: Kesai

Detection Distance:: 3-10mm

Output:: DC10-30V

Light Source:: Blue or White

Suitable Material:: film, like OPP, foil, very strong glisten paper

Product Description

Product Application

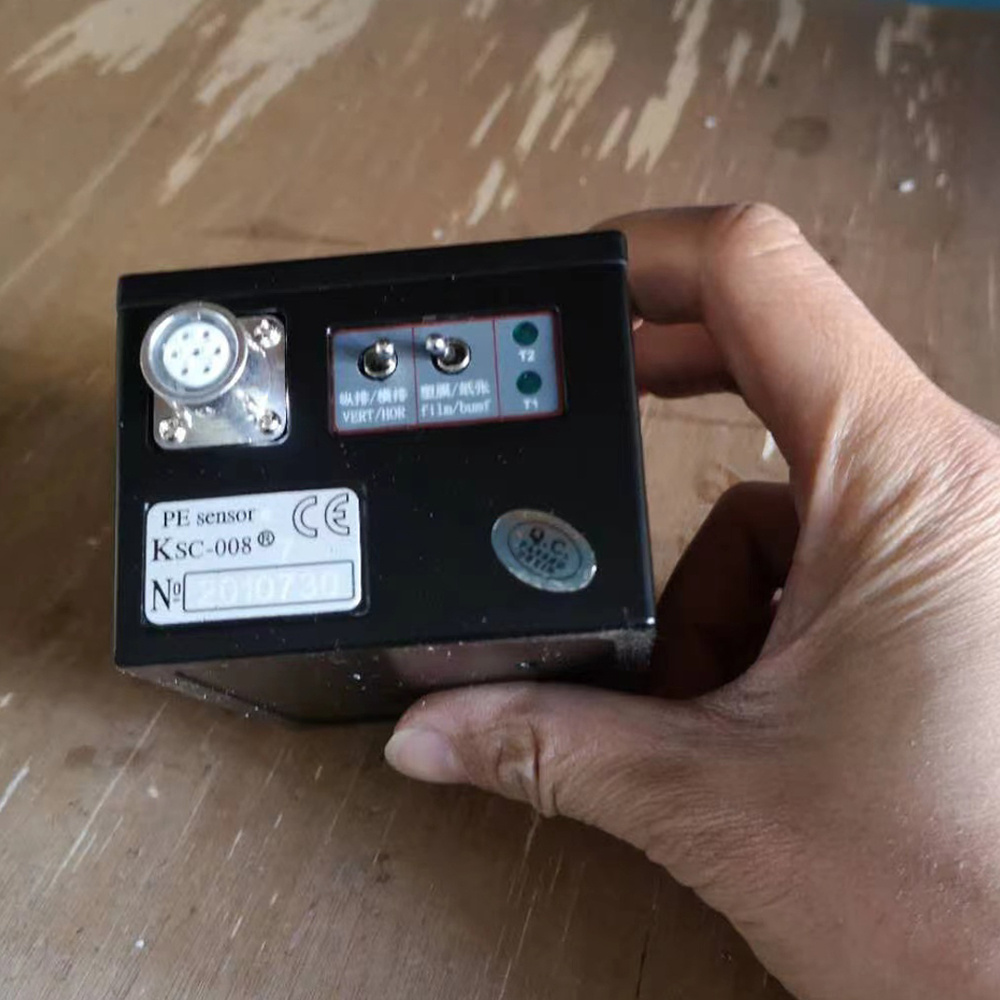

Kesai Color Register Sensor PE Sensor KSC-008

SPECIFICATIONS FOR KESAI COLOR REGISTER SENSOR PE SENSOR KSC-008
Name	Corset Color Sensor
Origin	China
Model	KSC-008
Light Source	Blue and white light (the light source required for ordering)
_{Detection precision}	Vertical：±0.01mm
		Horizontal：±0.01mm
Correction speed	Vertical：standard 1.0mm/sec.
		Horizontal:standard 0.2-0.5mm/sec
Correction Precision	Vertical：±0.01mm；
		Horizontal：±0.01mm
Cylinder Error Correction	Vertical and horizontal：±9.99mm
Alarm	Vertical and horizontal：0.1－0.9mm
Control Precision	Vertical：±0.1mm
		Horizontal：±0.1mm
Pre-setting	Vertical：＜10mm
		Horizontal：＜0.3mm
Color mark	Horizontal and vertical：±0.1mm
Power supply	AC220V±10% ,50HZ
Capacity	About 1000W
Environment	Temperature: 0－40℃， Humidity：20-80%RH( No dew)

Features

1. The detection distance of sensor: 3~18 mm

2. Choice Switch of Material:

In order to meet different material and get the best signal and signal to noise, there is 2 switch to choice for different material: film and paper.

(1) When the switch on film side, it is for transparent film, like OPP, Foil, very strong glisten paper:

(2) When the switch on paper side, it is for very weak glisten paper, like wooden wave paper, wallpaper, pearl film, brown paper, etc.

3. Color mark type choice switch

According to the mark of cylinder, there are vertical and horizontal type. There is automatic adjust function in vertical type, please choice horizontal type or increase the detection distance at vertical type, otherwise the sensor can not detect the positive signal.

4. Installation requirement:

(1) Please keep beam axes of light straight at material or reflecting plate.

(2) Please keep the adjust distance about 10 mm

Main Function

● Vertical control and horizontal control
● Auto-address
● Revers control(depend on machine)
● Color mark horizontal, control-best for bag printing
● OMK control-best for coating{±0.3mm(depend on machine) vertical only}
● Second printing control-best for some special jobs
● Jobs save &load
● Pre-setting-reducing wastage and improving product output
● Encoder testting-for encoder testing
● Speed display and Chinese&English language
● Error value display-very easy to know how much difference about register
● Error curve display- best for checking machine stability.
● Vertical and horizontal error display on control unit at same time, and it has study by itself.

Packing & Delivery

● If your machine still during the warranty period, we assume full responsibility for the quality. Please provide some photos or videos to prove that is not man-made damage. We are obliged to provide free parts.

● Otherwise, we will charge the cost of spare parts. If it is a custom parts, the costs may be higher.

● Smaller parts, we offer DHL mailed; larger parts can be sent via a wooden box or wooden pallets, shipping sent.Bear transport costs, it will be based on warranty.

Company Introduction

Documents

A. Manuals, technical documentation, CE certificate (if required) will be sent along with the goods;
B. Bill of lading, invoices, certificates of origin (MFN certificate of origin), fumigation certificate (if required) will confirm with the client, and then sent via DHL or UPS.
