Quick Details
-
Product name:
-
20ft Expandbale Container House Easy
-
Keyword:
-
Moduler Homes,expandable container house with fire resistance property
-
Transport and load:
-
Container Shipment
-
Life Span:
-
30-40 Years
-
Purlin:
-
Galvanized C-section
-
Door material:
-
Sandwich Panel Door / security door
-
Structure:
-
Steel Structure Frame Welded
-
Certification:
-
ISO9001:2000 CE
-
Color:
-
Customized Color
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WZH
-
Model Number:
-
20ft Expandable Container House
-
Product name:
-
20ft Expandbale Container House Easy
-
Keyword:
-
Moduler Homes,expandable container house with fire resistance property
-
Transport and load:
-
Container Shipment
-
Life Span:
-
30-40 Years
-
Purlin:
-
Galvanized C-section
-
Door material:
-
Sandwich Panel Door / security door
-
Structure:
-
Steel Structure Frame Welded
-
Certification:
-
ISO9001:2000 CE
-
Color:
-
Customized Color
Product Description

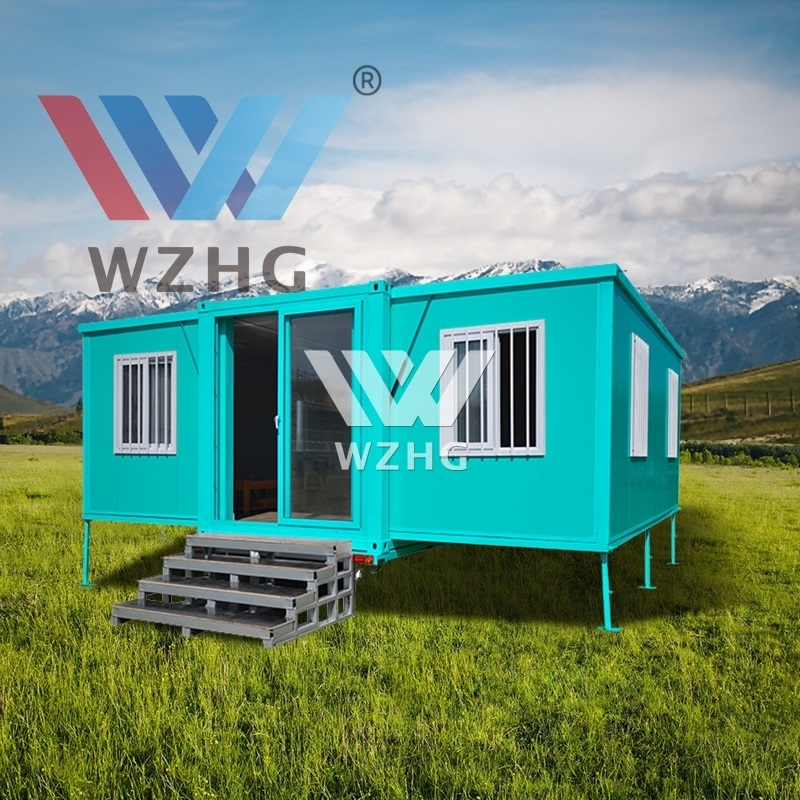

prefab expandable container modular house
2019 Best selling prefab house ! quick assembly expandable container house 20ft 40ft
Container House, australia expandable container house , container living homes for sale
20ft Expandable Container house
Size 6390*5850*2530 mm , 2 sets loading in 1*40 HQ
40ft Expandable Container house
Size 6390*11800*2530 mm , 1 sets loading in 1*40 HQ
Introduction :
ISO9001:2008 Certified Expandable Modular Container House is more and more popular among our customers .
The use of containers as a building material has grown in popularity of the past several years due to their inherent strength, wide availability, and relatively low expense. We have also started to see people build homes with containers because they are seen as more eco-friendly than traditional building materials such as brick and cement.
They have been retro-fitted with functional container house accessories. These container home units are transportable and comfortable to live in temporarily or permanently.
They are fitted with power and lighting and can be accessorised to suit your requirements.
Container houses are becoming increasing popular in this new age of sustainable living , as our container houses are constructed from recycled shipping containers. We can design a portable container home to your specific needs.
Expandable house due to in the factory has been decorated, easy to install simple , efficient manpower, the overall movement and other characteristics,which is very popular in foreign countries.
|
Item
|
20ft expandable container house and 40 ft expandable container house made in China
|
|
20ft house size
|
Expandable Size : 6400*5850*2530 mm Closed Size : 5850*2200*2530 mm
|
|
40ft house size
|
Expandable Size : 6400*11800*2530 mm Closed Size : 11800*2250*2530 mm
|
|
Steel Frame
|
Painted steel colums and 2.5-3.0 mm roof /floor frame
|
|
Optional Color
|
White , Green , Grey or any other RAL color
|
|
Wall / Roof panel
|
50/75 mm EPS / PU sandwich panel
|
|
Floor
|
Sub floor + bulu board + PVC floor
|
|
Window
|
Double glazed PVC window / aluminum alloy window
Window screen is optional
|
|
Door
|
Titanium magnesium alloy door / wood door / PVC sliding door and safey door etc
|
|
Bathroom
|
Shower, Seated Toilet,Wash Bacin,Towel Rack+Mirror+Paper box
|
|
Kitchen
|
cupboard I or L shape with washing basin , with white Quartz stone countertop
|
|
Electric system
|
Switch,socket,lamp,light,waterproof socked,distribution box etc
( Australia standard , American standard , French standard , China standard , European standard etc)
|
|
Max. Anti-wind speed
|
110 km/h
|
|
Earthquack
|
8 grade
|
Technical conditions
A.General Technical Condition
1)The structure can prevent the 8 magnitude earthquake.
2)The design of seismic grouping is the first group, the site characteristic cycle is considered 0.45s, the construction site
category is considered by Class III, and the damping ratio of steel structure is 0.05. The maximum αmax of the horizontal
earthquake influence coefficient is 0.04, which is calculated by 5 years.
3) Structural safety level is grade 2. The coefficient of importance is 1.0.
4) Conner fitting elevation plus or minus zero.
B.Materials
Normally,steel beams, steel columns, purlin are all used Q235B cold bending galvanized or painted steel frame
strength of steel:f=215N/m2
1.3 Loading Combination
1.Calculation of floor Loading
(1)Bottom Flooring
Structure Weight 0.4 kN/m2
Dead Load Value 0.4 kN/m2
Live Load Value 3.0 kN/m2
(2)Roof board
Structure Weight 0.3 kN/m2
Dead Load Value 0.3 kN/m2
Live Load Value 0.5 kN/m2
C.Calculation of Wind loading
According to the 15 Design durable years, the basic wind pressure of wind loading is W0=0.3KN/m2
A.General Technical Condition
1)The structure can prevent the 8 magnitude earthquake.
2)The design of seismic grouping is the first group, the site characteristic cycle is considered 0.45s, the construction site
category is considered by Class III, and the damping ratio of steel structure is 0.05. The maximum αmax of the horizontal
earthquake influence coefficient is 0.04, which is calculated by 5 years.
3) Structural safety level is grade 2. The coefficient of importance is 1.0.
4) Conner fitting elevation plus or minus zero.
B.Materials
Normally,steel beams, steel columns, purlin are all used Q235B cold bending galvanized or painted steel frame
strength of steel:f=215N/m2
1.3 Loading Combination
1.Calculation of floor Loading
(1)Bottom Flooring
Structure Weight 0.4 kN/m2
Dead Load Value 0.4 kN/m2
Live Load Value 3.0 kN/m2
(2)Roof board
Structure Weight 0.3 kN/m2
Dead Load Value 0.3 kN/m2
Live Load Value 0.5 kN/m2
C.Calculation of Wind loading
According to the 15 Design durable years, the basic wind pressure of wind loading is W0=0.3KN/m2
Applications of the prefab expandable container house :
1) Can be used as dormitory, temporary hospital, toilet, office, storage room, resort house to rent etc.
2) Can be installed in a short time, assembled by bolts with a high intensity;
3) Can be used repeatedly with a life span of more than 15 -20 years .
4) With a well-sealed and reliable structure, water-proof, fire-resistant, moisture-proof and anti-corrosive;
5) With supporting facilities such as washbasin, shower, air-conditioner, socket and so on;
1) Can be used as dormitory, temporary hospital, toilet, office, storage room, resort house to rent etc.
2) Can be installed in a short time, assembled by bolts with a high intensity;
3) Can be used repeatedly with a life span of more than 15 -20 years .
4) With a well-sealed and reliable structure, water-proof, fire-resistant, moisture-proof and anti-corrosive;
5) With supporting facilities such as washbasin, shower, air-conditioner, socket and so on;
Established in 2001, Weizhengheng Group covers an area of over 48,000 sqm, with more than 1,000 employees from 9 subsidiary companies together with offices. Each company enjoys its own feature.
Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd, professional in export trade business, has more than six years of experience in this field. Hebei Weizhengheng Modular House Teck Co., Ltd., located in Shijiazhuang and specialized in steel frame villa and container houses design, product, sell and construction. Heilongjiang Weizhengheng Steel Structure Engineering Co., Ltd, located in Harbin, benefits from freight economy when exported to Russia. Beijing Weizhengheng Metal Structure Engineering Co., located in the capital city of China, may receive clients from the abroad while saving their time and energy. Other branch companies are Shenyang Tianying Light Steel Color Plate Co., Ltd, Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd, Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd, Shandong Office, Manzhouli Office and Uganda Office.
FAQ
1. The house size and house design is firm , the house layout can custom made as request .
2 . It is easy and fast assemble , the insulation is custom made as the local climate , make the house suits for local and live in for a comfortable life
3. The design lifetime is 25 years
4. Usually the delivery time is 21-30 days .
5. Payment term , T,T and irrevocable L/C at sight .
6. The material is loading in 40' HQ , 2 set loading in 4 HQ .
