Quick Details
-
Brand Name:
-
Perfect Laser
-
Voltage:
-
380v 50HZ
-
Rated Power:
-
7.5kw
-
Dimension(L*W*H):
-
3300*2000*1300mm
-
Year:
-
2023
-
Weight (KG):
-
5000 KG
-
Product name:
-
cnc water jet cutting machine price
-
Cutting thickness:
-
5-150mm
-
Connecting way:
-
USB
-
Working Area (mm):
-
1.3*2.5m, 1.5*3m and Customised
-
Driving System:
-
three-phase AC motor Single-driving
-
Transmit way:
-
Taiwan imported ball screw
-
Max. cutting thickness:
-
20mm
-
voltage of power:
-
220V/50HZ
-
Cutting Speed:
-
0-6000mm/min
-
Rail guide:
-
Precision work round
Quick Details
-
Place of Origin:
-
Hubei, China
-
Machinery Test Report:
-
Provide CE certificate
-
Marketing Type:
-
Hot Product
-
Brand Name:
-
Perfect Laser
-
Voltage:
-
380v 50HZ
-
Rated Power:
-
7.5kw
-
Dimension(L*W*H):
-
3300*2000*1300mm
-
Year:
-
2023
-
Weight (KG):
-
5000 KG
-
Product name:
-
cnc water jet cutting machine price
-
Cutting thickness:
-
5-150mm
-
Connecting way:
-
USB
-
Working Area (mm):
-
1.3*2.5m, 1.5*3m and Customised
-
Driving System:
-
three-phase AC motor Single-driving
-
Transmit way:
-
Taiwan imported ball screw
-
Max. cutting thickness:
-
20mm
-
voltage of power:
-
220V/50HZ
-
Cutting Speed:
-
0-6000mm/min
-
Rail guide:
-
Precision work round

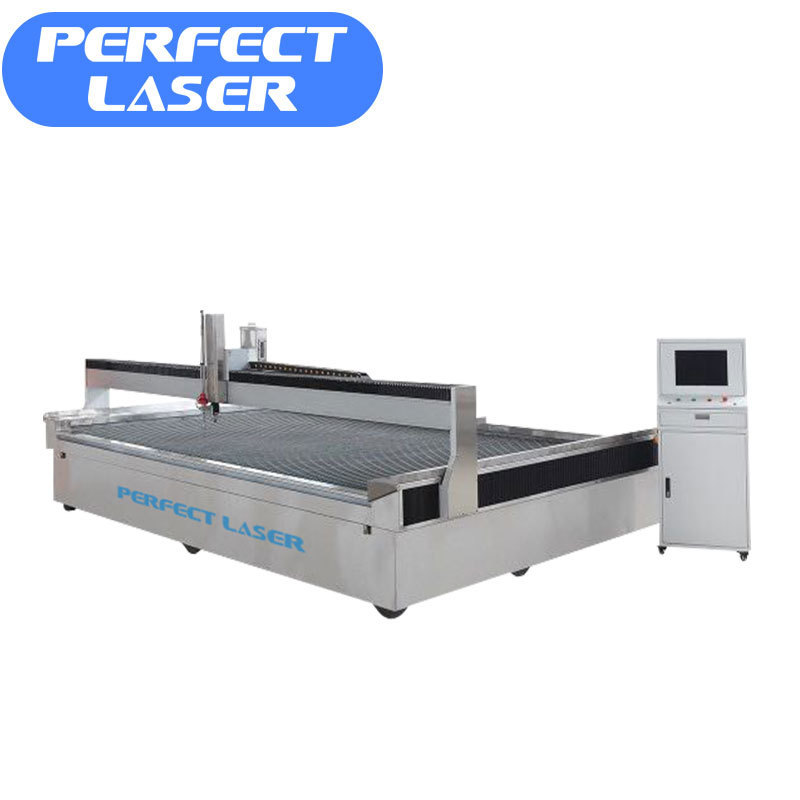

Distributor Wanted 37kw 5 axis AB Type 1-10 degree 3000x1500mm CNC Water Jet Cutting Machine Price
The PEG-3015 5 axis water jet cutting machines conforms to the quality standard, the structural design is reasonable, compact and
the appearance is beautiful. This cnc water jet cutting machine is mainly composed of high pressure generator, CNC system, cutting
platform, high pressure water switch, cutting head and high pressure pipeline. Environmentally friendly and the key components are
made of world-famous brand parts. This water jet metal cutting machine is suitable for processing all kinds of metal materials,
non-metallic materials and composite materials, such as: steel, stainless steel, aluminum, copper, stone, glass, ceramics, rubber,
alloy steel, carbon steel, plastic, etc. Convenient operation, free maintenance, low operating costs, and we provide reliable
after-sales service, to ensure that users’ production and processing.
Main Featu res of Distributor Wanted 37kw 5 axis AB Type 1-10 degree 3000x1500mm CNC Water Jet Cutting Machine Price
1. High cutting efficiency: continuous swing while improving the cutting efficiency of five-axis water knife, and the processing efficiency water jet metal cutting machine is 85% -100% of the three-axis water knifes.
2. angle cutting: AB 5 axis water jet cutting machines can achieve a large graphic cutting, to meet some special requirements of the stone industry, such as 10-degree bevel cutting.
3. Special shield design of the cnc water jet cutter is more effective waterproof, durable and beautiful.
4. Imported Yaskawa servo drive, positioning accuracy, smooth operation, to ensure processing accuracy of the water jet metal cutting machine.
5. Large loading and unloading size, especially for irregular material size, if your cnc water jet cutting machine is to undertake external cutting work, it is recommended to use cantilevered type.
6. The cnc water jet cutting machine adopts one-time extrusion of aluminum alloy crossbeam material. Light weight, high rigidity, to ensure a more stable machine tool. It belongs to a high technology in cnc water jet cutter area.
|
Model:
|
PEG-3015
|
|
Working size
|
3000x1500mm
|
|
cutting head
|
5-axis cutting head
|
|
cutting type
|
AB type
|
|
Z-axis travel
|
200㎜
|
|
Repeat positioning accuracy
|
0.05㎜
|
|
Fast positioning speed
|
12000㎜/min
|
|
ball screw
|
HIWIN
|
|
High pressure generation
|
The main high-pressure parts of High-pressure system is imported parts, so that it has the best cost performance
|
|
|
Durable high-pressure parts make cutting processing costs greatly reduced, higher stability
|
|
|
Maximum pressure: 400Mpa (60000psi), long-term use of the pressure of 360-380Mpa
|
|
|
Maximum Drainage：3.7L/MIN
|
|
|
Reversing way: hydraulic commutation
|
|
|
The working pressure can be adjusted manually
|
|
|
Second filtration of water supply through a fine water filtration system
|
|
|
Low-pressure drilling function, so that the cutting of brittle materials more secure
|
|
|
Refrigeration: the world's first air-cooled type
|
|
Cutting head
|
Using DP2000 integrated cutting head
|
|
|
Using nozzle structure from the US water jet
|
|
|
The self-correcting function reduces the operator's assembly time
|
|
|
Easy parts replacement is very convenient
|
|
High pressure water open turn off
|
Using imported structure high pressure water switch
|
|
|
Pneumatic valves can achieve high-pressure water instantaneous opening and instantaneous closure, greatly reducing the return
phenomenon |
|
|
Automatic control of high pressure water switch with CNC auxiliary function
|
|
|
Closed pressure can be adjusted to achieve low pressure drilling operation and high pressure drilling operation greatly reduced
drilling time |
|
|
Action is sensitive and reliable
|
|
Sand control system
|
Using of hanging sand control system
|
|
|
Self-priming for sand
|
|
|
Manual adjustment of abrasive flow
|
|
Software
|
Receiving DXF format files or self-plot graphics exported AUTOCAD
|
|
|
DXF files can be automatically converted to NC machining instructions
|
|
|
PC and CNC can communicate through the serial port
|
|
|
Small arc automatic deceleration function
|
|
|
Simultaneous graphical simulation of the program to avoid processing errors
|
CNC water jet cutting machine price PEG-3015
1. Home appliances glass cutting
(Gas stove table, hood, disinfection cabinet, etc.) Lamps and lanterns; craft glass, bathroom products (shower rooms, etc.),
architectural glass, furniture glass, car glass, glass and other industries
2. Stone, ceramic processing
3. Metal cutting
Decorative, decorating stainless steel cutting (currently in the field of domestic metal cutting the largest customer base)
Manufacture of machinery covers (including electrical control boxes, etc.)
Metal parts cutting (stainless steel hair plate semi-finishing, large steel structure parts, saw blades, etc.)
High-voltage electrical conductive row (copper or aluminum row)
Rare metals (titanium, tungsten, molybdenum)
Logo (advertising)
Non-ferrous metals (aluminum, copper)
We Perfect laser is
over 20 years
industrial machine manufacturer and exporter, and our machine has been exported to
more than 180 countries and regions.
Due to our machines' reliable quality and affordable price, we have been certified by
European CE, ISO9001:2000 and TUV quality system.
Company Introduction video on You Tube: https://youtu.be/Ojo3XnAzRdM
1 year guarantee for main machine (People damaged are charged).
Full technical support\ by e-mail, call and video
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training installation and operation for the staffs.
|
Packaging
|
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
