Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINGDA
-
Application:
-
Large Build Size 3D PRINTER
-
Features:
-
High precision,Filament Detection Alarm
-
Dimension(L*W*H):
-
400*300*500mm
-
Voltage:
-
220V/110V
-
Weight:
-
80KG
-
Type:
-
Digital Printer
-
Printing Size:
-
400 X 300 X 500 mm
-
Printing Speed:
-
0-200 mm/s (Adjustable)
-
3D Printing Software:
-
Cura
-
Layer Thickness:
-
0.05-0.3 mm (Adjustable)
-
3D Printre Nozzle Diameter:
-
0.4 mm
-
Material Diameter:
-
1.75 mm
-
3D Printing Material:
-
PLA, ABS, HIPS, Nylon, TPU, WOOD, etc
-
Nozzle Temperature:
-
0-270℃
-
Platform Temperature:
-
0-110℃
-
Certification:
-
CE,FCC, ISO9001,Rohs, FCC, CE, RoHS
Quick Details
-
Production Capacity:
-
1000pc/month
-
Year:
-
2020
-
Forming size:
-
400*300*500mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MINGDA
-
Application:
-
Large Build Size 3D PRINTER
-
Features:
-
High precision,Filament Detection Alarm
-
Dimension(L*W*H):
-
400*300*500mm
-
Voltage:
-
220V/110V
-
Weight:
-
80KG
-
Type:
-
Digital Printer
-
Printing Size:
-
400 X 300 X 500 mm
-
Printing Speed:
-
0-200 mm/s (Adjustable)
-
3D Printing Software:
-
Cura
-
Layer Thickness:
-
0.05-0.3 mm (Adjustable)
-
3D Printre Nozzle Diameter:
-
0.4 mm
-
Material Diameter:
-
1.75 mm
-
3D Printing Material:
-
PLA, ABS, HIPS, Nylon, TPU, WOOD, etc
-
Nozzle Temperature:
-
0-270℃
-
Platform Temperature:
-
0-110℃
-
Certification:
-
CE,FCC, ISO9001,Rohs, FCC, CE, RoHS
MINGDA Industrial 3d Printer
|
PRINTING
|
|
|
|
|||
|
Model Name
|
MD-4H
|
MD-6H
|
MD-666
|
|||
|
Build Volume
|
300*200*200mm
|
400*300*500mm
|
600*600*600mm
|
|||
|
Filament Compatibility
|
PLA, Carbon Fiber, Wood, Flexible, TPU, Aluminum PLA ,ABS, NYLON, HIPS, etc.
|
|
PLA, Carbon Fiber, Wood, Flexible, TPU, Aluminum ,etc
|
|||
|
Weight(N.W./ G.W. )
|
40/55kg
|
60/85kg
|
180/210kg
|
|||
|
Print Technology
|
Fused Deposition Modeling (FDM)
|
|
|
|||
|
Number of Nozzle
|
Single
|
|
|
|||
|
Layer Resolution
|
0.05 mm
|
|
|
|||
|
Filament Diameter
|
1.75 mm
|
|
|
|||
|
Nozzle Diameter
|
0.4mm ( 0.6, 0.8, 1.0mm)
|
|
|
|||
|
TEMPERATURE
|
|
|
|
|||
|
Max. Nozzle Temp.
|
275°C
|
|
|
|||
|
Max. Bed Temp.
|
110°C
|
|
|
|||
|
SPEED
|
|
|
|
|||
|
Best Printing Speed
|
50 mm/s
|
|
|
|||
|
Max Printing Speed
|
200 mm/s
|
|
|
|||
|
MECHANICAL
|
|
|
|
|||
|
Construction
|
Power-Coated Steel, Aluminum Casting for Motion Components
|
|
|
|||
|
Platform
|
10mm thickness aluminum hot bed
|
|
|
|||
|
Levelling
|
Factory Leveled, Adjust Manually
|
|
|
|||
|
X Y Position Precision
|
0.006 mm
|
|
|
|||
|
Z Position Precision
|
0.0015 mm
|
|
|
|||
|
ELECTRICAL
|
|
|
|
|||
|
Power Requirements
|
95-265V, 50-60HZ
|
|
|
|||
|
Max. Power
|
700W
|
|
|
|||
|
Screen
|
5.0 inch Color Touch Screen
|
|
|
|||
|
Connectivity
|
USB,SD card
|
|
|
|||
|
SOFTWARE
|
|
|
|
|||
|
Software Bundle
|
Muti-Language
|
|
|
|||
|
Support Software
|
Simplify3d, Cura, Slic3r, etc.
|
|
|
|||
|
Supported File Types
|
STL,g-code
|
|
|
|||
|
Operating Systems
|
Windows (7,8,10) Mac OS X
|
|
|
|||
|
SPECIAL FUNCTION
|
|
|
|
|||
|
Uninterruptible Power System
|
Save data when power is off
|
|
|
|||
|
Filament Detection
|
Pause printing when filament run out
|
|
|
|||
|
Automatic Shutdown
|
Turn off the power automatically when printing is complete
|
|
|
|||
TECHNICAL SPECIFICATIONS
imprimente 3d

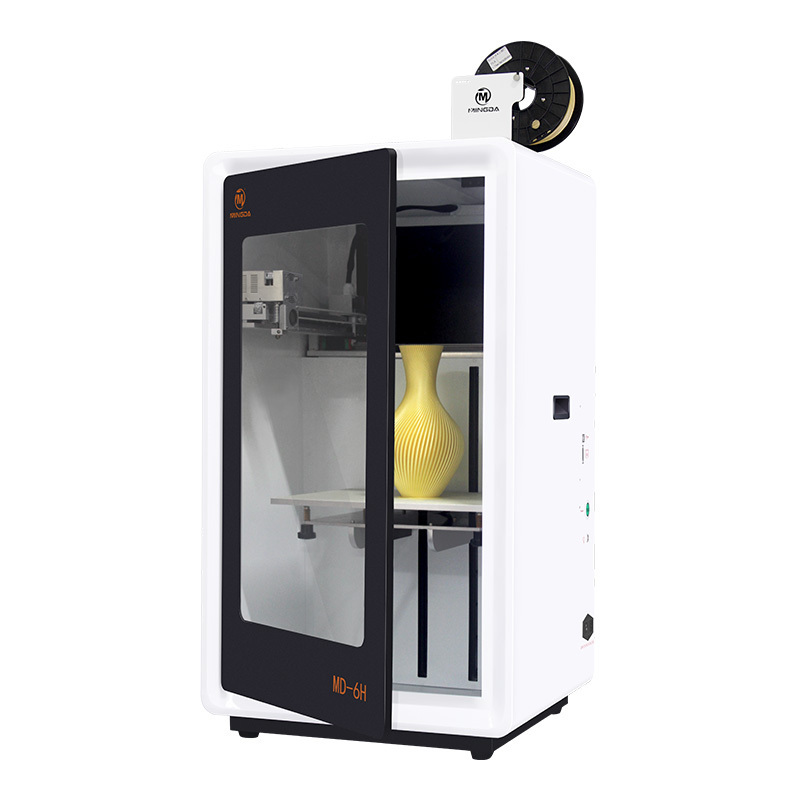

The Appearance of MINGDA industrial 3D Printer
1. Concise and fluent exterior, seamless, Curve Chamfer design
2. Counter-sunk screws, more safe and beautiful
Structure of MINGDA industrial 3D Printer
1.The out shell and inside mechanical drive system are of independent design. The damage of the shell will not affect the machine function.
2. Dual ball screw to support the Z axis.Take 16mm diameter optical axis, more stable and precise.
3.Take double parallel plate under heat bed, more flat and stable(The accuracy can reach 0.1mm-0.2mm)
4.The inside frame also takes double parallel plate structure, and built with LED light panel, more fashion and easy to observe the printing status.
5. All the aluminum board are anodized(including the heat bed, fixing plate etc), which is of higher corrosion stability.
6.Take square rails structure rather than rods, which can reduce the distortion.
7.Use larger screws to calibrate the heat bed, making it more easy-operation.
8.3.2 inch colorful touch screen built on the right top corner of the machine, highly improved the user experience.
9.Take electromechanical switch, more safe and professional
10.Adding 2 handles on the left and right side, more convenient to move and place
11.Most of the components are under module design, including the limitation switch, motors, heating element, temperature sensor etc. It is more convenient to replace the parts.
12.The cables are fixed inside the tank chain, more stable and safe.
Function of MINGDA industrial 3D Printer
1. Dual CPU processor, computing faster; support with USB 2.0, 32G memory card and FAT 32 filing system.
2. HD LCD panel, multi-language operation, easy to monitor and use.
3.Support connection to machine, no need exporting file to SD card.
4.Detached from computer after sending file, reducing print interrupt failure.
Software of MINGDA Glitar 3D Printer
1.Complete self R&D software and firmware, generating better print file.
2.Compatible with CURA slicing.
3.Can upgrade firmware on the machine, to keep it always newest version.
1. Concise and fluent exterior, seamless, Curve Chamfer design
2. Counter-sunk screws, more safe and beautiful
Structure of MINGDA industrial 3D Printer
1.The out shell and inside mechanical drive system are of independent design. The damage of the shell will not affect the machine function.
2. Dual ball screw to support the Z axis.Take 16mm diameter optical axis, more stable and precise.
3.Take double parallel plate under heat bed, more flat and stable(The accuracy can reach 0.1mm-0.2mm)
4.The inside frame also takes double parallel plate structure, and built with LED light panel, more fashion and easy to observe the printing status.
5. All the aluminum board are anodized(including the heat bed, fixing plate etc), which is of higher corrosion stability.
6.Take square rails structure rather than rods, which can reduce the distortion.
7.Use larger screws to calibrate the heat bed, making it more easy-operation.
8.3.2 inch colorful touch screen built on the right top corner of the machine, highly improved the user experience.
9.Take electromechanical switch, more safe and professional
10.Adding 2 handles on the left and right side, more convenient to move and place
11.Most of the components are under module design, including the limitation switch, motors, heating element, temperature sensor etc. It is more convenient to replace the parts.
12.The cables are fixed inside the tank chain, more stable and safe.
Function of MINGDA industrial 3D Printer
1. Dual CPU processor, computing faster; support with USB 2.0, 32G memory card and FAT 32 filing system.
2. HD LCD panel, multi-language operation, easy to monitor and use.
3.Support connection to machine, no need exporting file to SD card.
4.Detached from computer after sending file, reducing print interrupt failure.
Software of MINGDA Glitar 3D Printer
1.Complete self R&D software and firmware, generating better print file.
2.Compatible with CURA slicing.
3.Can upgrade firmware on the machine, to keep it always newest version.
Most Recommended Product
Printing Samples
ABS dental prototypes
Buddha Printing+ P ostprocessing
Souvenir+Moom Lamp Printing
Carbon fiber printing
Nylon Printing
TPU flexible printing
Wood PLA printing
Aluminum PLA printing
Mini Me Printing
Packing & Shipping
How to pack MINGDA 3D printer?
1. One set 3D printer machine
2. One roll filament , one masking tape
3. Power plug and USB cable
4. SD card with manual, software and some model samples
5. One maintenance kit (spare nozzles, tubes, Tweezers, Tape, Knife, pliers, screwdrivers etc)
6. Standard international strong wooden package , suitable to long-distance transportation
H
ow will you shipping MINGDA 3D printer to my destination?
Our 3D printer shipped by different transportation,you can choose the most convenient method. Generally, MINGDA always ship 3D printers by air and sea. In the mean time, MINGDA has cooperated with international express such as DHL, UPS, TNT to enable our customers get the 3D printer rapidly.
