Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
32
-
Max. Turned Length (mm):
-
140 mm
-
Spindle Motor Power(kW):
-
600w
-
Place of Origin:
-
dongguan
-
Brand Name:
-
dida
-
Model Number:
-
dida001
-
Voltage:
-
220v50hz
-
Dimension(L*W*H):
-
740*250*300mm
-
Weight (KG):
-
50 KG
-
Product name:
-
Mini lathe machine
-
Function:
-
lathe machine
-
Keyword:
-
0618
-
Usage:
-
Metal Bar Turning
-
Application:
-
Metal Product
-
Brand:
-
DIDA
-
Color:
-
White Gray
-
Key words:
-
Lathe CD6260C
-
Lathe:
-
Lathe Cutting
-
Processing:
-
Metal Working Lathe Machine
Quick Details
-
Max. Length of Workpiece (mm):
-
350
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
21
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
32
-
Max. Turned Length (mm):
-
140 mm
-
Spindle Motor Power(kW):
-
600w
-
Place of Origin:
-
dongguan
-
Brand Name:
-
dida
-
Model Number:
-
dida001
-
Voltage:
-
220v50hz
-
Dimension(L*W*H):
-
740*250*300mm
-
Weight (KG):
-
50 KG
-
Product name:
-
Mini lathe machine
-
Function:
-
lathe machine
-
Keyword:
-
0618
-
Usage:
-
Metal Bar Turning
-
Application:
-
Metal Product
-
Brand:
-
DIDA
-
Color:
-
White Gray
-
Key words:
-
Lathe CD6260C
-
Lathe:
-
Lathe Cutting
-
Processing:
-
Metal Working Lathe Machine

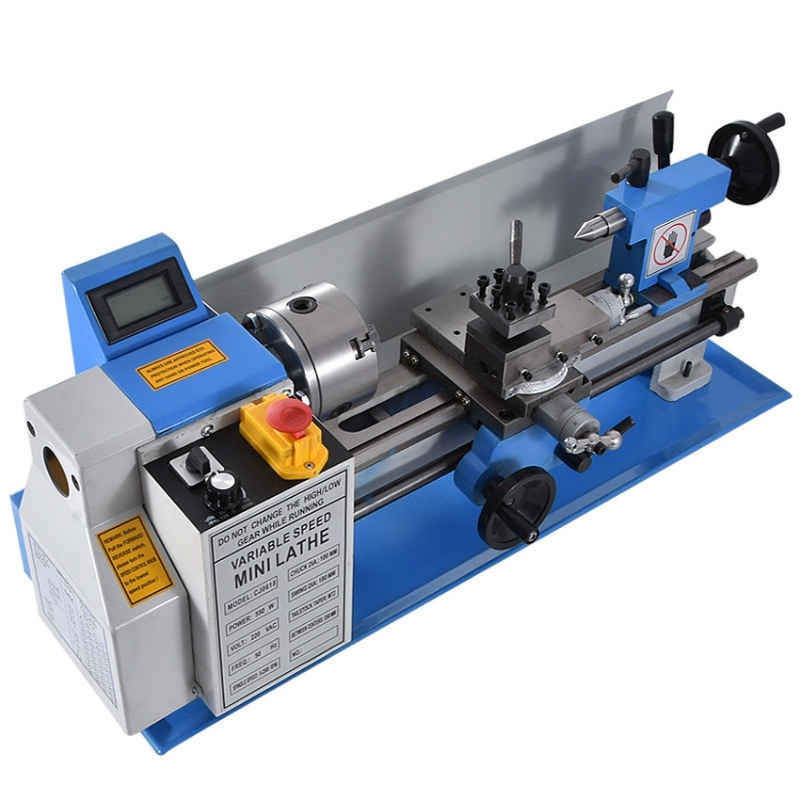

Product Description
Features:
1,This precision mini lathe is designed to perform various types of processing jobs.Counterface
turning,drilling,threading,and cutting jobs on materials made up of round bar materials can be
performed with this machine.
2,This machine can be used in areas such as mini precision pars
processing,sample processing and modeling works.
This machine is DC motor drived.
3,CJ0618 miniature lathe spindle speed 50-2500RPM continuously adjustable;
4,The feed speed can be adjusted according to the requirements of different workpieces.
1,This precision mini lathe is designed to perform various types of processing jobs.Counterface
turning,drilling,threading,and cutting jobs on materials made up of round bar materials can be
performed with this machine.
2,This machine can be used in areas such as mini precision pars
processing,sample processing and modeling works.
This machine is DC motor drived.
3,CJ0618 miniature lathe spindle speed 50-2500RPM continuously adjustable;
4,The feed speed can be adjusted according to the requirements of different workpieces.
Machine Parameter
|
Distance between centers
|
200/300/350mm
|
|
Swing over bed
|
180mm
|
|
Swing over cross slide
|
110mm
|
|
Spindle taper
|
MT3
|
|
Tailstock taper
|
MT2
|
|
Chuck diameter
|
80mm
|
|
Spindle bore
|
20mm
|
|
Cross slide travel
|
65mm
|
|
Tool slide travel
|
35mm
|
|
Range of metric threads
|
0.5-2.5mm
|
|
Range of imperial threads
|
12-52TPI
|
|
Spindle accuracy
|
0.01mm
|
|
Spindle speed
|
50-2500/100-2500RPM
|
|
Power of motor
|
400W/550w
|
|
Voltage/Frequency
|
230V/50Hz or 120V/60Hz
|
|
Net weight
|
35Kg/38Kg/40Kg
|
|
Gross weight
|
38Kg/42Kg/45Kg
|
|
Packing size
|
660/760/810× 310× 320mm
|
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
