Quick Details
-
Positioning:
-
CCD Camera
-
Control panel:
-
High definition touch screen
-
Software:
-
Signmaster/CDR/Easy cut/Flex etc.
-
Optional accessories:
-
WIFI/laser/Diamond Blade
-
Cutting:
-
Support Contour cutting, Repeat cutting
-
Mark Detect:
-
Support any color or any shape Mark Auto Detection
-
Pinch Wheel Design:
-
Dual spring, Pinch wheel adjustable
-
Cutting Letter:
-
Support 2mm letter cutting no sawtooth
-
Cutting Precision:
-
+/- 0.01mm
-
Color options:
-
Red,white
Quick Details
-
Paper Feed Width:
-
720mm
-
Cutting Width:
-
550mm
-
Place of Origin:
-
Guangdong, China
-
Positioning:
-
CCD Camera
-
Control panel:
-
High definition touch screen
-
Software:
-
Signmaster/CDR/Easy cut/Flex etc.
-
Optional accessories:
-
WIFI/laser/Diamond Blade
-
Cutting:
-
Support Contour cutting, Repeat cutting
-
Mark Detect:
-
Support any color or any shape Mark Auto Detection
-
Pinch Wheel Design:
-
Dual spring, Pinch wheel adjustable
-
Cutting Letter:
-
Support 2mm letter cutting no sawtooth
-
Cutting Precision:
-
+/- 0.01mm
-
Color options:
-
Red,white
Product Description
vinyl cutting plotter, vinyl cutter plotter machine, 1500mm size cutter plotter
Main Feature
▶High-frequency vibration cutting for Garment
▶Cutting force Max 2000 g, Support Cutting force test and adjust
▶Dual heads cutting for plotting&cutting with one step
▶Camera + ARM 7.0+8MB Cache+4.3" Full Touch Screen
▶USB, U disk connection. WIFI, Mobile APP optional
▶Dual spring wheel pinch, high precision steel roller
▶Multi-language, SignMaster Cut Software, Stand available
▶Support Contour cutting, Repeat Cutting, Auto-Calibrating offset value
|
parameter
|
|
|
|
|||
|
Model
|
MM-VAD24
|
MM-VAD48
|
MM-VAD60
|
|||
|
Max cutting width
|
550mm
|
1180mm
|
1420mm
|
|||
|
Cutting head
|
Dual
|
Dual
|
Dual
|
|||
|
Camera/Scanner
|
Support
|
|
|
|||
|
Auto Contour cutting
|
Fast, automatically and high precision contour cut by using the camera.
|
|
|
|||
|
Operation
|
4.3" TFT LCD Large touch screen
|
|
|
|||
|
Interface
|
HD large screen full-color APP information function display
|
|
|
|||
|
Connector
|
USB cable, USB flash drive
|
|
|
|||
|
Contour cutting&calibration
|
Easy use and high precision calibrate
|
|
|
|||
|
Mainboard
|
32bit ARM Cortex M4 MCU,8M memory. Support remote and one key update.
|
|
|
|||
|
Location mode
|
Bound system. set origin freely
|
|
|
|||
|
Driver
|
Digital DC stepper motor,microstep driving
|
|
|
|||
|
Command
|
HP-GL, DMPL
|
|
|
|||
|
Max moving speed
|
960mm/s
|
|
|
|||
|
Max cutting speed
|
750mm/s
|
|
|
|||
|
Max cutting thickness
|
2mm
|
|
|
|||
|
Force
|
Dual head:50g~2000g ( 160 setting adjustable )(independent setting of each head)
|
|
|
|||
|
Cutting precision
|
< 0.01mm
|
|
|
|||
|
Repeat precision
|
0.082mm
|
|
|
|||
|
Power supply
|
AC100~240V/50Hz~60Hz
|
|
|
|||
|
AC100~240V/50Hz~60Hz
|
+5℃~ +45℃,relative humidity 30%~70%
|
|
|
|||
|
Color
|
White/black/red(optional)
|
|
|
|||
|
Bracket
|
YES
|
|
|
|||
|
Size
|
1000*375*370mm
|
1600*375*370mm
|
1920*360*388mm
|
|||
|
Gross Weight
|
16.8kg
|
25.5kg
|
42kg
|
|||
|
Operation system
|
Windows2000 / XP / 2003 / win7 / 2003 / win7 /win10
|
|
|
|||
|
|
MAC OSX10.2.8 or above
|
|
|
|||
Detailed Images

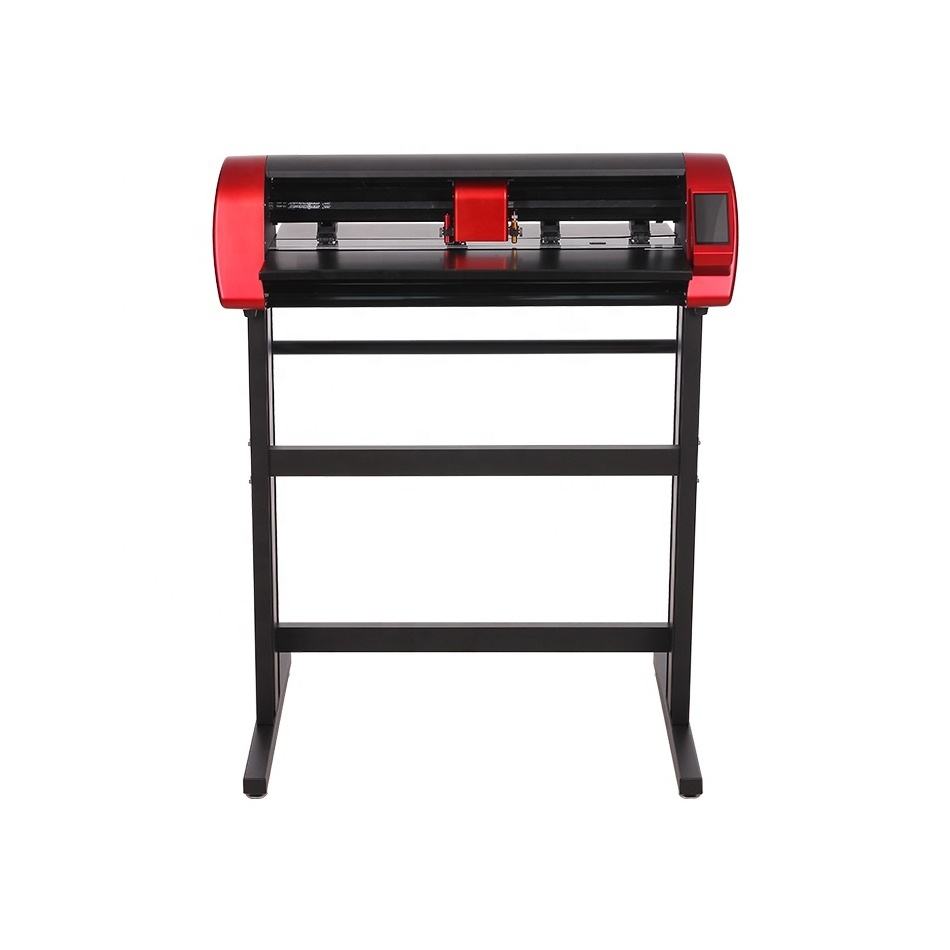

Exquisite appearance
Built-in CCD camera
Double head, one carving head, one creasing head
Sensitive touch screen
Cutting Samples
Production
Packing & Delivery
Certifications
Our Service
Due to our quality control measures, our laser marking machine has high precision, low energy consumption, automatic processing and low environmental pollution, which makes our products play an important role in more and more industries.
Quality product performance and good reputation, Perfect Laser products are not only successful sell in China, but also have been sold to more than 60 countries and regions in Southeast Asia, Australia, Middle East, Africa, America and Europe.
For more detailed information on our industrial laser equipment, please do not hesitate to contact us
We welcome your inquiries, and look forward to work with you.
