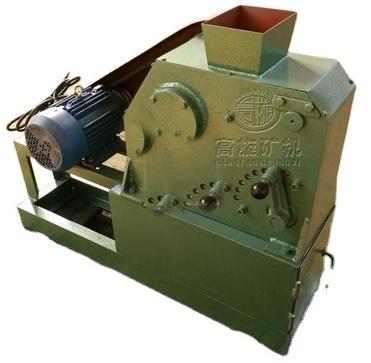

Mini Laboratory Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material is 320MPa. The jaw crusher is widely used in stone mining, metallurgy industry, building material, highway, railway, and chemical industry.Jaw Crushes are applicable for primary and middle crushing.
Working Principle
The motor of Laboratory Jaw Crusher transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
|
Technical Parameters
of Jaw crusher
|
|
|
|
|
|
|
|
||||||
|
Model
|
Feeding opening size(mm)
|
Max feeding size(mm)
|
Discharging size(mm)
|
Capacity(t/h)
|
Motor power(kw)
|
Weight(t)
|
Overall dimension L*W*H(mm)
|
||||||
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
||||||
|
PE150*250
|
150*250
|
125
|
10-40
|
1-3
|
5.5
|
1.1
|
876*845*935
|
||||||
|
PE250*400
|
250*400
|
210
|
20-60
|
3-13
|
15
|
2.8
|
1500*1400*900
|
||||||
|
PE400*600
|
400*600
|
340
|
40-100
|
15-40
|
30
|
5.7
|
1700*1800*1600
|
||||||
|
PE500*750
|
500*750
|
425
|
50-100
|
20-70
|
55
|
10
|
1890*1940*1870
|
||||||
|
PE600*900
|
600*900
|
520
|
65-130
|
50-150
|
75
|
15.5
|
2395*1843*2230
|
||||||
|
PE800*1000
|
800*1000
|
700
|
80-140
|
80-220
|
75
|
16.3
|
2405*1850*2230
|
||||||
|
PE750*1060
|
750*1060
|
630
|
80-140
|
70-130
|
110
|
28
|
2450*2466*2770
|
||||||
|
PE900*1200
|
900*1200
|
860
|
230-290
|
200-250
|
132
|
31
|
3400*3200*3500
|
||||||
|
PE1200*1500
|
1000*1200
|
1100
|
350-360
|
250-400
|
160
|
51
|
3800*3166*3045
|
||||||
|
PEX150*750
|
150*750
|
120
|
10-40
|
8-35
|
15
|
3.35
|
1280*1610*1081
|
||||||
|
PEX250*750
|
250*750
|
210
|
25-60
|
8-30
|
22
|
4.9
|
1400*1300*1350
|
||||||
|
PEX250*1000
|
250*1000
|
210
|
25-60
|
10-40
|
30-37
|
6.5
|
1600*2000*1500
|
||||||
|
PEX250*1200
|
250*1200
|
210
|
25-60
|
15-50
|
37
|
7.7
|
1900*2000*1500
|
||||||
|
PEX300*1300
|
300*1300
|
260
|
25-90
|
20-70
|
75
|
8.1
|
1800*2300*1700
|
||||||
1) High reduction ratio and even final particles.
2) Simple structure and easy to be maintained.
3) Easy replacement of wearing and spare parts.
4) Reliable operation and long service life.
5) Convenient maintenance with low cost.
6) Wide ranges of products series stone jaw crusher price.
Name: Jaw crusher plates
Brand: GaoXuan
Original: China.
Jaw crusher plate is made of anti-wear material high manganese steel. When the movable jaw moves up and down, the angle between the movable jaw and the fixed jaw become large and small. At this time materials are broken and discharged from the crushing chamber to receiver hopper.
Name: Motor
Brand: GaoXuan
Original: China
Motor drives the wheel by triangular belt, and then drives eccentric shaft to move the moving jaw. When movable jaw plate moves to fixed jaw plate, the materials are crushed or chopped. On the contrary, the crushed materials are discharged. Along with the continuous rotation of motor, the crusher crushes and discharges periodic.
Name: Feed hopper and discharger hopper
Brand: GaoXuan
Original: China
Feeding raw material into crusher chamber from the feed hopper for crushing. The most narrow part is called inlet mouth, such as 100*60mm, 100*100mm.
The crushed materials are discharged into a receiving hopper in crusher bottom.
|
Packaging
|
|
|
|
Size
|
1050mm(W)x410mm(W)x765 mm(H)
|
|
|
Weight
|
260kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size:1050x410x765 mm（ L*W*H）). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
