Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CJ
-
Weight (KG):
-
1500
-
Voltage:
-
custom
-
Dimensions:
-
custom
-
Use:
-
tube welding
-
Product name:
-
Automatic girth seam auto Welding Machine for irregular truck tank
-
Max Rotary Diameter:
-
3000mm
-
Length of Line:
-
16000mm
-
Thickness of Weld Materials:
-
Max 12mm
-
Width of the Welding Seam:
-
Max 12mm
-
Welding Speed:
-
150-400mm/min
Quick Details
-
Video outgoing-inspection:
-
custom
-
Machinery Test Report:
-
custom
-
Core Components:
-
other
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CJ
-
Weight (KG):
-
1500
-
Voltage:
-
custom
-
Dimensions:
-
custom
-
Use:
-
tube welding
-
Product name:
-
Automatic girth seam auto Welding Machine for irregular truck tank
-
Max Rotary Diameter:
-
3000mm
-
Length of Line:
-
16000mm
-
Thickness of Weld Materials:
-
Max 12mm
-
Width of the Welding Seam:
-
Max 12mm
-
Welding Speed:
-
150-400mm/min

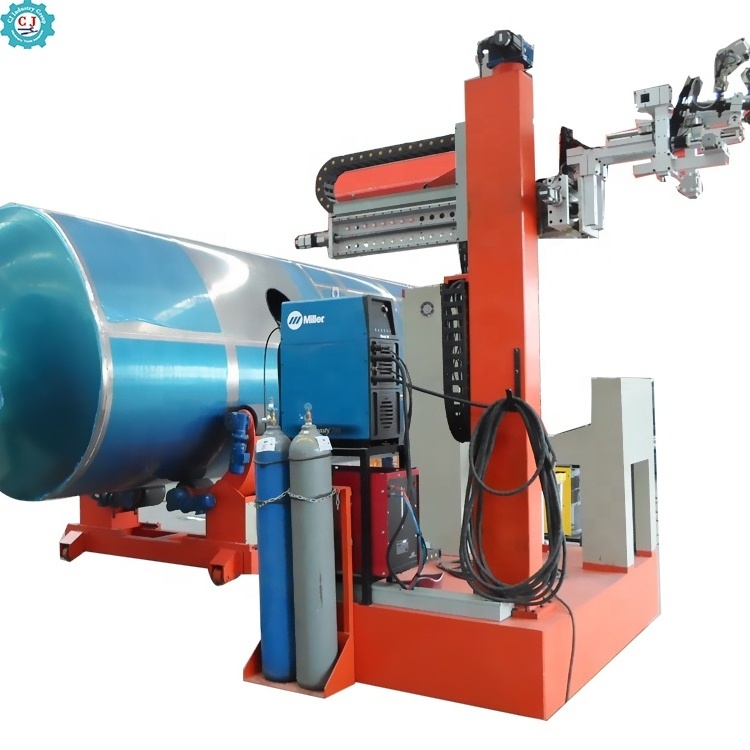

Automatic girth seam auto Welding Machine for irregular truck tank circular seam welding machine
It is used for automatic welding of circular seams of stainless steel and aluminum alloy tank trucks with square, round and special sections.The welding torch movement, tank rotation, and welding torch angle are numerically controlled to ensure that the welding trolley welds on the workpiece surface at a constant linear speed. The rotary encoder and laser tracker are used to collect the rotation signal of the tank, which is processed by the numerical control system, and the displacement device is controlled to rotate automatically. The speed and walking speed of the welding carriage ensure that the welding speed does not change under the condition that the workpiece rotation angular speed changes. Touch screen operation, camera monitoring, easy operation.
The equipment mainly consists of a cross operating frame, a camera monitoring operating table, a welding power source, a welding seam tracking system, an electrical control system, and a tank displacement device.
Technical data
|
Welding Mode |
Automatic wire feed welding |
|
Maximum Rotary Diameter |
3000mm |
|
Welding Materials |
Stainless Steel and Aluminum Alloy |
|
Thickness of the Welding Materials |
3-12mm |
|
Width of the Welding Seam |
5-12mm |
|
Weld Monitoring |
Video |
|
Adjustment of Welding Pace |
Variable adjustment |
|
Weld Tracking |
Numerical Control |
|
Welding Speed |
150-400mm/min |
