Quick Details
-
Model Number:
-
pe100
-
Specification:
-
DN20-DN1600 ( gaseous fuels dn20mm-dn630mm)
-
Length:
-
round(100m/roll), straight(5.8/11.8m)
-
Thickness:
-
2.3-117.6mm Pick by application
-
Standard:
-
IS04427, EN12201, AS/NZS4130, DIN8074,etc
-
name:
-
hdpe pipe
-
Color:
-
Black/CUSTOM
-
Pressure:
-
PN4-PN25
-
Connection:
-
Welding
-
Advantage:
-
wear-resisting High corrosion resistance long life
-
Density:
-
0.959 g/cm
-
oxidation induction time (200 degree):
-
>=20 min
-
Elongation at break,%:
-
>=350mm
-
Application:
-
Water
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BADA
-
Model Number:
-
pe100
-
Specification:
-
DN20-DN1600 ( gaseous fuels dn20mm-dn630mm)
-
Length:
-
round(100m/roll), straight(5.8/11.8m)
-
Thickness:
-
2.3-117.6mm Pick by application
-
Standard:
-
IS04427, EN12201, AS/NZS4130, DIN8074,etc
-
name:
-
hdpe pipe
-
Color:
-
Black/CUSTOM
-
Pressure:
-
PN4-PN25
-
Connection:
-
Welding
-
Advantage:
-
wear-resisting High corrosion resistance long life
-
Density:
-
0.959 g/cm
-
oxidation induction time (200 degree):
-
>=20 min
-
Elongation at break,%:
-
>=350mm
-
Application:
-
Water
Products Description

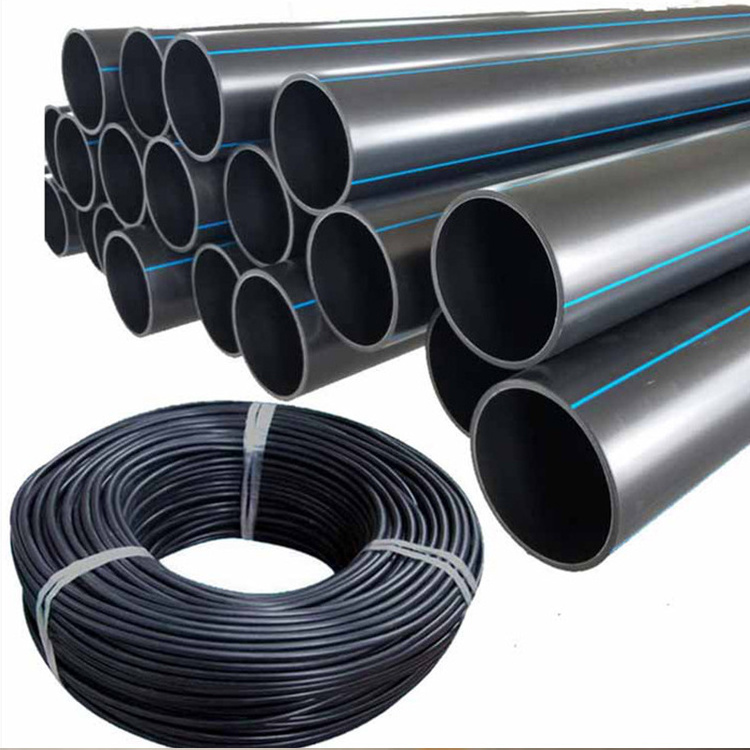

PE100 1inch 2inch polyethylene pipe on roll pe hose pipe hdpe pipe for irrigation
Pipe made of polvethylene is a cost effective solution for a broad range of piping problems in municipal, industrial. marine,mining, landifill, duct and agricultural applications. It has been tested and proven effective for above ground. surface, buried, sliplined, floating, and sub-surface marine applications. High-density polyethylene pipe (HDPE) can carry potable water, wastewater, slurrles, chemicals, hazardisous wastes, and compressed gases. Polyethylene is strong, extremely tough and very durable.
|
TECHNICAL SPECIFICATION:STANDARD:
ISO4427, EN12201, AS/NZS4130, DIN8074, ASTM F714, GOST18599, GB/T13663 |
|
|
|
|||
|
item
|
pressure
|
|
requirment
|
|||
|
|
PE80
|
PE100
|
|
|||
|
20 C hydrostatic strength (100h)
|
9
|
12.4
|
Non breakage and leakage
|
|||
|
80 C hydrostatic strenath (165h)
|
4.6
|
5.5
|
Non breakage and leakage
|
|||
|
80 C hydrostatic strergth (1000h)
|
4
|
5
|
Non breakage and leakage
|
|||
1. PN = Nominal Pressure(Bar) at 20 °
2. Series, SDR and PN based on MRS = 10 MPa
3. Nominal diameter per ISO 161-1. Minimum wall thickness per ISO 4065.
4. Weight calculated in according with PPI TR-7 using 0.959 g/cm density.
2. Series, SDR and PN based on MRS = 10 MPa
3. Nominal diameter per ISO 161-1. Minimum wall thickness per ISO 4065.
4. Weight calculated in according with PPI TR-7 using 0.959 g/cm density.
FEATURES
:
1. High corrosion resistance, resulting into a longer life
2. Extremely light weight and hence easy to handle
3. High fle ibility. High abrasion resistance. High impact strength.
4. Excellent water hammer characteristic helps, sustaining surges .
5. Excellent flow characteristics leading to significant energy savings.
6. Shifting soils no breakage. Earthquake resistance.
7. No infitration, helps maintaining the quality of fluids being conveyed
8. No trenches needed, resulting into easy and economical installation.
9. High UV resistance to scaling and biological build up -Allows fusion to eliminate leakages
1. High corrosion resistance, resulting into a longer life
2. Extremely light weight and hence easy to handle
3. High fle ibility. High abrasion resistance. High impact strength.
4. Excellent water hammer characteristic helps, sustaining surges .
5. Excellent flow characteristics leading to significant energy savings.
6. Shifting soils no breakage. Earthquake resistance.
7. No infitration, helps maintaining the quality of fluids being conveyed
8. No trenches needed, resulting into easy and economical installation.
9. High UV resistance to scaling and biological build up -Allows fusion to eliminate leakages
Details Images
Our Pipes
Production Line
Construction Cases
1. Light weight;
2. corrosion resistance;
3. Resistant to chemical fertilizers and herbicides;
4. Nontoxic and odorless;
5. Resistant to harsh climate;
6. Up to 50 years' durability;
7. Resistant to deformation;
8. Smooth interior structure, low friction losses;
9. Low labor cost for handling and installing;
10. Reliable performance .
2. corrosion resistance;
3. Resistant to chemical fertilizers and herbicides;
4. Nontoxic and odorless;
5. Resistant to harsh climate;
6. Up to 50 years' durability;
7. Resistant to deformation;
8. Smooth interior structure, low friction losses;
9. Low labor cost for handling and installing;
10. Reliable performance .
Certifications
FAQ
1. Q: How could we get to your factory?
A: It is located at beautiful, historic and cultural city, Jinan city. And it's only 40 KM from Jinan Internationl Airport.You may
also come to our factory by High Speed Railway train, we will go to train station to pick you up.
2. Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
3. Q: How about the quality?
A:We can make sure that our products must be tested by high level testing methods before they go to customers.
4.Q: What about your customs clearance?
A:The original B/L,invoice,packing list and all certification you need will be sent to you by TNT or DHL within 7 days.
A: It is located at beautiful, historic and cultural city, Jinan city. And it's only 40 KM from Jinan Internationl Airport.You may
also come to our factory by High Speed Railway train, we will go to train station to pick you up.
2. Q: What shipment is it to our destination?
A: In general,we transfer goods by sea in order to save cost.If your shipping date is urgent,we could also consider to ship by air.
3. Q: How about the quality?
A:We can make sure that our products must be tested by high level testing methods before they go to customers.
4.Q: What about your customs clearance?
A:The original B/L,invoice,packing list and all certification you need will be sent to you by TNT or DHL within 7 days.
