Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AA4C
-
Model Number:
-
AA-TC1824
-
Warranty:
-
1 Years
-
Tire changer:
-
Tire changer with dual arm tyre lifter turntableless automatic
-
Applicable rim:
-
13 " - 26 "
-
Max wheel diameter:
-
1120mm
-
Working pressure:
-
8-10bar
-
Product name:
-

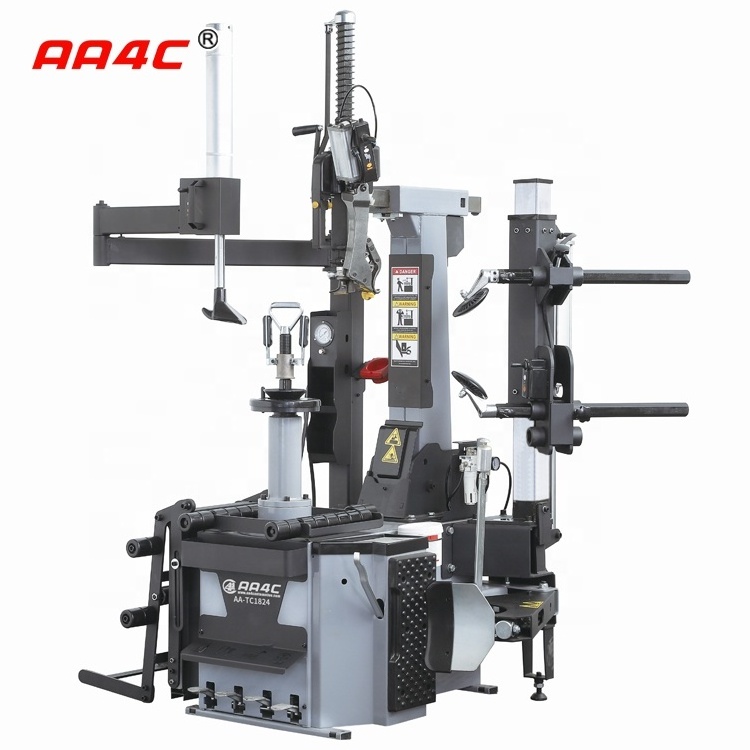

Automatic Car Tire Changer
-
Certification:
-
CE
-
Power:
-
0.75KW/1.1KW
-
Outside clamping:
-
12-21''
-
BEAD BREAKER FORCE:
-
2500kgs
-
NOISE LEVEL:
-
65dB
Quick Details
-
Motor Power:
-
0.75-1.1KW
-
Operating Pressure:
-
8-10Bar / 116-145Psi
-
Power Supply:
-
110V/220V/380V, 50HZ/60HZ
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
AA4C
-
Model Number:
-
AA-TC1824
-
Warranty:
-
1 Years
-
Tire changer:
-
Tire changer with dual arm tyre lifter turntableless automatic
-
Applicable rim:
-
13 " - 26 "
-
Max wheel diameter:
-
1120mm
-
Working pressure:
-
8-10bar
-
Product name:
-
Automatic Car Tire Changer
-
Certification:
-
CE
-
Power:
-
0.75KW/1.1KW
-
Outside clamping:
-
12-21''
-
BEAD BREAKER FORCE:
-
2500kgs
-
NOISE LEVEL:
-
65dB
Products Description
Features
1、No disc locking structure, patented design, matching alloy steel fastnuts, quick locking without injury rim.
2、Hand-controlled large shovel structure, patented desian, vertical palm button structure and perfect press damping, combined with the universal large shovel structure, the shovel tire is easy to operate.
3,The new fin of the tire head. eiminatina the crowhar. disassembly and assembly of hard wall flat tire is more time-saving,labor-saving.
4、Using the whole automatic tire turning frame structure, the sliding roller auxiliary tire is easily delivered.
5、Advanced mechanical arm, the pulley partof the form of a set, embedded wear-resistant sliding block with fine grinding square tube, so that the mechanical arm can run smoothly and freely.
6、Metal six-bar handle, through the aolden ratio to make the six-bar down process convenient, labor-savina.
7、Special explosion-proof grade oil mist device, good pressure resistance effect and high safety factor The reverse loading fixture is optional.
|
Power supply
|
110V/220V/380V, 50HZ/60HZ
|
|
Motor power
|
0.75-1.1KW
|
|
Air requirement
|
8-10Bar / 116-145Psi
|
|
Bead breaker force
|
2500KG/5510lbs
|
|
Working noise
|
<70db
|
|
Max tire diameter
|
1000mm/39.5''
|
|
Max. wheel width
|
16''
|
|
Turntable diameter
|
620mm/24.4''
|
|
Inner clamping
|
13.5-24''
|
|
Outer clamping
|
12-21.5"
|
