Time and material are crucial factors in scaffolding construction. To make the most efficient use of both, the ADTO SERVICE includes the integrated software solution LayPLAN SUITE. Several software packages are on offer for different requirements:
LayPLAN CLASSIC, LayPLAN CAD.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
CONSTRUCTION
-
Design Style:
-
alulminum scaffold plank
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ADTO
-
Model Number:
-
SP-5
-
Product name:
-
adto alulminum scaffold plank
-
Material:
-
6061-T6
-
Width:
-
19.25"
-
length:
-
3', 4', 5', 6', 7', 8', 9', 10'
-
Standard:
-
OSHA
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
CONSTRUCTION
-
Design Style:
-
alulminum scaffold plank
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ADTO
-
Model Number:
-
SP-5
-
Product name:
-
adto alulminum scaffold plank
-
Material:
-
6061-T6
-
Width:
-
19.25"
-
length:
-
3', 4', 5', 6', 7', 8', 9', 10'
-
Standard:
-
OSHA

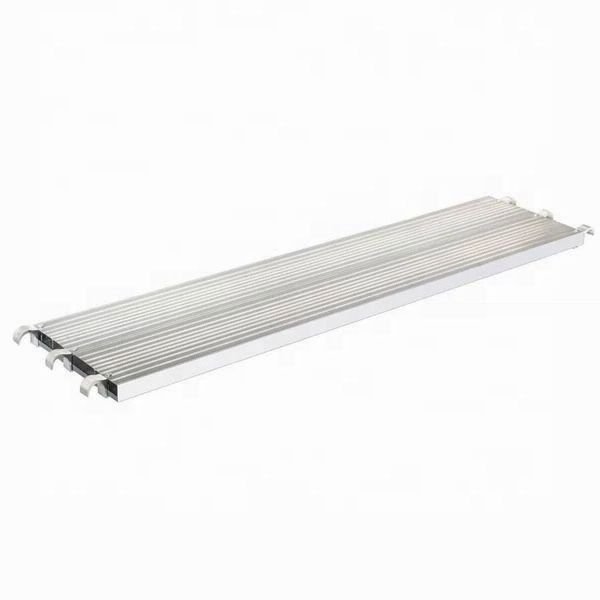

Products Description
1:Non-skid surface
2.
Meets American and Australia SWL standard Min 75lbs/Square Foot
3.
Hooks on both ends(Connected structure panel without hooks) Ribbed, non-skid surface,Strong strength,Light weight,Greater recyclable value
4.
All Aluminum Alloy Plank with Premium quality extruded aluminium rail
Product Specifications
Size
: 3'-10' (other sizes are available on request)
Material
: 6061-T6
Standard:
Meet American standard
|
Code
|
Product Description
|
|
Weight(Lbs)
|
|
||
|
ADTO07LBTB0001
|
3’L × 19.25"W Aluminum Plank
|
|
14.5
|
|
||
|
ADTO07LBTB0002
|
4’L × 19.25"W Aluminum Plank
|
|
18.2
|
|
||
|
ADTO07LBTB0003
|
5’L × 19.25"W Aluminum Plank
|
|
21.8
|
|
||
|
ADTO07LBTB0004
|
6’L × 19.25"W Aluminum Plank
|
|
25.4
|
|
||
|
ADTO07LBTB0005
|
7’L × 19.25"W Aluminum Plank
|
|
29.1
|
|
||
|
ADTO07LBTB0026
|
8’L × 19.25"W Aluminum Plank
|
|
32.7
|
|
||
|
ADTO07LBTB0006
|
9’L × 19.25"W Aluminum Plank
|
|
36.3
|
|
||
|
ADTO07LBTB0007
|
10’L × 19.25"W Aluminum Plank
|
|
39.9
|
|
||
