Quick Details
-
Heat Dissipation:
-
20 BTU/hr
-
Humidity:
-
10% to 90%
-
Temperature:
-
32° to 104°F (0° to 40°C)
-
Size:
-
143*98*68mm
-
weight:
-
400g
-
DC-NET Power Usage:
-
5 Watts (0.20Amps @ 24 Volts DC)
-
Voltage:
-
24V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
DIN-REL8
-
Heat Dissipation:
-
20 BTU/hr
-
Humidity:
-
10% to 90%
-
Temperature:
-
32° to 104°F (0° to 40°C)
-
Size:
-
143*98*68mm
-
weight:
-
400g
-
DC-NET Power Usage:
-
5 Watts (0.20Amps @ 24 Volts DC)
-
Voltage:
-
24V
Automatic Dimming System Introduction
okystar won the title of Alibaba's major customer
Products Description

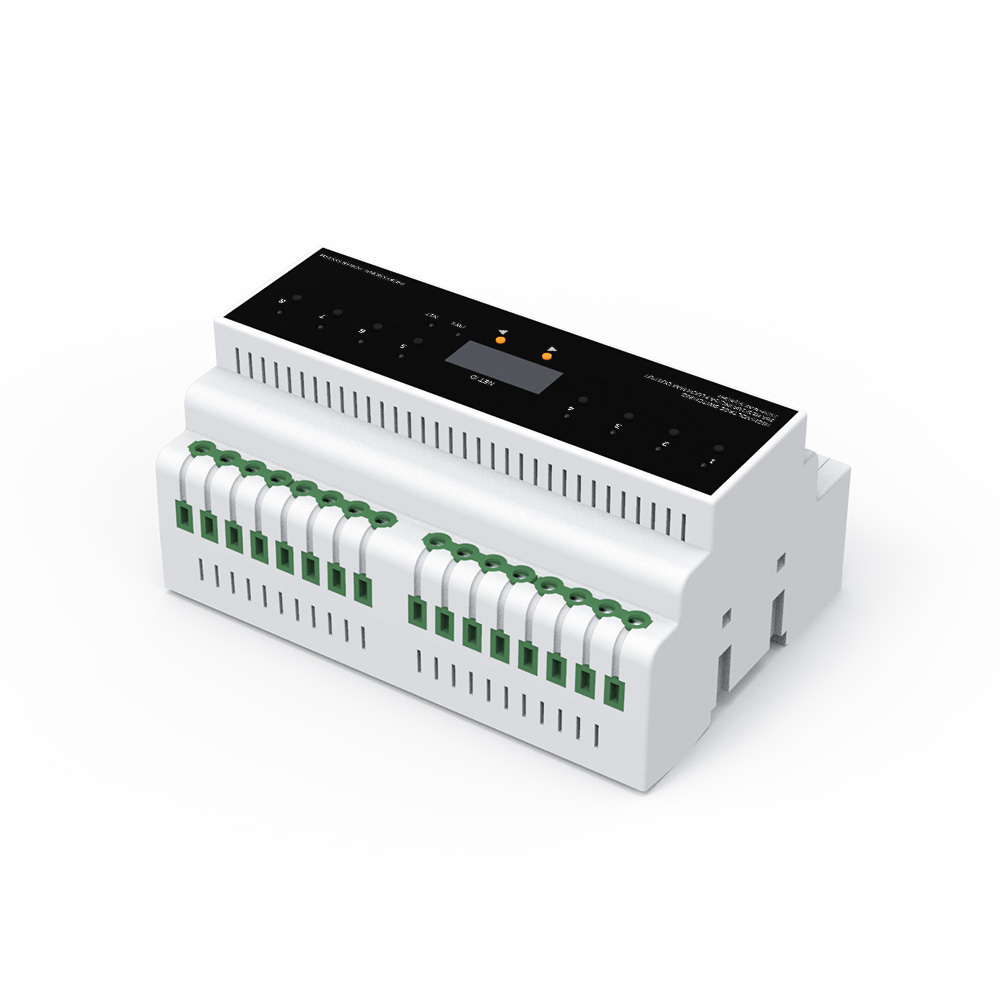

The DIN-REL8 is an 8-channel lighting control module designed to support switching of non-dimmable lighting and fans. A single model supports both 120 and 220-240 Volt applications. Each channel handles incandescent loads up to 10 Amps, fluorescent loads up to 5 Amps, and also 1/2 HP motors.
Product Features
Override Input
An override input is provided to allow an external contact closure to momentarily override the control system program and set each channel
Product Specifications
|
Connector
|
(8) sets of (2) captive screw terminals; Isolated Class 1 SPST relay switch circuits 1 - 8
|
|
Relay Rating
|
10 Amps incandescent, 5 Amps fluorescent, 16 Amps resistive, 0.5 HP @ 240 Volts AC (per channel)
|
|
NET
|
(2) 4-pin 3.81mm detachable terminal blocks, paralleled
|
|
NET ID
|
(3) 7-Segment green LED digits and (2) miniature pushbuttons for setting DC-NET ID; digits also display output levels
|
|
RESET
|
(1) Recessed miniature pushbutton, resets internal processor
|
|
DC-NET Power Usage
|
5 Watts (0.20Amps @ 24 Volts DC)
|
Product Photo
Our Company
Okystar Technology Co., Ltd is subsidiary of Okystar Technology Group Co., Ltd, which holds 4 subsidiary companies and more than 100 skilled workers,5. technicians.Okystar Tech Co.,Ltd was built in 2004.We mainly manufacture and export lighting control system including DALI, 0-10V, Leading / Trailing Edge Dimmer, Programmable Touch Panel and etc.
After 10 years development, our company has grown into a large high-tech group corporation integrated industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules. Now we launch new lighting control system module which will keep our competitiveness in the market.
After 10 years development, our company has grown into a large high-tech group corporation integrated industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules. Now we launch new lighting control system module which will keep our competitiveness in the market.
Exhibition
FAQ
1.Can you make customer design please?
Yes., we can. Okystar have 6-8 engineers team.
We can make new design according to your request.
2.Can you make our logo in the package please?
Yes. We can. Such as printing your logo.
3.How about your quality of products?
Less than 2% repairing rate within one year.
Our QC team has 3 members who test quality before shipping.
4.What is warranty of your products?
Refunds within 3 months,2 years warranty replacement or repairment for free.
5.Are you a manufacturer?
Yes, we are. Our factory and office are in Shenzhen, welcome to visit us at any time.
Yes., we can. Okystar have 6-8 engineers team.
We can make new design according to your request.
2.Can you make our logo in the package please?
Yes. We can. Such as printing your logo.
3.How about your quality of products?
Less than 2% repairing rate within one year.
Our QC team has 3 members who test quality before shipping.
4.What is warranty of your products?
Refunds within 3 months,2 years warranty replacement or repairment for free.
5.Are you a manufacturer?
Yes, we are. Our factory and office are in Shenzhen, welcome to visit us at any time.
