Quick Details
-
Use:
-
Agriculture
-
Production Capacity (kg/h):
-
3000 - 10000
-
Weight:
-
1200 KG
-
After-sales Service Provided:
-
grain processing machine, Online support
-
Material:
-
Carbon Steel
-
Color:
-
white
-
Function:
-
Remove Impurities
-
Capacity:
-
3 t/h
-
Voltage:
-
OEM
-
Power:
-
Electrical Motor
-
Packing size:
-
yes
-
Power(Kw):
-
4.25kw
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
South Africa
-
Certification:
-
ISO9001,TUV,CE,SONCAP
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SYNMEC
-
Type:
-
Grain Processing Equipment
-
Use:
-
Agriculture
-
Production Capacity (kg/h):
-
3000 - 10000
-
Weight:
-
1200 KG
-
After-sales Service Provided:
-
grain processing machine, Online support
-
Material:
-
Carbon Steel
-
Color:
-
white
-
Function:
-
Remove Impurities
-
Capacity:
-
3 t/h
-
Voltage:
-
OEM
-
Power:
-
Electrical Motor
-
Packing size:
-
yes
-
Power(Kw):
-
4.25kw
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
South Africa
-
Certification:
-
ISO9001,TUV,CE,SONCAP
PRODUCT DISPLAY
INTRODUCTION

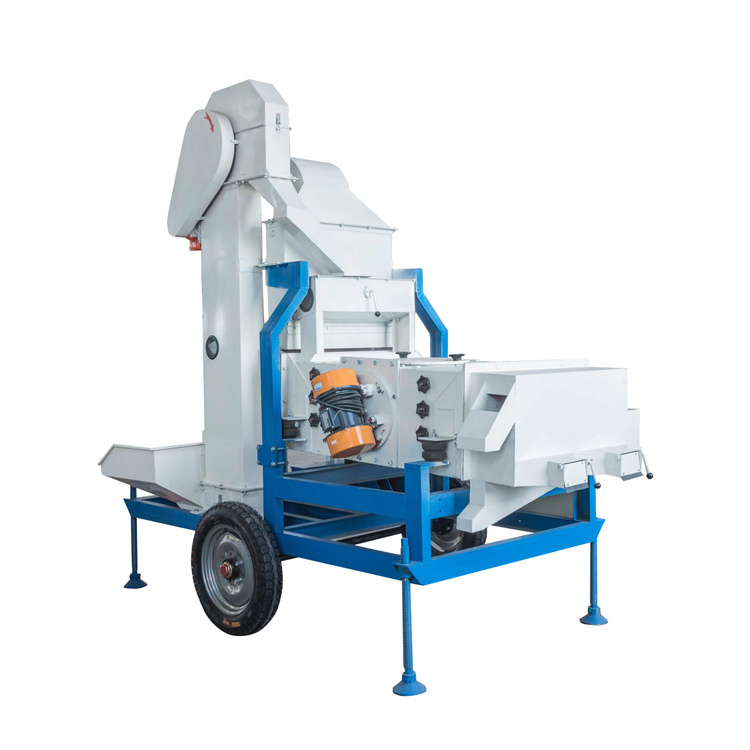

Seed cleaner & grader is used for cleaning and grading seeds, grains, cereals, and other granule products. It can be equipped to suit a variety of special jobs and purposes.
Dust and light impurity are removed by aspirator fan. Material falls on sieve layers and was separated by sieves according to width and thickness difference. All the oversize and undersize impurities were discharged from different outlets.
FEATURES
Seed cleaner & grader becomes basic and most favourite cleaning machine in seed and grain industry of global market, with high efficiency, excellent performance, wide application.
It’s suitable for processing all kind of seeds, cereals, grains species and crops, such as wheat, paddy, rice, barely, maize, millet, cumin , sunflower seed, soybean ,coffee bean, cocoa bean ,oil seeds, etc.
Customized sieve layer amount and various machine combinations allow the seed cleaner & grader to be used for a wide range of applications and increase grading efficiency.
Working principle sketch
Working Principle
Feed grain into inlet hopper after air sieving, and then under the vibration the grain jumping and flow to the multi-layer sieving trunk, following the grains well-proportioned enter to the upper layer sieve via the rubber curtain. Selected grains will fall into the next lower sieving panel after sieving, chaff and debris blocked by sieves and transfer to the outlet of large impurity. The selected grains will fall into the lower layers sieving panels, and will be graded into different levels of the different grain sizes by sieving in different sieving layers, that caused by the layers sieving panels have different mash size. Selected grains flow to the outlets of good grain, fill into bag hung on the bag holder. Cap of outlets can be used when shift bagging that means the cap can be close when you change the bag. It is the whole work flow for the separator.
Use different sieve to different process of different type of grains. The observing windows on the sieving trunk are for checking operation.
PRODUCT PARAMETERS
|
Dimension (L×W×H)
|
3970×1800×2750 mm
|
|
Dimension of each sieve layer
|
1250×800 mm
|
|
Capacity (count by wheat)
|
3000 kg/h
|
|
Weight
|
1200 kg
|
|
Motor Power
Air Blower Vibration Motors Elevator Motor |
3 kw 0.25 kw*2 0.75 kw |
|
Total Power
|
4.25 kw
|
APPLICATION INDUSTRY
RELATED PRODUCTS
COMPANY PROFILE
Business since 2002, based on Huaixi industry park, Shijiazhuang City, China. During over 20 years manage, we become the woridwide
sucoessful manufacturer for grain cleaning & seed processing machinery, and the biggest one is China, has 11 hectare land with
advanoed processing equipment such as laser cutter. CNC lathe, etc. In year 12004, we start international trading. following 5
years we have rapid develop on that, so at year 2010 we buit one international brand of grain cleaning & seed processing
machinery, also funded an independent corporate entity 'SYNMEC International trading Ltd. that for provide better trading service
for our oversea customer. Until now, we have sold our machines to more than 160 countries.
PACKING & SHIPPING
COMMON PROBLEM
About Machine
1. Can one set of machine process many kinds of seeds?
Yes, you just need to buy extra screens.
2. What is the purity after processed by your machine?
If you buy one whole processing line, the purity can be 99.9% at least
3. Can you give me a solution according to my warehouse size and my special requirement?
Of course, we can.
4.Can the color be customized?
In normal case. the color is white. which is powder coated. But we also accept the customized color.
5. What is the machine warranty period?
One year after the machine arrives your seaport.
About Shipping
1. What is the package of machines?
The machine will be packed by plastic films and fixed in container or plywood case.
2. Will the machine be damaged during transport?
It will not, the machines will be fixed tightly in the container by belts fasteners, strong iron wire and steel wedge
3. Is any port of China available?
Yes.
4. Can you deliver the machine to my warehouse?
Yes, we can do door to door.
5. How long does the cargo to delivery to my address?
It takes about 15-45 workdays to arrive your address by sea
