Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AOKE
-
Model Number:
-
AK-RK02S-12+AK-BF02
-
Operating Temperature:
-
-40'C~+80'C, -40'C~+80'C
-
Coding type:
-
Learning code
-
working frequency:
-
315mhz/433mhz
-
Receiving Sensitivity:
-
-105dB
-
Transmitting Distance:
-
20-100M
-
PCB size:
-
72mm*52mm*20mm
-
Quiescent Current::
-
0MA
-
Output Mode:
-
Contact output(AC and DC)
Quick Details
-
Max. Current:
-
10A, 10A
-
Max. Voltage:
-
12V, 12V
-
Network:
-
RF
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AOKE
-
Model Number:
-
AK-RK02S-12+AK-BF02
-
Operating Temperature:
-
-40'C~+80'C, -40'C~+80'C
-
Coding type:
-
Learning code
-
working frequency:
-
315mhz/433mhz
-
Receiving Sensitivity:
-
-105dB
-
Transmitting Distance:
-
20-100M
-
PCB size:
-
72mm*52mm*20mm
-
Quiescent Current::
-
0MA
-
Output Mode:
-
Contact output(AC and DC)
Remote control on off switch 433.93MHZ transmitters universal remote control 433mhz gatemhz

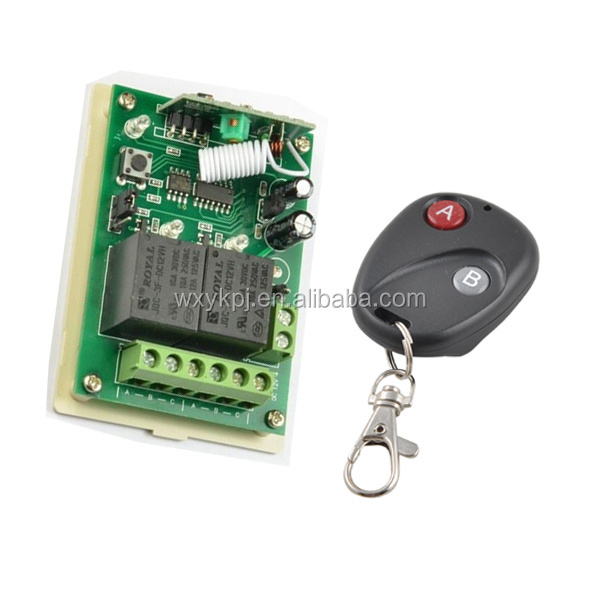

This DC12V 2 channel wireless remote control operates in the 315/433MHz frequency. Just press slightly the button on the remote, you can control universal DC/AC electrical devices. It can be mainly used to control many kinds of lights with voltage of DC0~250V; or motor open/close, such as motor of pump.
Feature:
· Wireless control, easy to install
· Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with D C 0~250 V
· You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
· This switch can learn different coding remote controls(such as 2262,1527,2240 ect.)
· One/several transmitters can control one/several receivers simultaneously.
· If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it won ’ t affect each other.
· Transmitting Frequency: 315MHz / 433MHz
· The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line or dial the code switch coding.
Specification:
Receiver
| Max. Voltage | DC12V |
| Max. Current | 10A |
| Quiescent Current | 0mA |
| Coding type | Learning Code |
| Receive Frequency | 315MHz/433.92MHz ±150KHz |
| Receiving Sensitivity | -95dB |
| Working Way | Jog,Interlock,Self-lock |
| Output Mode | Contact output(AC and DC) |
| PCB Size | 70*50*18mm |
| Launch Distance | 30-100m |
| Working Temperature | -10 to +60 centigrade |
Transmitter
| Working Voltage | DC12V |
| Working Current | 12mA |
| Transmitter Frequency | 315MHz/433.92MHz ±150KHz |
| Transmitting Distance | 30-100m |
| Encoding Type | Fixed Code,Learning Code |
| Encoding Way |
Fixed Code by soldering Learning code by learning |
| Remote size | 50*33*10mm |
Application:
· Garage door control
· Access control system
· Home/Mall Automation systems such door/window/curtain control,lights control ect.
· Kinds of motor control system
