Quick Details
-
Voltage:
-
can customize
-
Power:
-
550w
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
980*800*1300mm
-
Processing Types:
-
Beer,Beverage,Milk
-
Product name:
-
Bottle Cleaner Machine
-
Cleaning type:
-
Water Cleaning
-
Application:
-
Water Cleaning Device
-
Bottle type:
-
plastic ,glass
-
Capacity:
-
1800~2400pcs/h
-
Feature:
-
Easy Operation
-
Working pressure:
-
0.2-0.4Mpa
-
Number of washing head:
-
24,30
-
Package:
-
Wooden Package
-
Material:
-
Stainless Steel
Quick Details
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xing
-
Voltage:
-
can customize
-
Power:
-
550w
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
980*800*1300mm
-
Processing Types:
-
Beer,Beverage,Milk
-
Product name:
-
Bottle Cleaner Machine
-
Cleaning type:
-
Water Cleaning
-
Application:
-
Water Cleaning Device
-
Bottle type:
-
plastic ,glass
-
Capacity:
-
1800~2400pcs/h
-
Feature:
-
Easy Operation
-
Working pressure:
-
0.2-0.4Mpa
-
Number of washing head:
-
24,30
-
Package:
-
Wooden Package
-
Material:
-
Stainless Steel
Product Overview

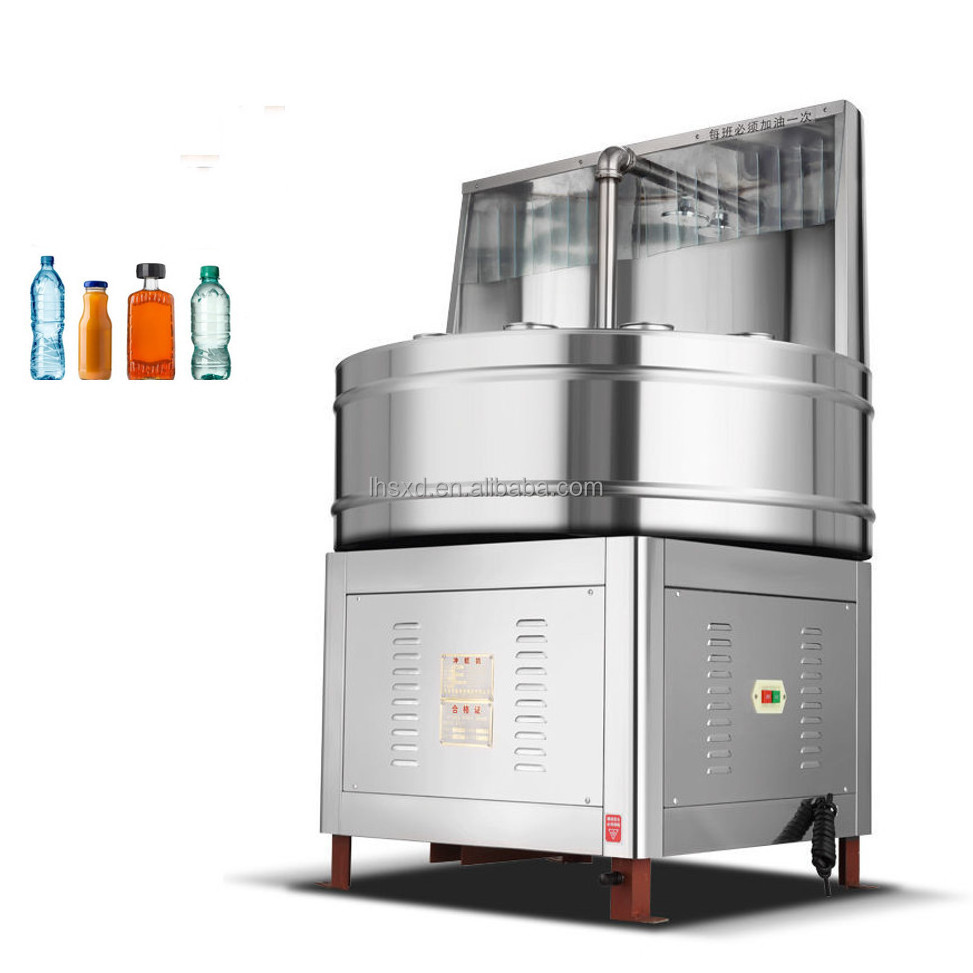

Bottle washing machine
The machine is used in glass bottles, plastic bottles, cans and so on. The machine adopts continuously spraying method to wash bottles, it is suitable for different sizes of bottle. The washing system has the water recycle and filtering device. It could be used for washing the inner and outer of bottle completely.
FEATURES AT A GLANCE
1. The outer wall of the bottle is sprayed, the inner wall is rinsed, and the bottle is cleaned.
2. The use of low-pressure pump booster cycle flush bottle, low water consumption.
3. The structure is simple, easy maintenance, stainless steel water tank, beautiful and generous, corrosion resistance.
4. Save labor and effort, high production efficiency, suitable for a wide range of bottles.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Bottle washing machine
|
|
Power
|
550w
|
|
washing head
|
24 heads
|
|
Capacity
|
1800 bottle /h
|
|
Size
|
600*600*1180mm
|
|
the diameter of bottle
|
30~90mm
|
|
the height of bottle
|
100~350mm
|
Principle of flushing bottles:
1. The outer wall of the bottle is sprayed with a spray nozzle, and the spray pressure can be adjusted by a spray switch. (The pressure of the external water source of this machine needs to be higher than 0.1Mpa. If it is lower than this pressure, you need to bring your own booster pump.)
2. When the inner wall is flushed, the lower valve body is statically fixed on the bracket, and the upper valve body is integrated with the upper plate of the flush bottle through the nozzle and rotates at the same time. When the lower valve body water inlet is connected, the water is flushed through the nozzle to flush the inside of the bottle.
Details Images
Finished product
Packing and shipping:
Company information:
Our services:
1) Highly inspecting equipments in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
