- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1800mm*1000mm
-
Cutting Thickness:
-
0-15MM
-
Control Software:
-
RuiDa
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AnJiang
-
Weight (KG):
-
750 KG
-
Product Name:
-

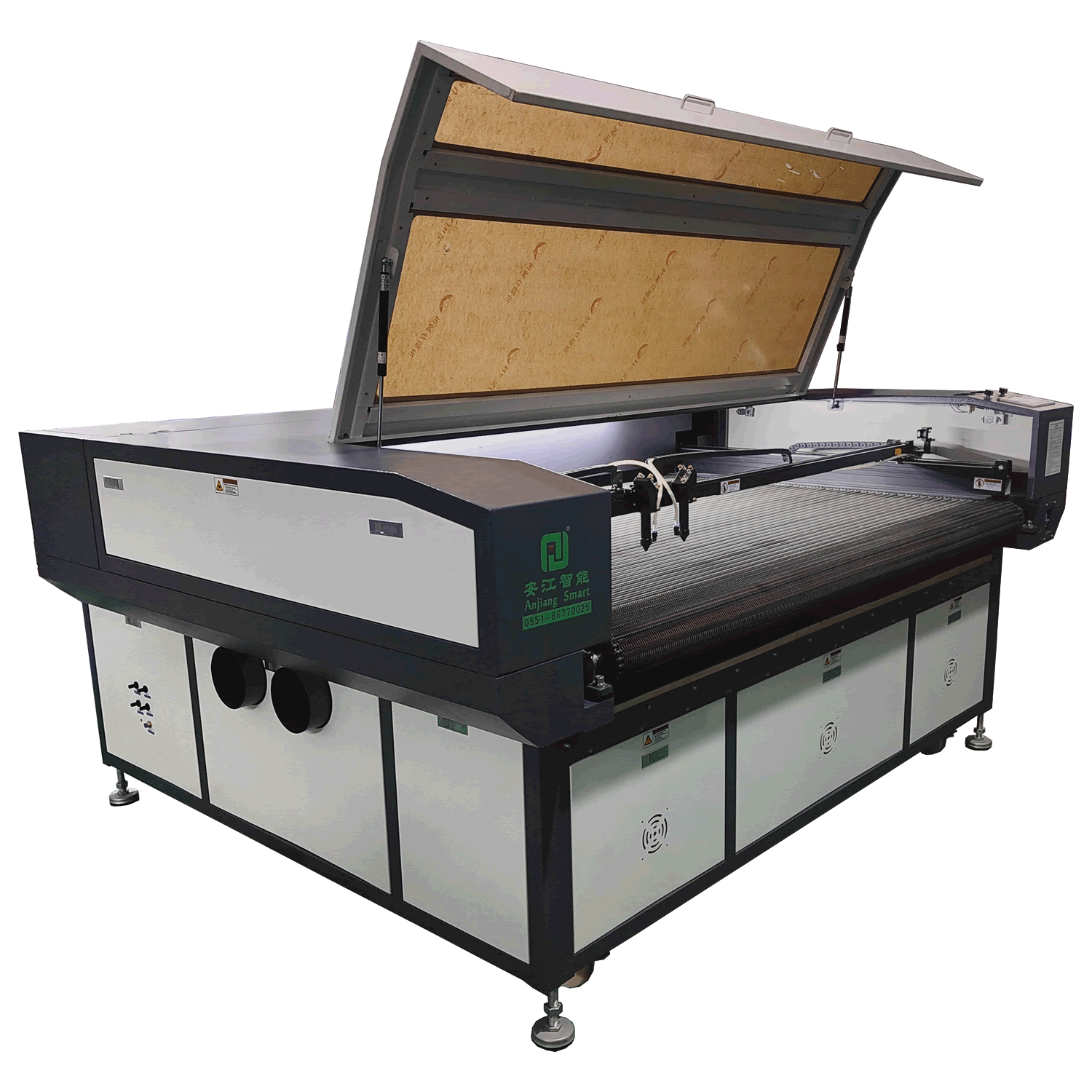

Laser Cutting Engraving Machine
-
Laser Power:
-
80W/90W/100W/120W/130W/150W/180W/200W
-
Laser Tube:
-
RECI co2 glass laser tube
-
Working Table:
-
Blade/Homeycomb/Auto Feeding
-
Chiller:
-
S&A CW3000/CW5200
-
Certification:
-
CE
-
Working Voltage:
-
AC110-220V ±10%.50-60HZ
-
After-sales Service:
-
Video Technical Support, Online Support, Spare Parts
-
Resetting Position Accuracy:
-
±0.05mm
-
Guide Rail Type:
-
Inner/External/Linear
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-40000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1800mm*1000mm
-
Cutting Thickness:
-
0-15MM
-
Control Software:
-
RuiDa
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AnJiang
-
Weight (KG):
-
750 KG
-
Product Name:
-
Laser Cutting Engraving Machine
-
Laser Power:
-
80W/90W/100W/120W/130W/150W/180W/200W
-
Laser Tube:
-
RECI co2 glass laser tube
-
Working Table:
-
Blade/Homeycomb/Auto Feeding
-
Chiller:
-
S&A CW3000/CW5200
-
Certification:
-
CE
-
Working Voltage:
-
AC110-220V ±10%.50-60HZ
-
After-sales Service:
-
Video Technical Support, Online Support, Spare Parts
-
Resetting Position Accuracy:
-
±0.05mm
-
Guide Rail Type:
-
Inner/External/Linear
Video Description
Product Description
|
Technical Parameter
|
|
|
|
Working Area
|
6040、9060、1390、1310、1610、1810、1814
|
|
|
Laser Tube Power
|
60W/80W/100W/120W/130W/150W/180W
|
|
|
Warranty Laser Tube
|
1-1.5years(accoording different power)
|
|
|
Cutting Speed
|
0-800mm/s
|
|
|
Engraving Speed
|
0-1500mm/s
|
|
|
Laser Wave Length
|
1064nm
|
|
|
Lens
|
II-VI
|
|
|
Guide Rail
|
roller or linear (high quality from taiwan)
|
|
|
Driver Type
|
leadshine stepmotor
|
|
|
Cutting Workbentch
|
blade or honeycom
|
|
|
Control System
|
Ruida/AWC
|
|
|
Software
|
CorelDraw/AutoCAD/Others
|
|
|
Graphic Format Supported
|
PLT/AI/BMP/DST/DXF
|
|
|
Repeat Positioning Accuracy
|
＜±0.01mm
|
|
|
Voltage
|
220V±10% 50HZ/110V
|
|
|
Opearate System
|
Win7, Win8, Win 10, Vista and Win 2000
|
|
|
Interface
|
LCD screen with USB interface
|
|
|
Others
|
750W exhaust fan | 380W haili air pump | chiller with compressor
|
|
Accessories Show
Top Laser Cutter Control System - Ruida & AWC
Ruida laser motion controller have better hardware stability, better anti-high voltage, anti-static interference characteristics. It supports a series of functions such as MARK point visual positioning and cutting, large-format panoramic visual cutting, projection cutting, and double-head asynchronous.
AWC laser motion controller added humanized functions such as dynamic trajectory display, positioning point return mode, etc., so that the machine can seamlessly switch the machine while working, effectively improving the machine control accuracy and ensuring the safety of the machine.
Top CO2 Laser Tube - RECI & CDWG
The third generation of RECI laser tube cancels the adjusting screws at both tube ends. Instead, the metal parts are made by high-precise CNC machine. New firing technology is used to join metal parts and glass parts together directly. This new technology makes the high stability in W series laser tubes.
CDWG CO2 lasers are known for their five-layer structure and reducer design, which significantly improves the stability of the laser tube, making CDWG a reliable brand in the industry
S&A -
Precise Temperature Control for Laser Systems and Industrial Applications
CO2 laser is commonly used in laser cutting, laser engraving and laser marking on non-metal materials. But whether it is DC tube (glass) or RF tube(metal), overheating is likely to happen, causing expensive maintenance and affecting the laser output. Therefore, maintaining consistent temperature is of utmost importance to CO2 laser.
We choose S&A CW series CO2 laser chillers do a great job in controlling the temperature of the CO2 laser. They offer cooling capacity ranging from 800W to 30000W and are available in small size and big size. Sizing the chiller is determined by the power or the heat load of the CO2 laser.
Cutting Sample
Our laser cutting machines can be widely used in many industries, such as advertising, signage, sign letters, advertising letters photo frame, gifts & crafts, promotional items, awards, models, architectural models, etc. Cuttable material also contains acrylic, plastic, PMMA, perspex, plexiglass, wood, MDF, fabric, double color board, plywood, ABS, organic glass, paper, paperboard, cardboard, leather, bamboo, rubber sheet, etc.
