Quick Details
-
Brand Name:
-
RUYi
-
Model Number:
-
HGW9-10/630
-
Product name:
-

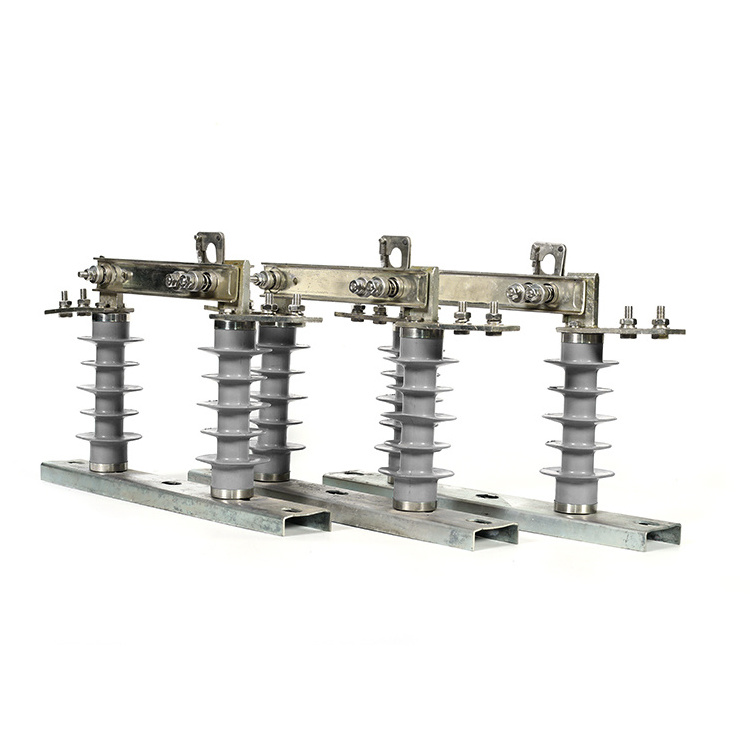

custom fitted outdoor 630a 11kv load break disconnector switch
-
Stander:
-
ISO9001:2015
-
Material:
-
Silicone rubber & Copper
-
Rated voltage:
-
12kv
-
Rated current:
-
630A
-
Application:
-
High Voltage Power Line
-
Feature:
-
Aging resistance,Antifouling, light weight
-
Color::
-
Gray ,red or custom
-
Rated frequency::
-
50Hz or 60HZ
-
Working Temperature::
-
±40℃
Quick Details
-
Number of Pole:
-
3
-
Rated Current:
-
custom
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RUYi
-
Model Number:
-
HGW9-10/630
-
Product name:
-
custom fitted outdoor 630a 11kv load break disconnector switch
-
Stander:
-
ISO9001:2015
-
Material:
-
Silicone rubber & Copper
-
Rated voltage:
-
12kv
-
Rated current:
-
630A
-
Application:
-
High Voltage Power Line
-
Feature:
-
Aging resistance,Antifouling, light weight
-
Color::
-
Gray ,red or custom
-
Rated frequency::
-
50Hz or 60HZ
-
Working Temperature::
-
±40℃
Product Description
| 11kv/33kV Outdoor High-Voltage Disconnect Switch | ||||||||
| TYPE | Rated voltage | Rated current | 4S Heat steady e.c.A | Shock voltage | Impluse withstand voltage | Power-frequency withstand voltage | ||
| kV | A | A | To earth kV | Across the isolating distance | To earth | Across the isolating distance | ||
| kV | kV | kV | ||||||
| RH-B | 11 | 400 | 12500 | 31500 | 75 | 95 | 38 | 42 |
| RH-B | 33 | 630 | 12500 | 31500 | 170 | 195 | 70 | 80 |
Usual Service Condition:
* Power frequency:48Hz ~60Hz
*
Ambient temperature:-40
°C~+40°C
*
Maximum wind speed: not exceed 35m/s
*
Altitude: not exceed 2000m
*
Earthquake intensity: not exceed 8 degrees
*
Ice thickness: not exceed 10 meters
*
Long-term applying voltage does not exceed the maximum coutinuous operating voltage.
Product Display
Product Advantage
Product Application
Production and Quality inspection
