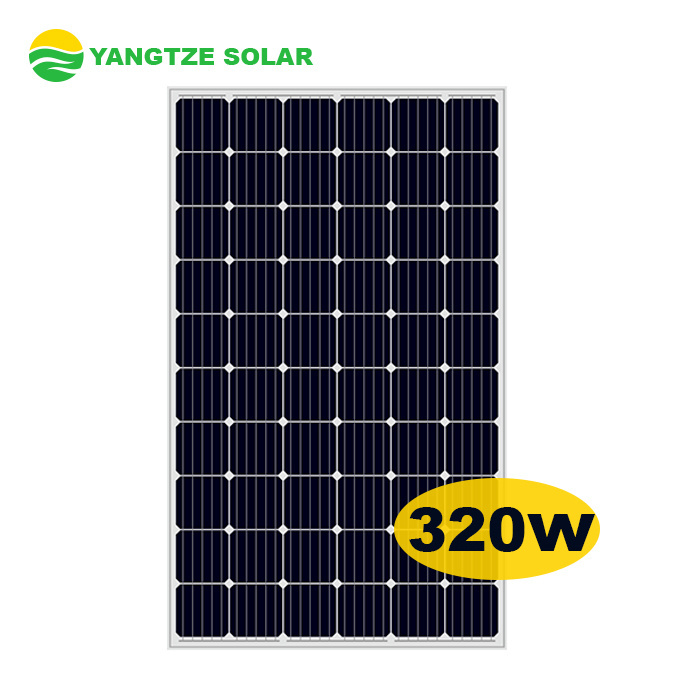

Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS320M-60
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1640x992x30mm
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP65 Waterproof
-
Solar cell:
-
Mono 156mm*156mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Connector:
-
MC 4 Compatible Connector
-
Application:
-
Solar System
-
Frame color:
-
Silvery or Black
-
Backing Color:
-
White or Black or Transparent
-
OEM Order:
-
Acceptable
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
19.67%
-
Warranty:
-
25 years
-
Brand Name:
-
Yangtze Solar
-
Model Number:
-
YS320M-60
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1640x992x30mm
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP65 Waterproof
-
Solar cell:
-
Mono 156mm*156mm
-
Front cover:
-
3.2mm High Transmission Low Iron Tempered Glass
-
Connector:
-
MC 4 Compatible Connector
-
Application:
-
Solar System
-
Frame color:
-
Silvery or Black
-
Backing Color:
-
White or Black or Transparent
-
OEM Order:
-
Acceptable
-
Certificate:
-
TUV/IEC61215/IEC61730/CE/PID/ISO
Product Description
| Model | YS280M-60 | YS290M-60 | YS295M-60 | YS300M-60 | YS310M-60 | YS320M-60 | YS330M-60 |
| Rated Maximum Power at STC | 280W | 290W | 295W | 300W | 310W | 320W | 330W |
| Maximum Power Voltage (Vmp) | 31.8V | 32.2V | 32.4V | 32.6V | 33.0V | 33.4V | 34.0V |
| Maximum Power Current (Imp) | 8.81A | 9.01A | 9.10A | 9.21A | 9.40A | 9.58A | 9.70A |
| Open Circuit Voltage ( Voc) | 38.0V | 38.4V | 39.71V | 40.1V | 40.5V | 40.9V | 41.63V |
| Short Circuit Current (Isc) | 9.45A | 9.68A | 9.61A | 9.72A | 8.92A | 10.14A | 10.26A |
| Module Efficiency | 17.20% | 17.90% | 18.02% | 18.44% | 19.05% | 19.67% | 20.28% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | |||||||
| Mechanical Parameters | |||||||
| Cell Type | Mono-crystalline 156x156mm (6inch) | ||||||
| No. of Cells | 60 (6x10) | ||||||
| Dimension | 1640x992x35mm | ||||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | ||||||
| Junction Box | IP65&IP67 Rated | ||||||
| Output Cable | Section Size: 4mm² , Length: 900mm | ||||||
| Frame | Anodized Aluminum Alloy | ||||||
| No. of Bypass Diodes | 3&6 | ||||||
| Connector | MC4 Compatible | ||||||
| Working Conditions | |||||||
| Maximum System Voltage |
DC 1000V(IEC) / 1500V(IEC) |
||||||
| Operating Temperature | -40°c~+85°c | ||||||
| Maximum Series Fuse | 20A | ||||||
| NOCT | 45±2°c | ||||||
| Application Class | Class A | ||||||
| Temperature Coefficient | |||||||
| Temperature Coefficient of Pmax | -0.39%/°c | ||||||
| Temperature Coefficient of Voc | -0.29%/°c | ||||||
| Temperature Coefficient of Isc | +0.048%/°c | ||||||
