- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
0 - 4500 r.p.m
-
Place of Origin:
-
Henan
-
Brand Name:
-
WKS
-
Voltage:
-
380V/Cutomized
-
Dimension(L*W*H):
-
600*700*1450mm
-
Weight (KG):
-
260 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-
Fine Powder Pulverizer
-
Function:
-
Make Dry Powder
-
Machine Type:
-
Grinder Mill
-
Usage:
-
Food Used
-
After-sales Service Provided:
-
Online Support
-
MOQ:
-
1 Set
-
Keyword:
-
Powder Grinder Herb
-
Capacity:
-
60-150 Kg/h
-
Feature:
-
High Efficiency Easy Operation
-
Final products:
-
10-120 Mesh
Quick Details
-
Output (kg/h):
-
100 - 300 kg/h
-
Feeding Size (mm):
-
0 - 10 mm
-
Output Size (mesh):
-
2 - 120 mesh
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
0 - 4500 r.p.m
-
Place of Origin:
-
Henan
-
Brand Name:
-
WKS
-
Voltage:
-
380V/Cutomized
-
Dimension(L*W*H):
-
600*700*1450mm
-
Weight (KG):
-
260 KG
-
Marketing Type:
-
Hot Product
-
Product name:
-
Fine Powder Pulverizer
-
Function:
-
Make Dry Powder
-
Machine Type:
-
Grinder Mill
-
Usage:
-
Food Used
-
After-sales Service Provided:
-
Online Support
-
MOQ:
-
1 Set
-
Keyword:
-
Powder Grinder Herb
-
Capacity:
-
60-150 Kg/h
-
Feature:
-
High Efficiency Easy Operation
-
Final products:
-
10-120 Mesh
Products Description

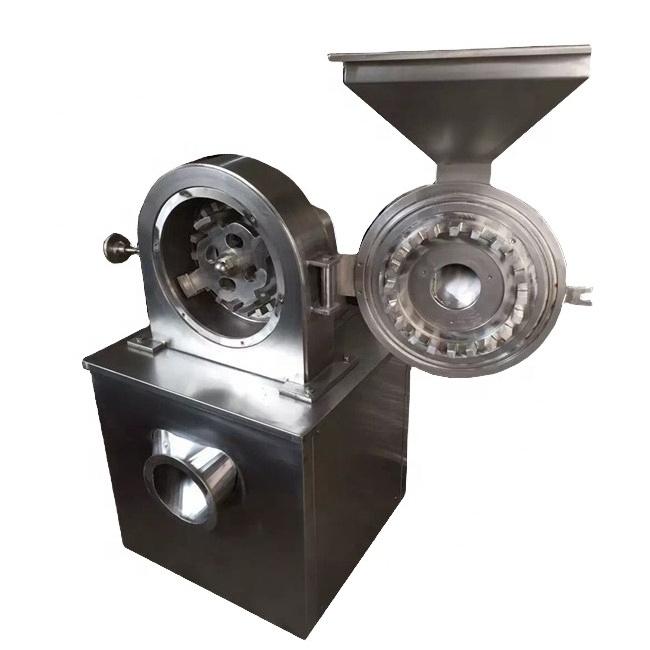

working principle
The machine uses the high-speed relative motion between movable gears to crush materials through the impact between gears, friction and impact between materials. The utility model has the advantages of simple structure, firmness, stable operation and good crushing effect. The crushed material can be directly removed from the grinding chamber of the main engine, and the particle size can be obtained by changing the screen with different apertures.
●
Made of 304（316） stainless steel
●
Food grade design
●
Simple structure and easy to operate
●
Customized
●
Changing the fineness through the screen
●
Universal grinder single machine
●
Cyclone collector
●
Simple operation panel
●
Compact design, easy to move, efficient dust removal
Product Paramenters
|
Model
|
10B
|
20B
|
30B
|
40B
|
50B
|
60B
|
80B
|
100B
|
|
Capacity
(kg/h)
|
10-50
|
60-150
|
100-300
|
160-800
|
200-1000
|
300-1500
|
400-2000
|
500-3000
|
|
Shaft speed
(r/min)
|
6000
|
4500
|
3800
|
3400
|
3200
|
2800
|
2000
|
1500
|
|
Fineness size (mesh）
|
2-120
|
2-120
|
2-120
|
2-120
|
2-120
|
2-120
|
2-120
|
2-120
|
|
Motor power（kW）
|
3
|
4
|
5.5
|
7.5
|
11
|
15
|
22
|
30
|
|
Weight
（kg）
|
85
|
180
|
260
|
360
|
450
|
550
|
850
|
1200
|
|
Dimension
(mm)
|
550*400*
850
|
550*600*
1250
|
600*700*
1450
|
750*800*
1550
|
800*850*
1600
|
1000*900*
1680
|
1100*950*
1960
|
1350*1000*2100
|
Application collocation
Coarse crusher + universal grinder：
Suitable for harder materials, such as kava and Kratom, they are first crushed into small particles through a coarse crusher, and then fall into the feeding hopper of the universal grinder, and finally the powder is obtained
Straight-line design：
This straight-row design can be used for large-capacity materials. A screw feeder can be added below to be directly connected to the packaging machine to achieve efficient production.
Split design
●Large processing capacity
●Cyclone + Pulse Bag Dust Collector
●Dust-free design
●Customized
Application scope
Details Images
Vertical feed hopper
Inclined feed hopper
Different grinding chamber designs
Hammer
Pin
Air cooling
Turbo
Screen mesh
Square feed hopper design
