Quick Details
-
Warranty:
-
1years
-
Place of Origin:
-
China
-
Brand Name:
-
JDR
-
Model Number:
-
FY017
-
MODEL:
-
FY017
-
Function:
-
Driving System
-
Color:
-
sliver
-
Stroke:
-
50mm~1000mm
-
Protection Class:
-
IP67
-
Load capacity:
-
1200N
-
Certification:
-
ce
Quick Details
-
Speed(RPM):
-
2000
-
Continuous Current(A):
-
0.5
-
Efficiency:
-
IE 2
-
Warranty:
-
1years
-
Place of Origin:
-
China
-
Brand Name:
-
JDR
-
Model Number:
-
FY017
-
MODEL:
-
FY017
-
Function:
-
Driving System
-
Color:
-
sliver
-
Stroke:
-
50mm~1000mm
-
Protection Class:
-
IP67
-
Load capacity:
-
1200N
-
Certification:
-
ce
Specification
|
speed
|
5~120mm/s
|
|
Warranty
|
1
|
|
Certification
|
CE
|
|
Place of Origin
|
China
|
|
Brand Name
|
JDR
|
|
Model Number
|
FY017
|
|
Stroke
|
Customize
|
|
Protection Class
|
IP65
|
|
Function
|
Waterproof
|
|
Color
|
sliver
|
|
Type of Duty
|
10%,2min .on/ 18min.off
|
Without Potentiometer or Hall
Built in Potentiometer or Hall
Product Description

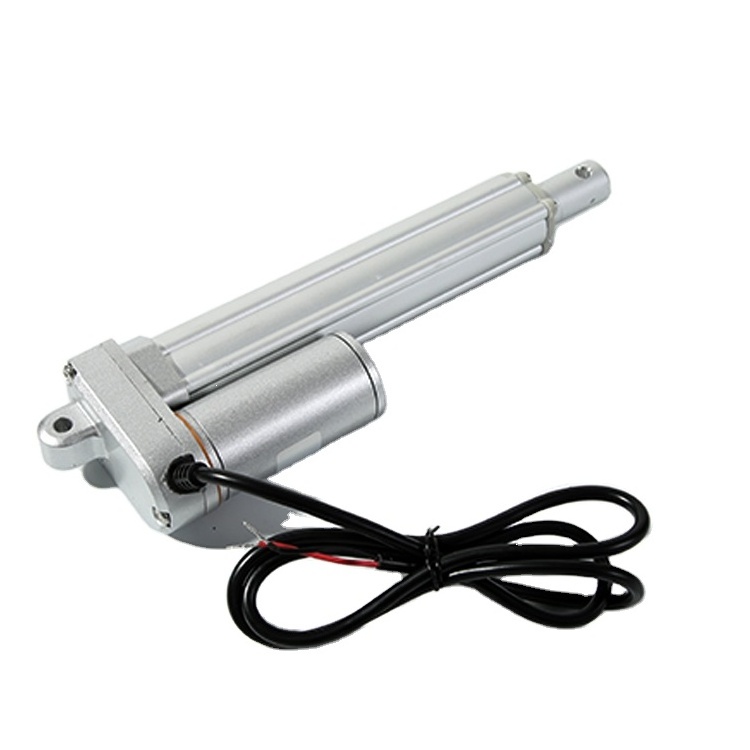

FY017 small electric linear actuator is a product specially developed and designed for the furniture and medical industries. The FY017 electric linear actuator supports customized strokes from 50mm to 1500mm
Product features
1. DC permanent magnet motor, simple and compact structure, made of pure metal stainless steel seamless steel tube, sturdy and durable;
2. Optional input voltage: 12V/24V/36V/48V DC;
3. According to the use requirements, the optional speed is from 5mm/s to 120mm/s;
4. Customizable itinerary (Stroke);
5. Thrust load is 100N to 1200N;
6. Conventional temperature: -15 ℃ to 45 ℃, can reach -40 ℃ to 60 ℃ under special customization;
7. Optional signal feedback type: potentiometer, Hall;
8. With built-in travel switch, there is a good self-locking function, no sliding or slipping;
9. The equipment has an overcurrent protection function;
10. The protection level is IP65:
(1) The product adopts alloy gear, high strength, long life and wear resistance;
(2) Passed CE certification, salt spray, waterproof, temperature test, with anti-corrosion function;
11. The slider can be customized before and after the product, and the selection is flexible and unlimited;
12. This product is widely used; special vehicles, mining properties, environmental sanitation industry, etc.
