3D Fiberglass Woven Fabric

3-D spacer fabric construction is a newly developed concept. The fabric surfaces are strongly connected to each other by the vertical pile fibers which are interwoven with the skins. Therefore, the 3-D spacer fabric can provide good skin-core debonding resistance, excellent durability and superior integrity. In addition, the interstitial space of the construction can be filled up with foams to provide synergistic support with vertical piles. These products have broad application prospects in automobile, Locomotives, aerospace, marine, windmills, building and other industries.

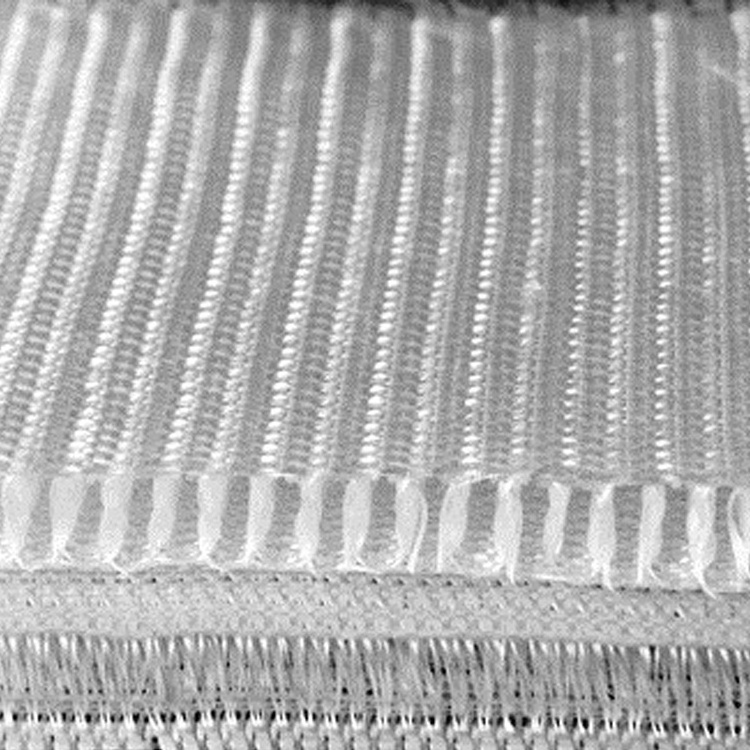

The 3-D spacer fabric consists of two bi-directional woven fabric surfaces, which are mechanically connected with vertical woven piles. And two S-shaped piles combine to form a pillar, 8-shaped in the warp direction and 1-shaped in the weft direction. The 3-D spacer fabric can be made of glass fiber, carbon fiber or basalt fiber. Also their hybrid fabrics can be produced. The range of the pillar height:3-50 mm, the range of the width:≤3000 mm. The designs of structure parameters including the areal density, the height and distribution density of the pillars are flexible. The 3-D spacer fabric composites can provide high skin-core debonding resistance and impact resistance and impact resistance, light weight. high stiffness, excellent.

Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.

Q1.You are a trading company or manufacturer?

We are manufacturer with more than 10 years production experience, and we have our own factory in yuyao

.

Q2.Can you send me a sample? Is it free?

Yes, the samples is free, but the courier charge should be on your side

Q3.Mode of transportation?

By sea or by air

Q4.How about the Delivery time?

Usually around 2-3 weeks after order confirmed

Q5.Can you product the customized goods?

Surely, we can be customized according to your demanding.

Q6.Do you have other production?

Certainly, We, Hitex are supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.

Q7.What kinds of payment you accept?

We accept T/T, D/A, L/C,D/P,O/A
