Quick Details
-
Weight:
-
350kg
-
Size:
-
191x62x190cm
-
Power:
-
2.5
-
Weight (KG):
-
385 kg
-
Chemical dosing system:
-
Need when raw water is with high hardness
-
Pretreatment filter:
-
Quartz sand/activated carbon/water softener/PP filter
-
Control valve:
-
Manual or Automatic
-
Power supply:
-
110V 220V 380V 415V / 1ph or 3ph / 50Hz or 60Hz
-
Optional parts:
-
UV light/ozone generator/water softener
-
Pumps:
-
CNP or Grundfos
-
RO membrane:
-
Import from America
-
Recovery rate:
-
50%-75%
-
salt rejection:
-
97% -99%
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kaiyuan
-
Material:
-
wooden box
-
Weight:
-
350kg
-
Size:
-
191x62x190cm
-
Power:
-
2.5
-
Weight (KG):
-
385 kg
-
Chemical dosing system:
-
Need when raw water is with high hardness
-
Pretreatment filter:
-
Quartz sand/activated carbon/water softener/PP filter
-
Control valve:
-
Manual or Automatic
-
Power supply:
-
110V 220V 380V 415V / 1ph or 3ph / 50Hz or 60Hz
-
Optional parts:
-
UV light/ozone generator/water softener
-
Pumps:
-
CNP or Grundfos
-
RO membrane:
-
Import from America
-
Recovery rate:
-
50%-75%
-
salt rejection:
-
97% -99%

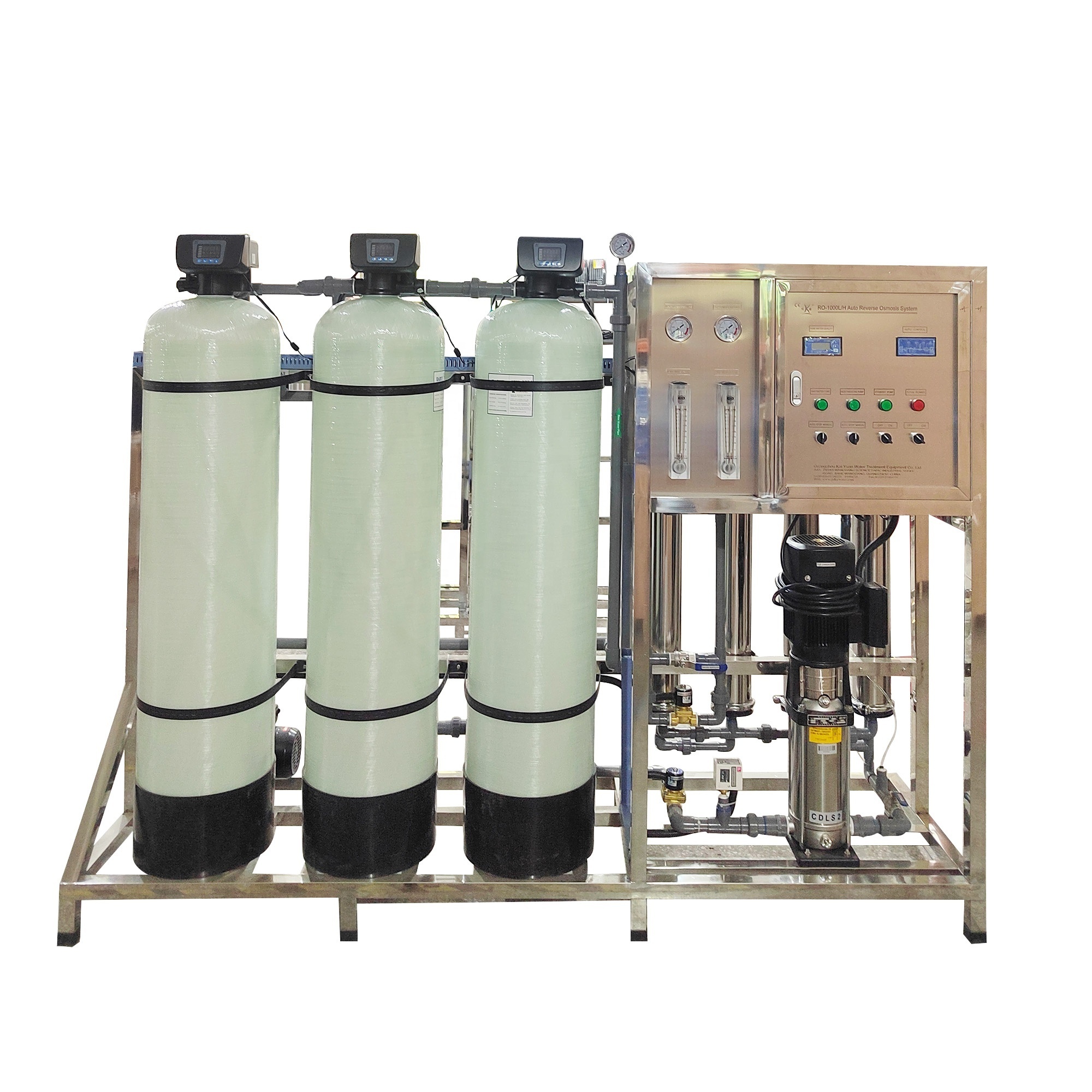

Factory Price USA RO Membrane System Reverse Osmosis 1000LPH Drinking Water Treatment Machine Plant
The reverse osmosis(RO) water treatment plant is an equipment for purifying water with the action of pressure difference of semi permeable membrane. RO membranes can effectively remove majority of organics, harmful substances, bacteria, particulates etc. RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole water, brackish water and seawater, pure water and ultra-pure water production, apply in power stations, electronic industries, electroplating industry, medicine manufactories, hotel, communities, villas, and medical treatment, cosmetic products, drinking bottled water factories, sachet pouch water workshops, beverage factories, hospitals, edible ice macking factories. It is a key equipment for pure water plant.
|
1000LPH RO system |
||
|
|
Model |
KYRO-1000 |
|
Production capacity |
1000 L/Hr |
|
|
Power |
2.5kw |
|
|
Power supply |
AC 380V 50Hz |
|
|
Reverse osmosis (RO)membrane |
LCLE-4040 4pcs USA DOW |
|
|
Membrane housing |
4040 stainless steel 4pcs |
|
|
Raw water pump |
BJZ100/0.75KW |
|
|
Quartz sand filter, activated Carbon filter and water softener |
φ 350×1450 FRP 3pcs |
|
|
Security filter |
20 "× 5μm ,5core |
|
|
High pressure pump |
CDL2-15/1.5KW 1 set Nanfang |
|
|
Activated carbon |
50kg |
|
|
Quartz sand |
150kg |
|
|
resin |
50L |
|
Consumables
| Item | Consumable name | Description and application | Replacement time |
| 1 | Quartz sand | reducing turbidity, suspended matter, organic matter, colloid, ect. | every about 15 to 18 months |
| 2 | Activated carbon | removce the color, free chlorine, organic matter, harmful matter etc. | every about 15 to 18 months |
| 3 | Cation softening resin | reducing water total hardness, make water soft and tasty | every about 2 years |
| 4 | PP filter cartridge | prevent large particles, bacteria, viruses into ro membranes, accuracy is 1micron, or 5micron or 0.22micron | every about 1 to 3 months, depends on water source quality |
| 5 | Reverse osmosis(RO) membranes | can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substance and99% dissolved salts. | every about 2 years |
| 6 | UV light | kill bacteria, virus, keep water fresh and safe for drinking | UV bulb needs to be replaced about 9000hours |
Single stage working process
Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→ sodium-ion exchanger(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer).
