Quick Details
-
Model Number:
-

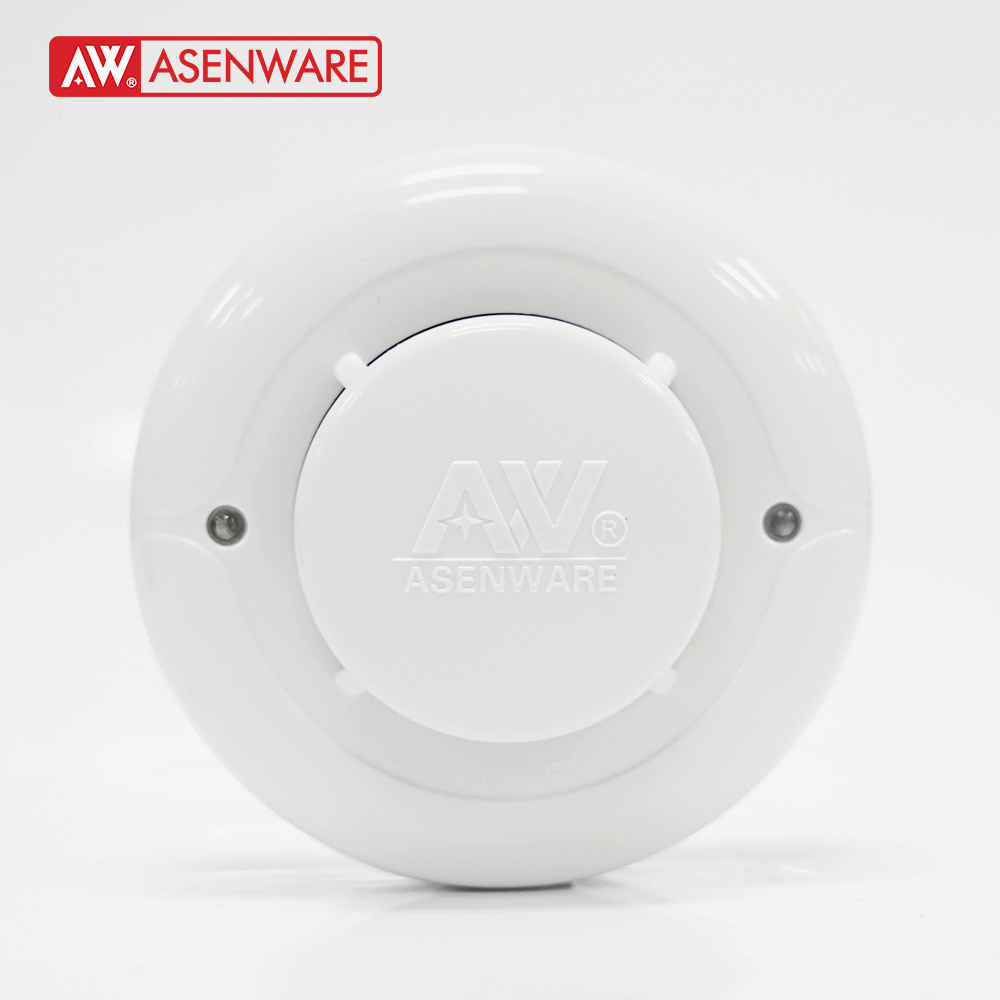

AW-CSD381
-
Battery lifetime:
-
No battery
-
Operating Voltage Range:
-
9 to 28 VDC Non-polarized
-
Standby Current:
-
≤120uA@24VDC
-
Smoke Alarm Sensitivity:
-
0.1-0.15dB/m
-
Height:
-
48.2mm installed in Base
-
Diameter:
-
99.45mm
-
Standard Number ref:
-
EN 54-7:2000
-
Certificate:
-
LPCB
-
Operating voltage:
-
9-28VDC
-
Material:
-
ABS Plastic
-
Warranty:
-
2 years
Quick Details
-
Special Features:
-
Relay
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Asenware
-
Model Number:
-
AW-CSD381
-
Battery lifetime:
-
No battery
-
Operating Voltage Range:
-
9 to 28 VDC Non-polarized
-
Standby Current:
-
≤120uA@24VDC
-
Smoke Alarm Sensitivity:
-
0.1-0.15dB/m
-
Height:
-
48.2mm installed in Base
-
Diameter:
-
99.45mm
-
Standard Number ref:
-
EN 54-7:2000
-
Certificate:
-
LPCB
-
Operating voltage:
-
9-28VDC
-
Material:
-
ABS Plastic
-
Warranty:
-
2 years
Product Description
Specification
|
Brand Name
|
AW
|
|
Model Number
|
AW-CSD381
|
|
Main Voltage
|
Zone 24V or 12V
|
|
Operating current
|
Monitoring status≤120uA, Alarm status≤15mA
|
|
Application
|
For indoor use only
|
|
Wiring
|
The promise of two bus system(Zone +, Zone -)
|
|
Protection Class
|
IP 30
|
|
Smoke Alarm Sensitivity
|
0.1 to 0.15 dB/m
|
|
Class A temperature range
|
-10 to 50°C (14~122°F)
|
|
Humidity
|
5 to 95% RH, non-condensing
|
|
Size（L*W*H）
|
99.5mm* 99.5mm* 48.2mm
|
|
Weight
|
About 114.5 g
|
