Touch Screen Car Security Camera System AI Blind Spot Mirrors Dash 360 Around View Monitor Anti-Theft Oil Mode for Trucks Bus

Touch Screen Car Security Camera System AI Blind Spot Mirrors Dash 360 Around View Monitor Anti-Theft Oil Mode for Trucks Bus

FOB Reference Price: Get Latest Price

≥2 Sets

US $51

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 6w

Place of Origin:: Guangdong, China

Brand Name:: ZX/OEM

Model Number:: DSMP5

Product Name:: 4K 2.5D Touch Monitor System

Language:: Chinese/English/support all language

Night vision:: Top Starlight Night Vision

Application:: Bus, Truck, RV,Harvester,Engineering vehicle,etc

Video Compression:: H.264/H.265

Screen:: 7/10.1/10.36 Inch Touch Screen[4K Picture quality]

Storage:: Support TF Card 128G (maximum)

Display Mode:: 12 different display modes , support full screen mode of each channel

Certification:: CE ROHS FCC CCC

Quick Details

Car Fitment:: Universal

View Angle:: 120°-170°

Function:: Waterproof, NIGHT VIEW, Split Screen, Build-in GSM, Parking Line

Power:: 6w

Place of Origin:: Guangdong, China

Brand Name:: ZX/OEM

Model Number:: DSMP5

Product Name:: 4K 2.5D Touch Monitor System

Language:: Chinese/English/support all language

Night vision:: Top Starlight Night Vision

Application:: Bus, Truck, RV,Harvester,Engineering vehicle,etc

Video Compression:: H.264/H.265

Screen:: 7/10.1/10.36 Inch Touch Screen[4K Picture quality]

Storage:: Support TF Card 128G (maximum)

Display Mode:: 12 different display modes , support full screen mode of each channel

Certification:: CE ROHS FCC CCC

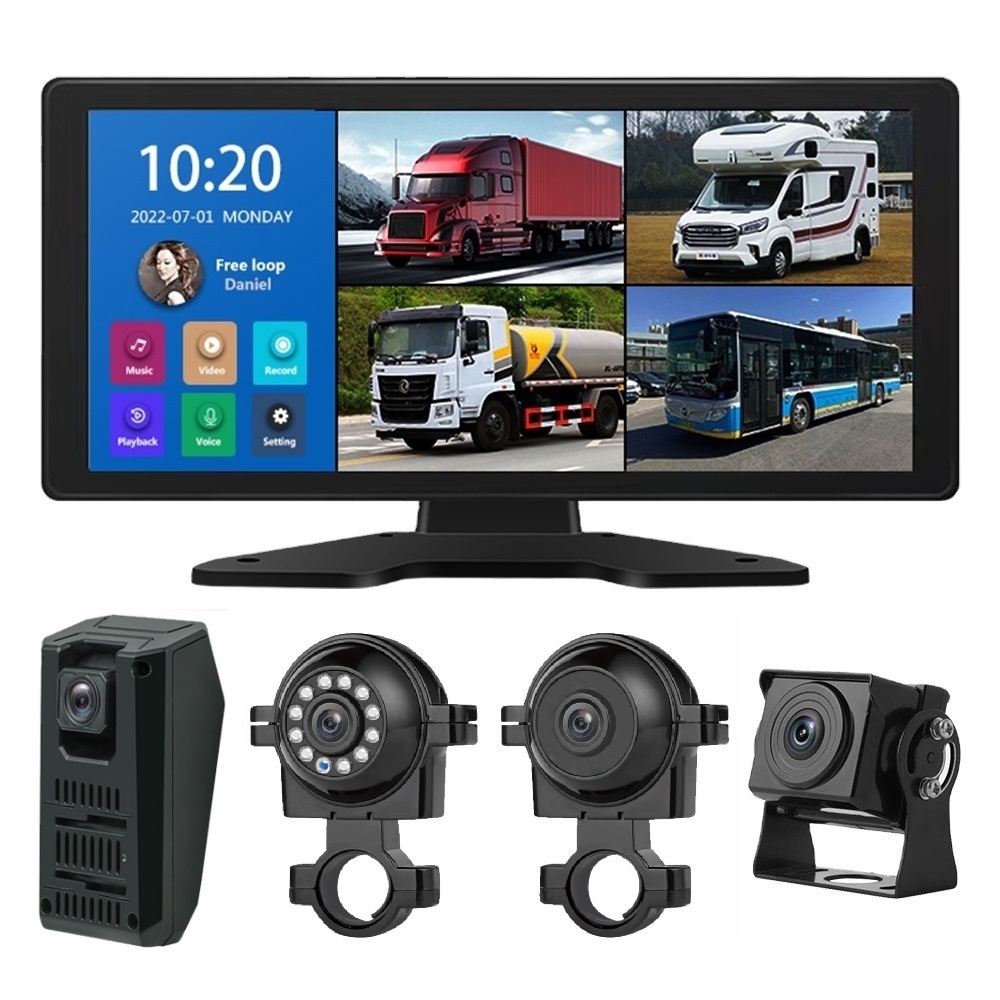

Truck MP5 Dash Cam Kit

1. Loop recording : The display screen can be inserted into a TF card to store data;

2. Upgraded chips : The machine uses high-end chips, which is more stable in use;

3. High-definition picture quality : the host is equipped with a high-definition AHD camera and 4K ultra-clear display;

4. Powerful function : The device comes with MP5 function and built-in speaker, which can be inserted into the U disk to listen to music and watch videos.

5. Convenient to use : The screen not only supports touch control, but it is easy to install and use, and the screens in multiple modes can be switched.

Product Description

Build-in DVR Monitor Specification
Model	7/10.1/10.36inch 4K 2.5D Touch Monitor System
Solution	Quanzhi
Video Compression	H.264/H.265
Video Input	4ch AHD 1080P / 960P / 720P input
		4ch CVBS input
		Compatible with CVBS and AHD signals
		Compatible with PAL and NTSC systems
Video Output	40pin\50pin(TTL\LVDS )interface , 1024 * 600 resolution
Output Resolution	19201080, 1280720, 1024768, 800600
Recording Resolution	1920*1080
Storage	2G-128G TF card
Display Mode	12 different display modes , support full screen mode of each channel
Boot Screen	H, Quad, 3 split mode, dual mode , power –off memory are optional
Record Mode	H, Quad, 3 split mode, Dual mode(default mode : QAUD);
Recording Quality	4K Ultra HD, 2K HD, 1080P Standard, 720P Ordinary are adjustable
Video Mode	Automatic record mode, delay-off 24h record mode
Video Playback	Online playback or playback on computer ( Use USB to back the files or use professional player )
Power Management	Adaptive wide voltage input, reverse short circuit / low voltage / high voltage protection , etc.
Working Voltage	DC 9V-36V
Power Consumption	<7W( doesn't include 4pcs cameras )
Working Temperature	-30°C~+70°C
Operation Mode	IR remote controller , auto trigger
Language	English / German / French / Spanish / Italian / Portuguese / Traditional Chinese / Simplified Chinese/ Japanese

Detailed Functions

1.Full real-time display , videos from 4pcs cameras can be displayed on a screen 2.Support mixed input of AHD1080P/N, AHD 720P/N, CVBS 3.Compatible with NTSC/PAL system 4.High quality resolution 1920x1080P ( include video input, recording resolution ) 5.4ch cameras can record and store videos simultaneously 6.Support video display mode modification , such as H , QUAD, 3 split mode , dual split mode , etc. 7.Support 4chs synchronous online video playback, pause, fast forward, fast back and other operations are available 8.When the storage capacity is full, videos will be overwritten automatically 9.Support video files locking function, and locked files won't be overwritten and deleted 10.As for each video source , brightness, contrast, saturation, color and sharpness can be adjusted independently 11.Independent adjustment of left and right mirror, up and down / 90 degree / 270 degree rotation for each channel . 12.Support open or close the overlay display information, such as time, date, channel character, etc. 13.Support IR remote controller operation 14.With automatic trigger function, reversing light , high beam, brake light , etc. correspond to some operations. 15.Real-time video storage technology, even if the power is off suddenly, the video files won't be lost 16.Independent setting and adjustment of auxiliary line , when encounters barriers, the driver can adjust the auxiliary line based on the vehicle width, to make a decision whether the car can pass the barriers successfully . 17.As for video output, zoom display of top, bottom, left and right margins can be adjusted , to ensure that images can be displayed totally. 18.Power-off memory function, if the power is off suddenly, the last setting screen will be displayed when the power restores.

Our Services & Strength

- Focused on manufacturing auto electronics more than 9 years. - Own logistics support team(Short shipping time &Low shipping costs). - More than 500 available designs. - IP67/IP68/IP69K waterproof (for cameras).

Factory Show

Exhibition

certificate show

Buyer Reviews

FAQ

Q1. How about your delivery time? A: Usually, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q2. How about the shipping? A: We have our own logistics support team, which can provide door-to-door dedicated route service, international express, ocean shipping, air transport, land transport, etc., with faster timeliness and cheaper freight..

Q3. What are your terms of packing? A: Generally, we pack our goods in neutral white boxes and brown cartons. We can make OEM as your request when the order is up to MOQ. Q4. Can it be delivered to FBA amazon warehouse ? A: Yes, and we can print Amazon label and provide UPC code for you. Q5. What are your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q6. Why should I buy from you, not from other suppliers? A: We are a manufacturer of car camera and car rearview monitor systems brand from Shenzhen, China. With more than 9 years of engineering experience. Our products could apply all kinds of vehicle monitors. All of our products have a 100% strictly QC test before delivery. Doing business with us will be a very pleasant experience.
