Quick Details
-
Place of Origin:
-
China, ZHE
-
Brand Name:
-
Yueshun
-
Model Number:
-
YD19-10/L
-
Body Color:
-
Default Black ( Red / Blue / Yellow / Black are op
-
Rating:
-
200mA 24VDC
-
Head shape:
-
Flat Round head
-
Certification:
-
CE Rohs
-
Product name:
-
Anti Vandal Piezo Touch Switch
-
Operation type:
-
Momentary
-
Protection rating:
-
IP68
-
Material:
-
Aluminum Anodized
-
Mounting Hole Size:
-
19mm
Quick Details
-
Protection Level:
-
IP68
-
Max. Current:
-
200mA
-
Max. Voltage:
-
24V DC/ AC
-
Place of Origin:
-
China, ZHE
-
Brand Name:
-
Yueshun
-
Model Number:
-
YD19-10/L
-
Body Color:
-
Default Black ( Red / Blue / Yellow / Black are op
-
Rating:
-
200mA 24VDC
-
Head shape:
-
Flat Round head
-
Certification:
-
CE Rohs
-
Product name:
-
Anti Vandal Piezo Touch Switch
-
Operation type:
-
Momentary
-
Protection rating:
-
IP68
-
Material:
-
Aluminum Anodized
-
Mounting Hole Size:
-
19mm
Order Note：
Our
RTS order
is for
19mm,Black Body Color
,
2 wires of 0.22 square,30mm
,
If you need
Other colors(Red / Blue / Yellow / Black / Green ) ,
pls inform us by message,tks!
Piezo Switches Operating Principle:
When you push it, it has short pulse contact about 50mS and will off soon no matter how long you push it!
Product Display

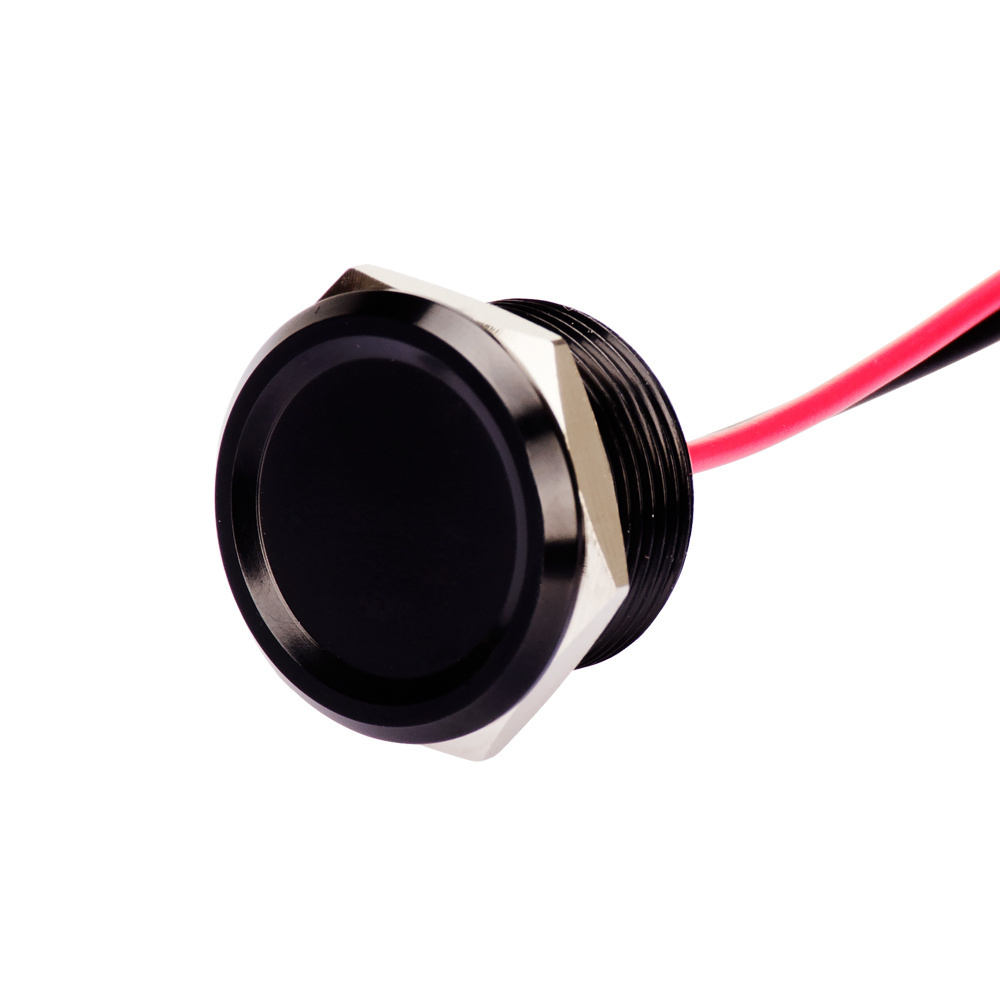

Anti Vandal 19mm Aluminum Anodized Black piezo ip68 Switch Push Button
★All our products have passed the CE, CCC, ROHS etc. certifications ★Our push buttons use 95% silver contacts,with good contact
performance.
★Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★It is a Good quality push button, its push feeling is very good.
★Our push buttons are made of anti-damage metal, not easy to fade, excellent performance,
IP67 protection level.
IP67 protection level.
★It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Product Paramenters
|
|
|
|
Brand Name
|
YUESHUN
|
|
roduct Name
|
Metal Piezo Switch
|
|
Mounting Hole Size
|
19 mm
|
|
Max Switch Rating
|
200mA / 24VDC/AC
|
|
Operation Type
|
Momentary
|
|
Head Shape
|
Flat Round head
|
|
Terminal Type
|
2 wires of 0.22 square,30mm ( Wire length can be customized.)
|
|
Body Color
|
Black
|
|
Body Material
|
Anodized Aluminum
|
|
Pulse Time
|
Less than or equal to 50ms
|
|
IP Degree
|
IP68 IEC529
|
|
Contact Resistance
|
≤ 50mΩ
|
|
Operation Temperature
|
-40℃～ 70℃
|
|
Operation Humidity
|
10%-90%
|
|
Operating Life
|
More than 200000 cycles
|
|
Panel Thickness
|
1-8mm
|
|
Torque
|
5-14Nm
|
|
Operating Pressure
|
About 3-8N
|
