Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P1.9/P2.3/P2.6/P2.9/P3.9/P4.8-17
-
use:
-
Stage Events, Wedding, Conference, Church
-
Pixel Pitch:
-
1.9mm/2.3mm/2.6mm/2.9mm/3.9mm, 1.9mm/2.3mm/2.6mm/2.9mm/3.9mm/4.8mm
-
Specification:
-
Stage led wall
-
Product Name:
-
Stage LED Screen
-
Brightness:
-
>3500cd/sqm
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Module size:
-
250mmx250mm
-
Usage:
-
For Concert/Wedding/Conference
-
Warranty:
-
5 Years
-
Refresh rate:
-
3840Hz
-
Installation:
-
Groound / Hanging Support
-
Screen Dimension:
-
500mm x 500mm/ 500mm x 1000mm
-
Viewing angle:
-
160° H / 160°V
Quick Details
-
Application:
-
Stage LED wall
-
Color:
-
full color
-
Panel Size:
-
250mm x 250mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
P1.9/P2.3/P2.6/P2.9/P3.9/P4.8-17
-
use:
-
Stage Events, Wedding, Conference, Church
-
Pixel Pitch:
-
1.9mm/2.3mm/2.6mm/2.9mm/3.9mm, 1.9mm/2.3mm/2.6mm/2.9mm/3.9mm/4.8mm
-
Specification:
-
Stage led wall
-
Product Name:
-
Stage LED Screen
-
Brightness:
-
>3500cd/sqm
-
Certificate:
-
CE ROHS FCC CCC ISO9001
-
Module size:
-
250mmx250mm
-
Usage:
-
For Concert/Wedding/Conference
-
Warranty:
-
5 Years
-
Refresh rate:
-
3840Hz
-
Installation:
-
Groound / Hanging Support
-
Screen Dimension:
-
500mm x 500mm/ 500mm x 1000mm
-
Viewing angle:
-
160° H / 160°V

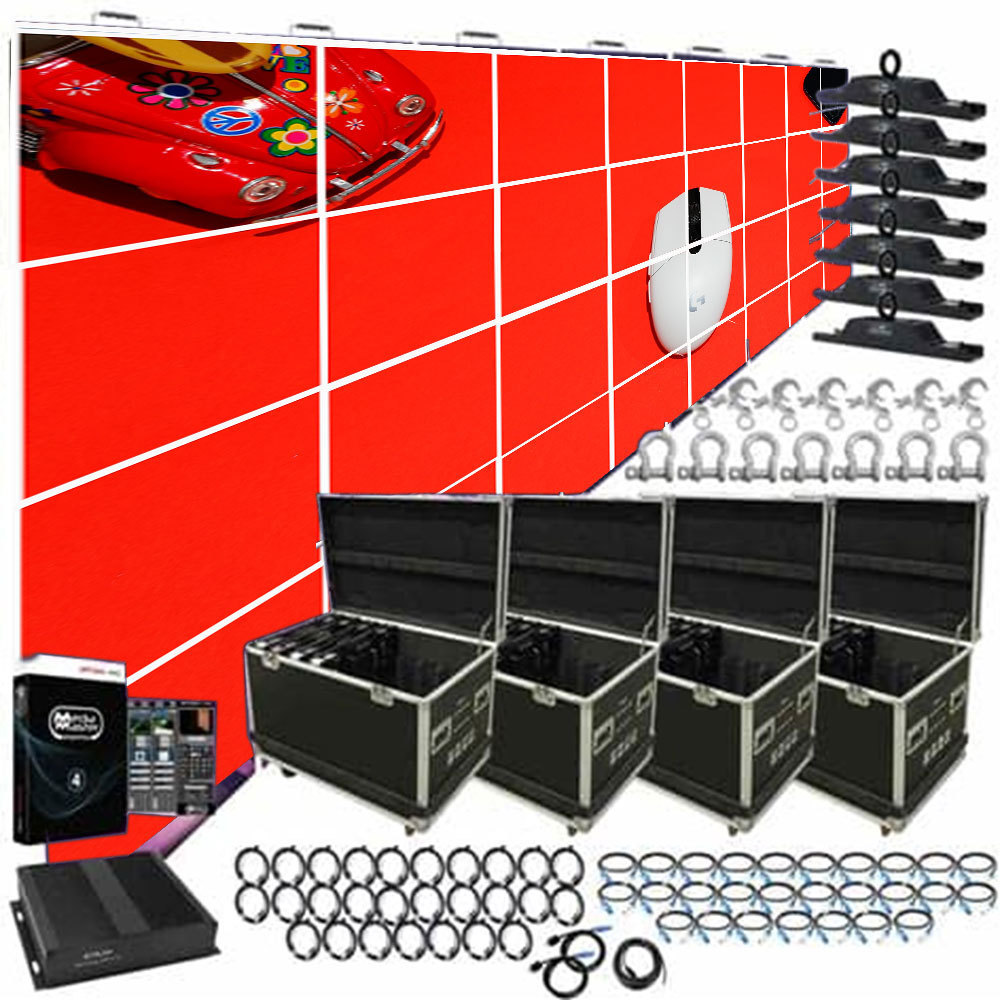

Wedding P2.9 Concert Connect Wall Videowall Curved Dj Led Screen
Why us?
About Products
Product Detail
Product Spec
| Indoor H-series Specification | ||||||
| Model | P1.9 | P2.6 | P2.9 | P3.9 | P4.8 | |
| Pitch | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm | |
| Module Size | 250mm x 250mm | |||||
| Module Resolution | 128 x 128px | 96 x 96px | 84 x 84px | 64 x 64px | 54 x 54px | |
| Cabinet Size | 500mm (h) x 500 (w) mm / 1000mm(h) x 500mm(w) | |||||
| Cabinet Resolution | 256 x 256px | 192 x 192px | 168 x 168px | 128 x 128px | 104 x 104px | |
| Cabinet Structure | Die casting aluminum Cabinet | |||||
| Cabinet Weight | 5.6kg | |||||
| Pixel Density | 262144pixels/sqm | 147456px/sqm | 112896pixels/sqm | 65536pixels/sqm | 43264pixels/sqm | |
| LED Encapsulation Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 | |
| Pixel Configuration | 1R1G1B | |||||
| White Balance Brightness | >800 Nits | |||||
| Drive Mode | 1/32 scan | 1/32 scan | 1/28scan | 1/16scan | 1/13scan | |
| Viewing Angle | Horizontal 160° ; Vertical 160° | |||||
| Color Number | 281 trillion | |||||
| Data Refresh Rate | >3840hz | |||||
| Display Mode | Synchronous with video source | |||||
| Input power | AC 110/220v | |||||
| Working Voltage | DC 5V | |||||
| Power Consumption | Max:600w/sqm; Average: 300w/sqm | |||||
| Transmission Distance | LAN wire ≤100m ; Fiber >100m | |||||
| Ambient Temperature | -20℃~+60℃ | |||||
| Ambient Humidity | 10%—95% | |||||
| Screen Life Span | ≥100000 hours | |||||
| Ingress Protection | IP45 | |||||
Package
Packaged with Flight case or Wooden cases
Customer Feedback
FAQ
Q1. What is the MOQ?
A: 1pc panel, actually we suggest a bigger led video wall to reach better display effect and good resolution.
Q2: Do you provide video processor
?
A: Yes, we provide video processor from Novastar, Linsn,Colorlight..etc as you required
.
Q3:
How to install the rental LED display?
A:
The rental LED display is usually installed by hanging or stacking, we can also provide the structure support if you need.
Q4: Can you provide installation structures?
A:
Yes, we can provide hanging beams for hanging installation, or back bracket for stacking installation.
Q5. Do you test all your goods before delivery?
A: Yes, we have Strict Aging test for 72hrs before delivery.
Q6: How long is your warranty?
A: 5 years, we will be responsible for free repairment or replacement for defective parts.
Q7: What will you do if we have problems related to installation, configuration and use?
A: Our after-sale service team will solve all the problems, until the screen can work normally.
Q8. What is your terms of payment?
A: 30-50% as deposit, Rest payment before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q9. What is your terms of delivery?
A:
EXW, FOB, CIF, CFR, DDP, DDU, customer specified freight forwarder or negotiable mode of transport.
Q10. What is your delivery time?
A: Generally 15-20 days after receiving the deposit. The specific delivery time depends on the quantity of the order.
