Quick Details
-
Output Speed:
-
1.5-1000rpm(customized)
-
Warranty:
-
12months, 18 months
-
Weight (KG):
-
20
-
Place of Origin:
-
China
-
Brand Name:
-
feco
-
Product name:
-
feco
-
Application:
-
automobile assembly
-
Ratio:
-
3-1000
-
Material of Housing:
-
Metal
-
Type:
-
for servo motor
-
Certificate:
-
ISO9001
-
Mounting Position:
-
Vertical (flange Mounted)
-
Heat treatment:
-
Gear Grinding
-
Color:
-
Customer Requirement
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
18-19000N.m
-
Input Speed:
-
1500-3000rpm
-
Output Speed:
-
1.5-1000rpm(customized)
-
Warranty:
-
12months, 18 months
-
Weight (KG):
-
20
-
Place of Origin:
-
China
-
Brand Name:
-
feco
-
Product name:
-
feco
-
Application:
-
automobile assembly
-
Ratio:
-
3-1000
-
Material of Housing:
-
Metal
-
Type:
-
for servo motor
-
Certificate:
-
ISO9001
-
Mounting Position:
-
Vertical (flange Mounted)
-
Heat treatment:
-
Gear Grinding
-
Color:
-
Customer Requirement

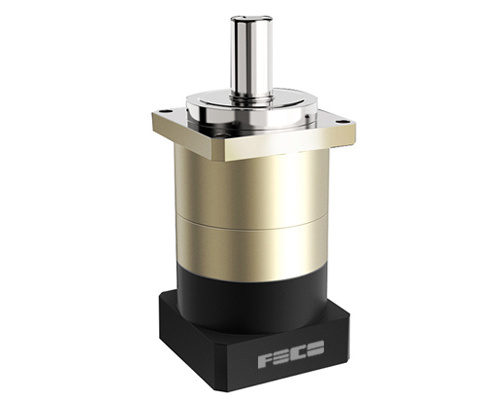

helical high speed planetary gearbox for servo motors
Main Features:
High rigidity :
Carburizing, carbon nitrogen co-carburizing, brilliant quenching heat treatment, the advantages of high productivity, good quenching.
SCM415
steel from Japan is used as raw material.
High precision:
Adopt Japanese
NACHI
and
HAMAYI
advanced equipment.Quality and technology are strictly controlled.
High torque:
(
1)Front shell and tooth ring adopt
integral design
(2)
Integrated design
of planetary frame and output shaft
(3)Bearing
long span design
, ensure the output load capacity
(4)
Full needle rolling
, increase contact surface, increase output torque
(5)Input flange
interchangeability
, ensure the exchange cycle
(6)
Modular design
of motor connection plate and axle liner
Low noise:
The
helical tooth
surface is modified for tooth shape and lead
Reduce the impact and noise of gear on the input and output
Increase gear service life
Long life:
NSK/NTN
bearing:
Steel: Japan steel (
SCM415
)
Grease:
KLUBER
Oil seal:
SKF/TTO
Structure diagram:
helical high speed planetary gearbox for servo motors
helical high speed planetary gearbox for servo motors
CH AC gear motor
91.8% Response Rate
CV AC gear motor
91.8% Response Rate
NMRV worm gearbox
91.8% Response Rate
1. How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
2. What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor informationetc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
3. What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,
escalator,automatic storage equipment, metallurgy, tabacco, environmental protection, logistics and etc.
4. Do you sell motors?
We have stable motor suppliers who have been coperating with us for a long-time. They can provide motors
with high quality.
