Quick Details
-
Brand Name:
-
Shuhe
-
Weight:
-
1000 KG
-
Product name:
-
single-column palletizer
-
Model Number:
-
SH-MD02-1
-
Speed:
-
5-20 boxes/min
-
Weight of loading:
-
2-50 kg
-
Carton size:
-
L150-500*W150-500*H150-500mm(can becustomized)
-
Power:
-
380V 7.5KW 50/60HZ
-
Air consumption:
-
0.4-0.8Mpa
-
Pallet Size:
-
L900-1200*W900-1200mm
-
Dimension:
-
L3600*W2300*H2800mm
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Shuhe
-
Weight:
-
1000 KG
-
Product name:
-
single-column palletizer
-
Model Number:
-
SH-MD02-1
-
Speed:
-
5-20 boxes/min
-
Weight of loading:
-
2-50 kg
-
Carton size:
-
L150-500*W150-500*H150-500mm(can becustomized)
-
Power:
-
380V 7.5KW 50/60HZ
-
Air consumption:
-
0.4-0.8Mpa
-
Pallet Size:
-
L900-1200*W900-1200mm
-
Dimension:
-
L3600*W2300*H2800mm
SH-MD02-1

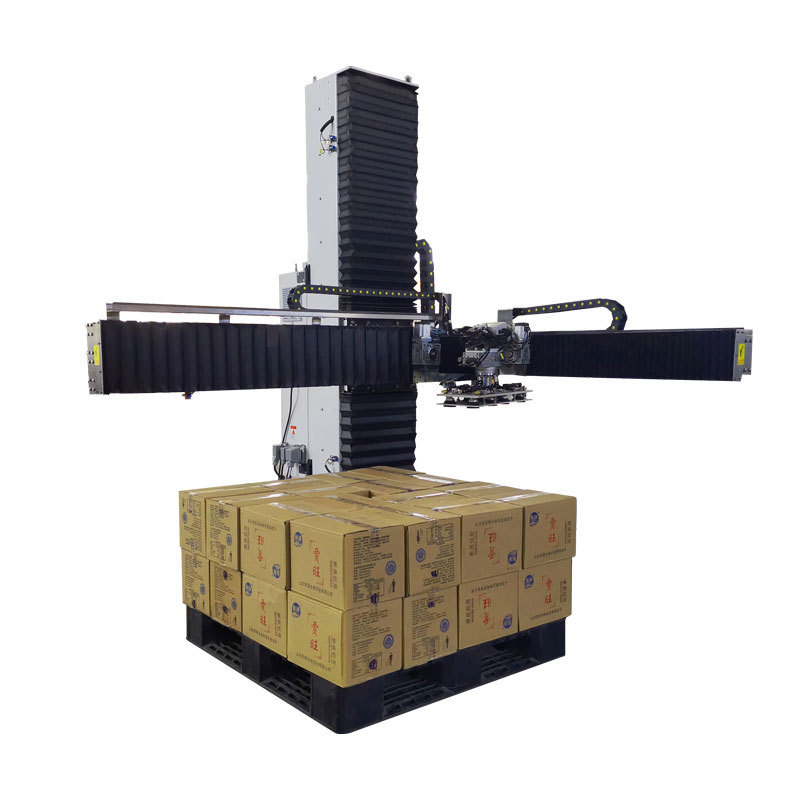

SINGLE-COLUMN PALLETIZER
● This machine consists of Z,X,Y axes and grippers to form a single-column palletizing system, which is designed with the concept of high speed, smoothness, and space-saving, and it can be combined with automatic palletizer, palletizing conveyor line, and inlet/outlet conveyor line to form a set of full-automatic palletizing system, which can greatly reduce the number of laborers and lower the intensity of labor;
● This equipment adopts Exton servo and motion control system, realizing intelligent operation and management, which is simple and easy to master;
● Multi-purpose, quick adjustment, no need to worry about changing the stacked products;
● The rack and pinion produced by Taiwan Jingrui Guangyu Co. is characterized by good anti-wear, high precision and stable transmission; pneumatic components and cylinders from Airtac, low-voltage electrics from Schneider, and photoelectrics from SICK, which is of high quality assurance and reliable performance; the electrical wiring adopts the plug-in connection, which is easy to install;
● Safety doors and hoods are equipped with electrical sensing devices, when the hood door opens, the machine stops working, which can protect the personnel;
● Several stacking methods can be accomplished without replacing the stacking parts, and the built-in software method is used to increase the number of palletized products without further programming;
Scope of application: corrugated cartons, plastic boxes, barrel packages, bag packages.
|
Model
|
SH-MD01-L
|
SH-MD01-H
|
SH-MD02-1
|
SH-MD02-3
|
|||
|
Speed
|
2-50 boxes/min
|
5-25 boxes/min
|
5-20 boxes/min（3：wireable control）
|
|
|||
|
Weight of loading
|
/
|
|
2-50kg
|
|
|||
|
Carton size
|
L20-50*W15-45*H10-45cm（customized）
|
|
L15-50*W15-50*H15-50cm（customized）
|
|
|||
|
Power
|
380V 8KW 50/60HZ
|
380V 10KW 50/60HZ
|
380V 7.5KW 50/60HZ
|
|
|||
|
Air consumption
|
0.4-0.8Mpa
|
|
|
|
|||
|
Pallet size
|
L0.9-1.2*W0.9-1.2m
|
|
|
|
|||
|
Dimension
|
L7*W4.3*H3.3m
|
L7*W4.3*H4.5m
|
L3.6*W2.3*H2.8m
|
L3.6*W2.3*H2.3m
|
|||
|
Weight
|
3000kg
|
|
1000kg
|
|
|||
