Quick Details
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZCAD2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RAY FINE
-
Weight (KG):
-
84 KG
-
Core Components:
-
laser source
-
Laser Power:
-
3W 5W 10W
-
Laser source:
-
INNO Laser Source
-
Applicable Material:
-
Metals Nonmetals
-
Machine type:
-
UV Laser
-
Certification:
-
CE
-
Marking Speed:
-
0-8000mm/s
-
Marking Depth:
-
0-2mm
-
Working area:
-
300mm*300mm
-
Power supply:
-
220V/50HZ 110V/60HZ
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
UV Laser
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
EZCAD2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RAY FINE
-
Weight (KG):
-
84 KG
-
Core Components:
-
laser source
-
Laser Power:
-
3W 5W 10W
-
Laser source:
-
INNO Laser Source
-
Applicable Material:
-
Metals Nonmetals
-
Machine type:
-
UV Laser
-
Certification:
-
CE
-
Marking Speed:
-
0-8000mm/s
-
Marking Depth:
-
0-2mm
-
Working area:
-
300mm*300mm
-
Power supply:
-
220V/50HZ 110V/60HZ
Product Description
Product Features:
1.High-quality machine shell, all-aluminum manufacturing.
2.Electric lift adjustment, more convenient to use.
3. The desktop design is convenient to place in factories, workshops and studios, and the wheeled design makes it easy for one person to move.
2.Electric lift adjustment, more convenient to use.
3. The desktop design is convenient to place in factories, workshops and studios, and the wheeled design makes it easy for one person to move.
4.Permanent: The mark will not fade due to environmental factors (touch, acid and reduced gas, high temperature, low temperature,etc.)
Main Application:
UV laser is suitable for glass, plastic, circuit board cutting, non-metal and metal material marking, high laser precision, small thermal effect of UV laser, and will not damage the surface of processed materials.
Applicable industries:
Advertisement, arts, and crafts, toys, computerized embroidery and clipping, garments, model, and construction industry.
Laser head: Galvanometer has good operational stability, high positioning accuracy, fast marking speed, and strong anti-interference ability.

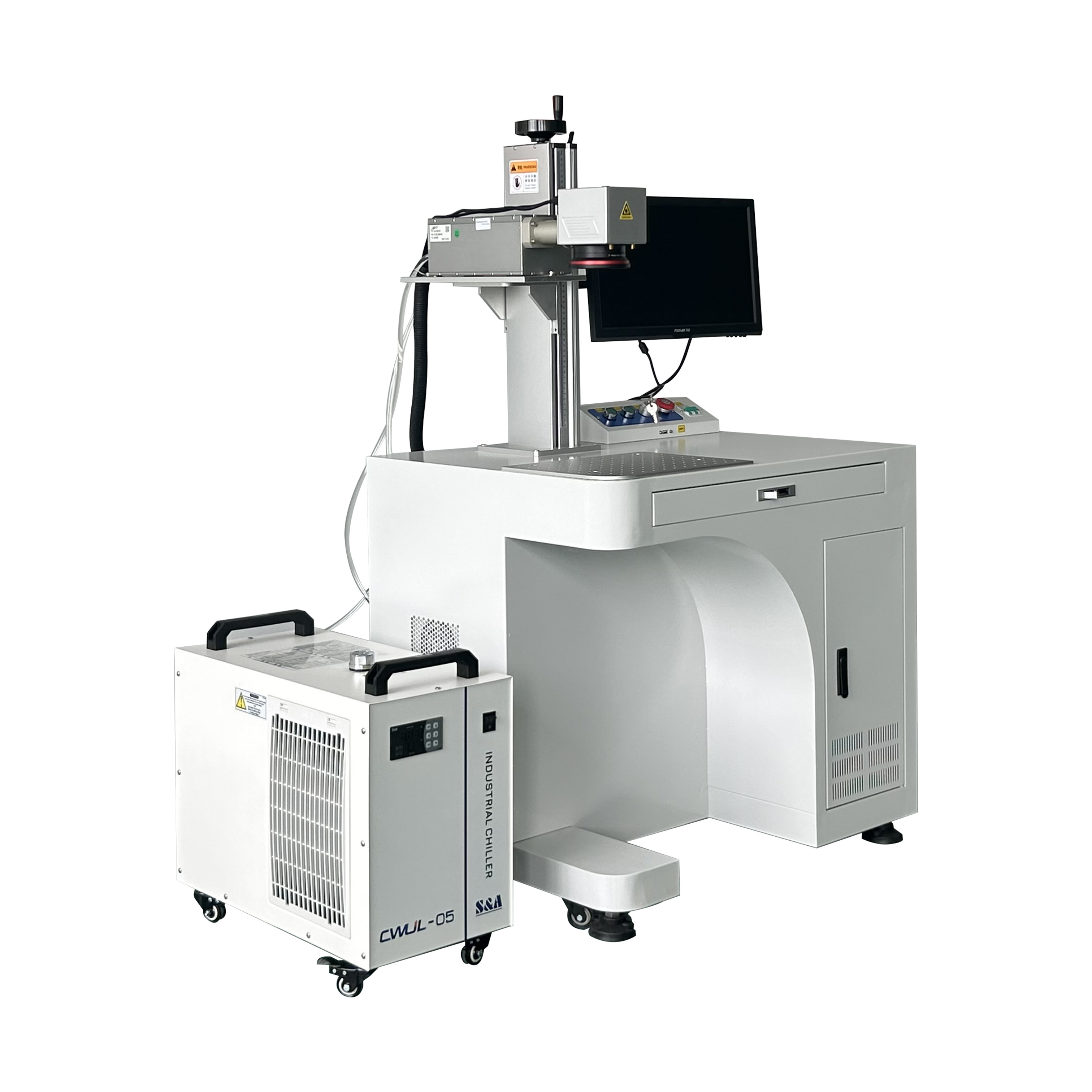

Water chiller
:
Industrial water chiller cool down when the machine works, controlling the temperature within the range, which can extend the working life of the machine and improve the marking accuracy.
Industrial water chiller cool down when the machine works, controlling the temperature within the range, which can extend the working life of the machine and improve the marking accuracy.
Configuration
- One-button start
- Strong anti-interference ability
- Light cost, easy to transport
- All -in -one structure design
- Water-cooled design, suitable for dealing with extreme environments
Genuine EZCAD control system compatible with win7/8/10.
Stable motion control, laser control is correspondingly fast.
Stable motion control, laser control is correspondingly fast.
The galvanometer has good operation stability, high positioning accuracy, fast marking speed and strong anti-interference ability.
Field Lens
Working near the focal plane of the objective lens can effectively reduce the detector size.
Improve the ability of the edge beam incident into the detector.
The standard is 110*110mm, and other models can be selected.
Quickly raise and lower the handle to locate the engraving position. Free lifting, free adjustment. You can also choose to upgrade to an electric lift.
Water chiller cool down when the machine works, controlling the temperature within the range, which can extend the working life of the machine and improve the marking accuracy.
Machine Reference Parameters
|
Model
|
RF-F-3W
|
RF-F-5W
|
|
|
Laser output power
|
3W
|
5W
|
|
|
Laser source band
|
INNO
|
|
|
|
Laser wavelength
|
355nm
|
|
|
|
Average power(Watts)
|
>3W@30kHZ
|
>5W@30kHZ
|
|
|
Energy(µJ)
|
>100
|
>160
|
|
|
Specified repetition rate(kHZ)
|
30
|
|
|
|
Repetition rate(kHZ)
|
30-150
|
|
|
|
Pulse width(ns)
|
<15
|
|
|
|
Beam quality(M²)
|
<1.2
|
|
|
|
Beam roundness(%)
|
>90
|
|
|
|
Beam diameter(mm)
|
~0.45
|
|
|
|
Beam divergence(µRad)
|
<1.5
|
|
|
|
Point stability(prad/C)
|
<20
|
|
|
|
Cooling type
|
Water cooling
|
|
|
|
Marking area
|
70*70-300*300mm
|
|
|
|
Marking depth
|
0-1.0mm
|
|
|
|
Graphic Format Supported
|
AI, PLT, DXF, BMP, JPG,PNG,Dst, Dwg, LAS, DXP
|
|
|
|
Certification
|
CE
|
|
|
|
Warranty
|
2 years
|
|
|
|
Supply voltage
|
AC110V 60HZ / AC220V 50HZ
|
|
|
|
Focus type
|
Double red light
|
|
|
Sample Show
Optional item
Rotary
Adjust the working diameter through the handle.
80/90 rotary(left)
125/160/200 rotary(right)
Metal holder
Clip the marking material to prevent material deformation during the marking process.
Rotary table
Multi station marking of surface can be realized.
Ring rotary 1
Through spring adjustment, convenient for small items marking.
Ring rotary 2
Manual adjustment, convenient for small items marking.
Field lens
110mm*110mm
150mm*150mm
175mm*175mm
200mm*200mm
220mm*220mm
300mm*300mm
XY table
D working table used to make micro move on XY axis.
210mm*150mm
XYZ table
Size: 210mm*150mm*150mm
Stroke: X=100mm Y=50mm Z=120mm
Protective cover
Mounted on the machine, it can reduce the direct laser damage to the eyes.
Cyclops camera
It can easily get the mark position on the computer: draw the mark there.
Safety glasses
Reduce damage to the eyes.
Auto focus
It can focus automatically without manual focusing. It includes z-axis drive system and distance sensor.
Packing and Shipping
1. Collect all accessories and spare parts one by one according to the order list, and double check all parts again to make sure all parts are included.
2. Our packaging standards:
+ thick cling film
+ six-sided pearl cotton
+ High strength wooden box
+ Pack the belt and then secure the machine to ensure the machine is safe during transport.
3. Paste the shipping mark to ensure that the buyer can easily identify the correct machine
4. A safety sign can be used to remind the transporter to keep our equipment in the course of transportation.
We will give away the following products for free：Inner Hexagon, Foot Switch, Power Cable, USB Flash Drive, Goggles, Ruler, Laser Inspect Report.
FAQ
|
Q1:How to choose machine?
|
|
|
|
|
||||
|
A1: you can tell us your working material, detail work by picture or video so that we can recommend the most suitable model foryou.
|
|
|
|
|
||||
|
Q2:Are you a factory or trading company?
|
|
|
|
|
||||
|
A2: We are the manufacturer. as only the machine made by ourselves, quality can be trusted, and most important thing is we can do better service after sales. We know how to fix the problem in each parts easily. So welcome to visit to our factory.
|
|
|
|
|
||||
|
Q3:what's the payment term?
|
|
|
|
|
||||
|
A3: we accept: TT, Alibaba trade assurance order etc. 100% of total amount in advance Or 30% deposit in advance and 70% balance before delivery.
|
|
|
|
|
||||
|
Q4: How about the delivery time?
|
|
|
|
|
||||
|
A4: For normal machines we can send out the machine within 5-7 days after receive the full payment. For non standard machines and customized machines according to client's specific requirements, it would be 15 to 30 days.
|
|
|
|
|
||||
|
Q5: how can i know your machine is work well?
|
|
|
|
|
||||
|
A5:Before delivery , we have tested every machine and shoot some test video for you. If you have special production condition , we can adjust machine for you according to your work requirements.
|
|
|
|
|
||||
|
Q6: how can i get support from you ?
|
|
|
|
|
||||
|
A6:Our engineers are online for 24 hours, they can check the problems and give you solution very soon. If you don’t know how to use the machine, We have English manual and CD video for machine using and maintaining , that will be delivery with machine. And we supply service through email, telephone, online, WhatsApp skype etc. Or If you’re interesting come to China, we will offer you free training until you can use machine freely.
|
|
|
|
|
||||
