Quick Details
-
Product Name:
-
Mini Magnetic Lock
-
Input Voltage:
-
12V DC± 10%
-
Lock Size:
-
80L*37W*24H(mm)
-
Armature Plate Dimension:
-
70L*33W*9H(mm)
-
Holding Force:
-
60 kg (120 libras)
-
Application:
-
File Cabinet ,Disply Cabinet
-
Operating Temp:
-
-10~+55℃
-
Current Draw:
-
110mA
Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
VIANS
-
Model Number:
-
TK-60A
-
Product Name:
-
Mini Magnetic Lock
-
Input Voltage:
-
12V DC± 10%
-
Lock Size:
-
80L*37W*24H(mm)
-
Armature Plate Dimension:
-
70L*33W*9H(mm)
-
Holding Force:
-
60 kg (120 libras)
-
Application:
-
File Cabinet ,Disply Cabinet
-
Operating Temp:
-
-10~+55℃
-
Current Draw:
-
110mA
Specification
|
item
|
value
|
|
Place of Origin
|
GUA
|
|
Brand Name
|
VIANS
|
|
Model Number
|
TK-60A
|
|
Certification
|
CE/FCC/Rohs
|
|
Nombre del producto
|
Mini cerradura magnetica de 60 kg
|
|
Voltaje de entrada
|
12V DC± 10%
|
|
Corriente de arranque
|
300 mA
|
|
Corriente de trabajo
|
120 mA
|
|
Línea eléctrica
|
Negro (-) Rojo (+)
|
|
Tipo de seguridad
|
Apague para abrir
|
|
Tamaño de la cerradura
|
80L*37W*24H(mm)
|
|
Tamaño de la placa de armadura
|
70L*33W*9H(mm)
|
|
Fuerza de sujeción
|
60 kg (120 libras)
|
|
Tipo de puerta aplicable
|
archivador, vitrina
|
Product Description
Description:

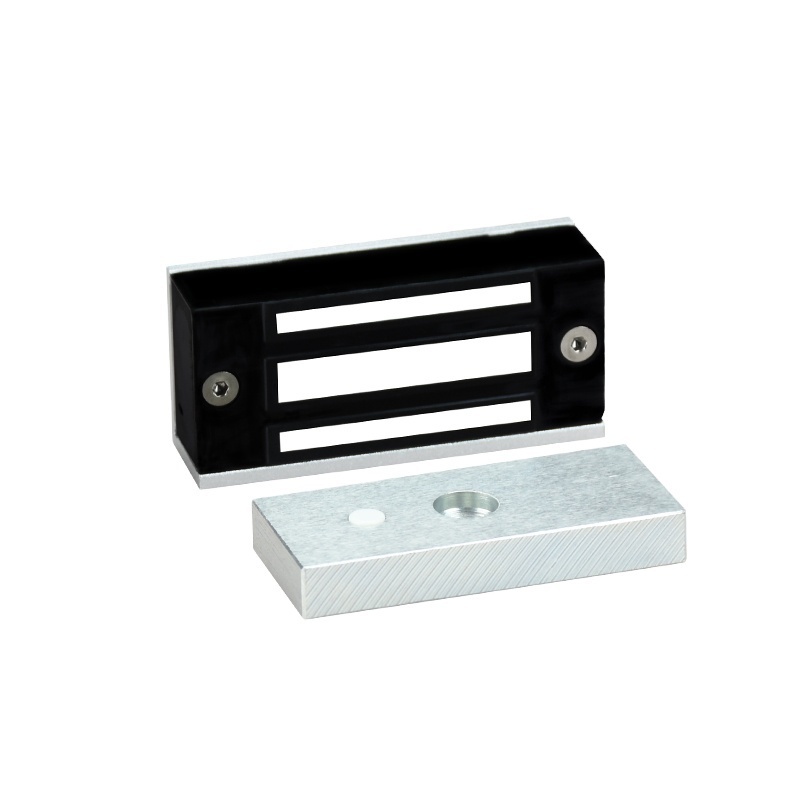

TK-60A magnetic lock can be installed easily without any complex procedure owing to its simple structure.
60kg (120lbs) maximum suction force and built-in reverse current protection device make this magnetic lock have a good
performance.
Made of premium aluminum alloy material, the magnetic lock is anti-oxidation and corrosion-resistant.
The length of the magnetic lock is 8cm, the width is 3.8cm, the height is 2.3cm. The length of the iron plate is 7.5cm, the width is 3.9cm, the height is 1cm.
It is suitable for access control system, building intercom system and can be used for single door, glass cabinet, file cabinet, shopping cabinet, etc. There are several ways to open and close the door, such as by buttons, remote control, etc.
TK-60A magnetic lock can be installed easily without any complex procedure owing to its simple structure.
60kg (120lbs) maximum suction force and built-in reverse current protection device make this magnetic lock have a good
performance.
Made of premium aluminum alloy material, the magnetic lock is anti-oxidation and corrosion-resistant.
The length of the magnetic lock is 8cm, the width is 3.8cm, the height is 2.3cm. The length of the iron plate is 7.5cm, the width is 3.9cm, the height is 1cm.
It is suitable for access control system, building intercom system and can be used for single door, glass cabinet, file cabinet, shopping cabinet, etc. There are several ways to open and close the door, such as by buttons, remote control, etc.
