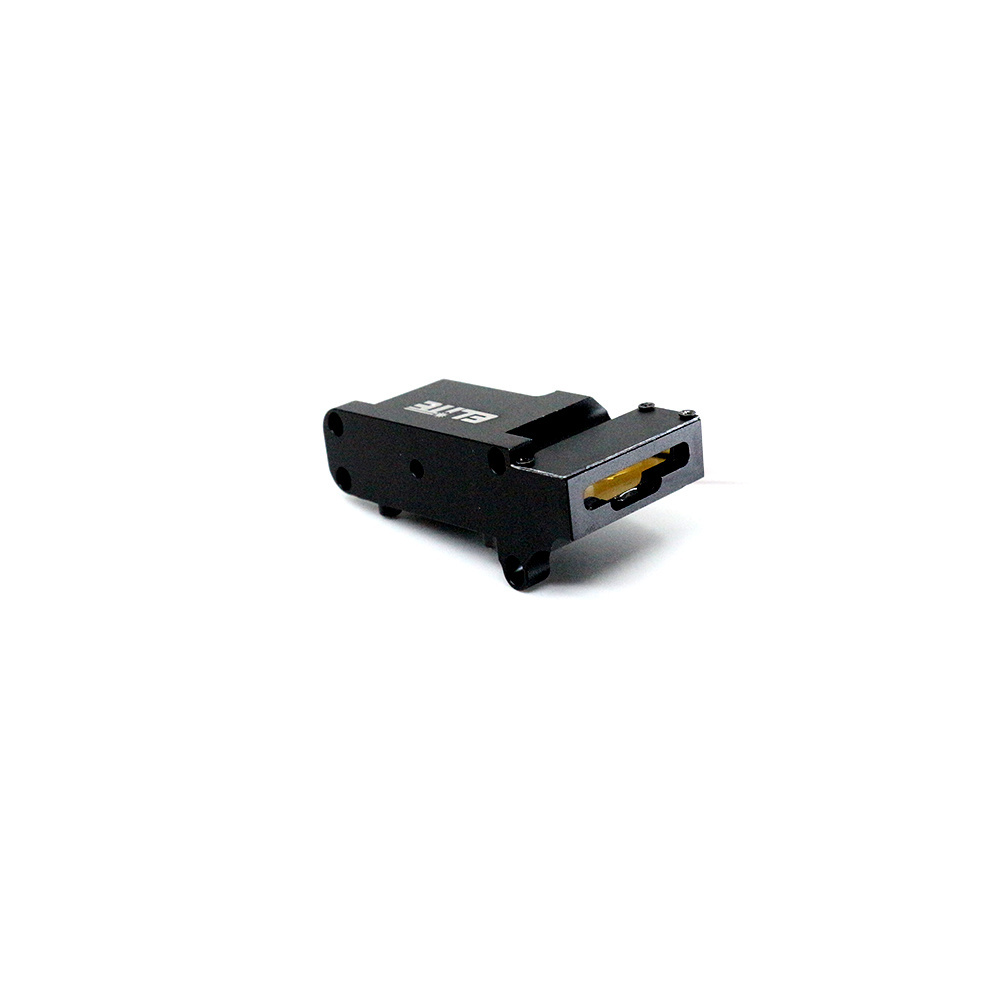

Uniform line laser becomes the first choice when it comes to reliably illuminating and precision measurement. ln addition, the tool-free focus function allows easy, manual adjustment for the perfect working distance.
Examples of use:
1.PCB inspection
2.Dimensional accuracy test
3.Measuring steel slabs
4.Tire tread measurement
5.Read code
6.Laser triangulation
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ELITE&OEM
-
Applicable Industries:
-
Laser industry, Machine Vision, Industrial Inspection
-
Weight (KG):
-
0.01 KG
-
Wavelength:
-
405nm-850nm
-
Output Power:
-
≤500mw
-
Transverse mode:
-
Single mode, Multimode
-
Laser Drive Modes:
-
CW, Analog Modulation, Digital Modulation
-
Operating Current:
-
<500mA
-
Operating Temperature:
-
-20°C ~ 60℃
-
Storage Temperature:
-
-30°℃~60℃
-
MTBF:
-
>10,000 Hours
-
MOQ:
-
1 Piece
-
Customization:
-
Accept
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Spare Parts Type:
-
Laser Module
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
ELITE&OEM
-
Applicable Industries:
-
Laser industry, Machine Vision, Industrial Inspection
-
Weight (KG):
-
0.01 KG
-
Wavelength:
-
405nm-850nm
-
Output Power:
-
≤500mw
-
Transverse mode:
-
Single mode, Multimode
-
Laser Drive Modes:
-
CW, Analog Modulation, Digital Modulation
-
Operating Current:
-
<500mA
-
Operating Temperature:
-
-20°C ~ 60℃
-
Storage Temperature:
-
-30°℃~60℃
-
MTBF:
-
>10,000 Hours
-
MOQ:
-
1 Piece
-
Customization:
-
Accept
|
Specification
|
Special Lens
|
|
|
|
|
|
|
||||||
|
Wavelength(nm)
|
405, 450, 488, 505, 635, 650, 685, 785, 808, 830, 850
|
|
|
|
|
|
|
||||||
|
Wavelength Tolerance(nm)
|
±5.0
|
|
|
|
|
|
|
||||||
|
Output Power(mW)
|
10, 20, 30, 50, 80, 100, 150, 200, 400(Custom)
|
|
|
|
|
|
|
||||||
|
Spatial Mode
|
Single Transverse Mode, Multi Transverse Mode
|
|
|
|
|
|
|
||||||
|
Line Thickness at 1/e
2
(Line Width/Beam Width)
|
10μm@30nm, 20μm@50nm, 30μm@80nm,
40μm@100nm, 70μm@200nm, 100μm@300nm
|
|
|
|
|
|
|
||||||
|
Fan Angles
|
10°, 20°, 30°, 45°, 60°, 75°
|
|
|
|
|
|
|
||||||
|
Straightness
|
≤0.10%
|
|
|
|
|
|
|
||||||
|
Relative Intensity(%)
|
>80%
|
|
|
|
|
|
|
||||||
|
Laser Drive Modes
|
CW, Analog Modulation, Digital Modulation, Computer Control
|
|
|
|
|
|
|
||||||
|
Operating Voltage
|
5.0VDC, 9.0VDC, 12.0VDC
|
|
|
|
|
|
|
||||||
|
Operating Current
|
<500mA
|
|
|
|
|
|
|
||||||
|
Input Impedance
|
>1 kohl
|
|
|
|
|
|
|
||||||
|
Beam Angle
|
<3.0 mrad
|
|
|
|
|
|
|
||||||
|
ESD Protection
|
Level 4
|
|
|
|
|
|
|
||||||
|
Operating Temperature
|
-20℃ to 60℃
|
|
|
|
|
|
|
||||||
|
Storage Temperature
|
-30℃ to 60℃
|
|
|
|
|
|
|
||||||
|
MTBF
|
>10,000hours
|
|
|
|
|
|
|
||||||
Stable output power
High precision for surface detect detection
High reliability, wide voltage working range
Precision inspection of object surface defects
Superior line
High pointing stability
High pointing stability
