Quick Details
-
Power:
-
45kw-130kw
-
Weight:
-
400 KG
-
Material:
-
SUS304 Stainless Steel
-
Function:
-
Food Processing
-
Product name:
-
Fried Instant noodle machine
-
Color:
-
Silver
-
Application:
-
Food Processing Units
-
Keywords:
-
Noodel Making Machine
-
After Warranty Service:
-
Video Technical Support Online
-
Certification:
-
ISO.CE
-
Processing Types:
-
Automatic / Semi-auto
Quick Details
-
Place of Origin:
-
Henan,China
-
Brand Name:
-
B.R.O
-
Voltage:
-
380V/50HZ
-
Power:
-
45kw-130kw
-
Weight:
-
400 KG
-
Material:
-
SUS304 Stainless Steel
-
Function:
-
Food Processing
-
Product name:
-
Fried Instant noodle machine
-
Color:
-
Silver
-
Application:
-
Food Processing Units
-
Keywords:
-
Noodel Making Machine
-
After Warranty Service:
-
Video Technical Support Online
-
Certification:
-
ISO.CE
-
Processing Types:
-
Automatic / Semi-auto
Product Description

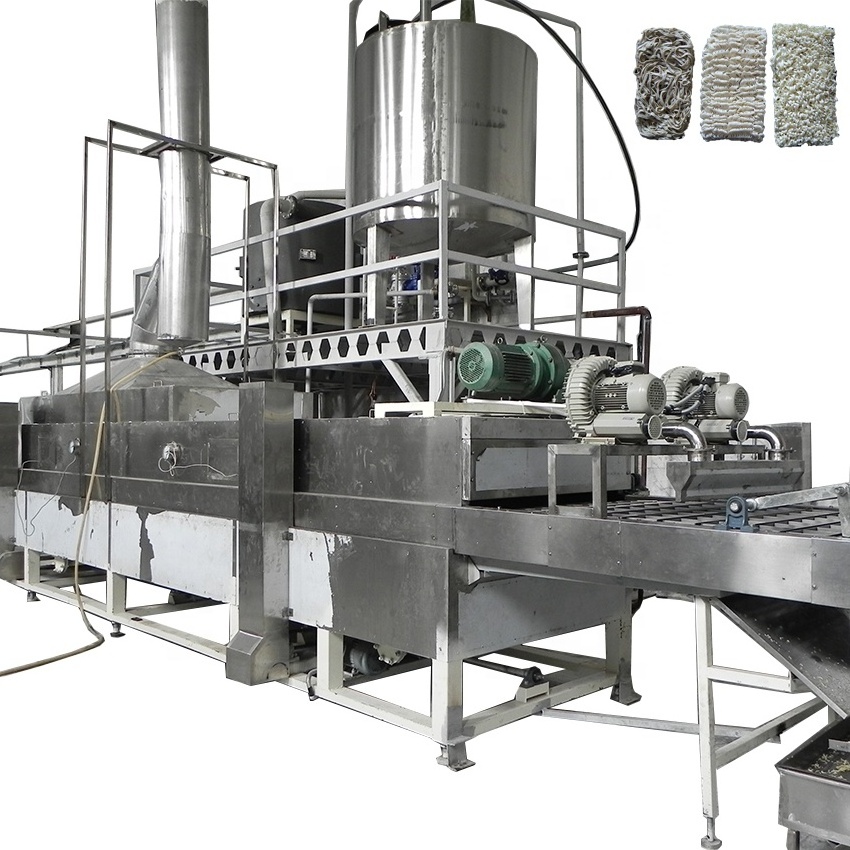

Fried Instant Noodle Production Line
The fried instant noodle production line has perfect technology, compact structure, novel design, stable and reliable performance. The production from flour to finished product is automatically completed at one time, with high automation procedures, simple operation, moderate output, energy saving.It is especially suitable for large-sized food companies.
Specification
|
Model
|
Capacity(KG/H)
|
Install Power(KW)
|
Overall Size(M)
|
|
BFP-2Y/C
|
150
|
45
|
40*5*5
|
|
BFP-6Y/C
|
450
|
58
|
45*5*5
|
|
BFP-10Y/C
|
750
|
72
|
55*5*5
|
|
BFP-14Y/C
|
1000
|
80
|
59*5*5
|
|
BFP-18Y/C
|
1400
|
95
|
65*5*5
|
|
BFP-22Y/C
|
1700
|
108
|
72*5*5
|
|
BFP-26Y/C
|
2000
|
128
|
90*5*5
|
Processing Flow
Here is the reference draft drawings. We can customize the whole production line according to your specific size and scale.
Details Images
DOUGH MIXER
CAPACITY:50-350KG PER BATCH
MATERIAL: SUS304
FUNCTION: TO MAKE FLOUR WITH WATER COMPLETELY
MAIN PARAMETERS: MIXING TIME: 15-20MINS
WATER CONTENT: 11-14%
WATER ADD: 30-35%
ALKALI MIXING TANK
CAPACITY:500-1000KG PER TANK
MATERIAL: SUS304/316
FUNCTION: TO MIX WATER WITH SALT AND ADDITIVES
MAIN PARAMETERS: MIXING TIME: 10MINS
WATER CONTENT: PURED WATER BETTER
MIXER PLATFORM
SIZE: 6X6M OR 8X8M
MATERIAL: CARBON STEEL
FUNCTION: TO PUT THE MIXER AND ALKALI TANK
MAIN PARAMETERS: STRONG ENOUGH FOR 2000KG PER SQM
CONTINUOUS DOUGH ROLLING MACHINE
ROLLER WIDTH: 200-1500MM
MATERIAL: ALLOY STEEL OR SUS304
FUNCTION: TO ROLL THE DROUGH FROM 14MM TO 1MM THICKNESS
MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM
ROLLING SPEED: 7M-10M PER MIN
MOTOR TYPE: SOLO OR COMPOUND TYPE
NOODLE SLITTER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO SLITTING DOUGH SHEET TO NOODLES
MAIN PARAMETERS: SLITTING SIZE: 0.7-5MM
SLITTER TYPE: ROUND AND SQUARE
NOODLE CONTINUOUS STEAMER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO STEAM NOODLES CONTINUOUSLY
MAIN PARAMETERS: STEAM TEMP:110C
STEAM TIME: 180S
STEAMER TYPE: 1 LAYER OR 3 LAYER
NOODLE CUTTER AND FOLDER
WIDTH:200-1500MM
MATERIAL: SUS304, SLICON PALLET
FUNCTION: TO CUT AND FOLD NOODLES BEFORE DRYING
MAIN PARAMETERS: CUT SPEED: 20-70CUTS PER MIN
CUT LENGTH ADJUSTABLE
NOODLE FRYING MACHINE
WIDTH:200-3500MM
MATERIAL: CARBON STEEL FRAME, NOODLE CONTACT SUS304
FUNCTION: TO FRY NOODLES AS REQUESTED TYPE
MAIN PARAMETERS: FRYER TYPE: BUSKET
FRYING TIME: 90-100S
FRYING TEMP: 155-165C
OUT FRYER CONVEYOR
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO CONVEY NOODLE TO COOLING MACHINE
MAIN PARAMETERS: BY SUS304 BUSKET
ABOUT 2M LONG
NOODLE PACKING MACHINE
CAPACITY: 140-200 PACKS PER MIN
MATERIAL: CARBON STEEL AND SUS304
FUNCTION: TO PACK NOODLES WITH FLAVOR BAG
