Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FINESCHINA
-
Model Number:
-
XPE
-
Dimension(L*W*H):
-
Detailed Description
-
Weight:
-
80-350 kgs
-
Warranty:
-
1 Year
-
Certification:
-
ISO, SGS, BV
-
Name:
-
laboratory crusher equipment
-
Color:
-
as your required
-
After sale Service:
-
Engineers available to service
-
Spare parts supply:
-
Lifelong Time
-
Test&Installation:
-
Professional Engineer Assigned
-
Max feeding size:
-
50
-
inlet size:
-
100/60
Quick Details
-
Application:
-
laboratory crushing
-
Power:
-
1.5kw
-
Capacity(t/h):
-
40-1800 kgs/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FINESCHINA
-
Model Number:
-
XPE
-
Dimension(L*W*H):
-
Detailed Description
-
Weight:
-
80-350 kgs
-
Warranty:
-
1 Year
-
Certification:
-
ISO, SGS, BV
-
Name:
-
laboratory crusher equipment
-
Color:
-
as your required
-
After sale Service:
-
Engineers available to service
-
Spare parts supply:
-
Lifelong Time
-
Test&Installation:
-
Professional Engineer Assigned
-
Max feeding size:
-
50
-
inlet size:
-
100/60
PE60x100 lab jaw crusher, mini jaw crusher
Laboratory crusher equipment Jaw Crusher / Small Mini Stone/Rock Crusher From Fineschina
Processing capacity: 0.04-3t/h
Output size: 1-40mm
Applied material: for laboratory using
Brief Introduction :
Lab jaw crusher is ideal crusher for laboratory using. Lab Jaw Crusher is a new generation of crushing equipment with easy open of dynamic and static jaws, convenient clean up and no blending of samples. It is capable of fine and medium crushing a variety of ores and materials with compressive strength of 24kg/cm2 and below. Have the performance of great crushing ratio, uniform particle size and adjustment of output size.
Working Principle :
Lab jaw crusher uses the motor to drive belt and pulley, through the eccentric shaft to make the jaw move up and down, when movable jaw falls, the angle between the fixed jaw and the movable jaw become smaller, the materials are crushed to achieve crushing the purpose; when movable jaw rises, the angle between the movable jaw and the fixed jaw become larger, the movable jaw plate leaves the fixed jaw plate under the action of a pull rod. At this time materials broken discharge from the crushing chamber.
Features :
1: Simple structure, easy maintenance.
2: Smart body, easy taking.
3: Safe operation.
4: Low cost of production.
Specifications :
|
Type |
Inlet size
|
Feeding size
|
Capacity
|
Motor power
|
Output size
|
Overall dimension
|
Weight
|
|
PE-60×100 |
60×100 |
45 |
0.3-0.8 |
1.1 |
3-10 |
|
0.116 |
|
PE-150×250 |
150×250 |
125 |
1-5 |
5.5 |
10-40 |
875×758×850 |
0.81 |
|
PE-250×400 |
400×250 |
210 |
5-20 |
15 |
20-60 |
1450×1315×1296 |
2.8 |
|
PE-250×500 |
250×500 |
210 |
9.12-49 |
18.5 |
20-80 |
1450×1415×1296 |
3.25 |
|
PE-400×600 |
400×600 |
340 |
16-65 |
30 |
40-100 |
1565×1732×1586 |
6.5 |
|
PE-430×600 |
430×600 |
400 |
56-96 |
37 |
90-140 |
1595×1732×1586 |
6.8 |
|
PE-500×750 |
500×750 |
425 |
45-100 |
55 |
50-100 |
1890×1916×1870 |
10.1 |
|
PE-600×750 |
600×750 |
500 |
80-160 |
55 |
150-200 |
2000×1916×1870 |
12 |
|
PE-600×900 |
600×900 |
500 |
50-120 |
55-75 |
65-160 |
2305×1840×2298 |
15.5 |
|
PE-670×900 |
670×900 |
500 |
105-132 |
55-75 |
135-230 |
2375×1540×2298 |
14.8 |
|
PE-750×1060 |
750×1060 |
630 |
52-180 |
110 |
80-140 |
2450×2472×2840 |
28 |
|
PE-870×1060 |
870×1060 |
670 |
210-330 |
110 |
200-260 |
2570×2472×2840 |
30.5 |
|
PE-900×1060 |
900×1060 |
685 |
160-380 |
110 |
230-290 |
2600×2472×2840 |
31 |
|
PE-900×1200 |
900×1200 |
750 |
140-260 |
110 |
95-165 |
3335×3182×3025 |
50 |
|
PE-1000×1200 |
1000×1200 |
850 |
315-342 |
110 |
190-365 |
3435×3182×3028 |
51 |
|
PE-1200×1500 |
1200×1500 |
950 |
296-560 |
160 |
150-350 |
|
100.9 |
|
PEX-150×750 |
150×750 |
125 |
8-25 |
15 |
10-40 |
896×745×935 |
3.8 |
|
PEX-250×750 |
750×250 |
210 |
15-30 |
22 |
25-60 |
1667×1545×1020 |
4.9 |
|
PEX-250×1000 |
1000×250 |
210 |
16-52 |
30-37 |
25-60 |
1530×1992×1380 |
6.5 |
|
|

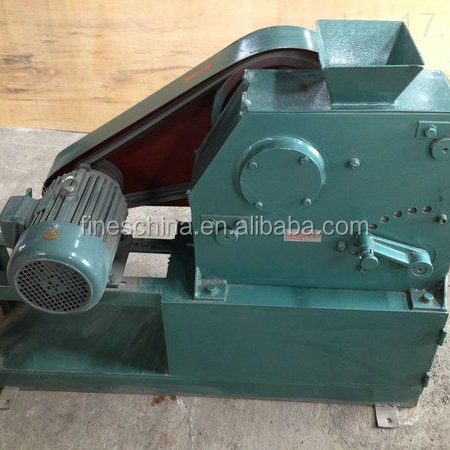

Products show :
