Quick Details
-
Input:
-
CVBS Video+RCA Audio(R&L)
-
Output:
-
VGA
-
Wight:
-
40 (g)
-
Packing:
-
color box
Quick Details
-
Model Number:
-
AV-VGAm
-
Brand Name:
-
Blank
-
Place of Origin:
-
China
-
Input:
-
CVBS Video+RCA Audio(R&L)
-
Output:
-
VGA
-
Wight:
-
40 (g)
-
Packing:
-
color box

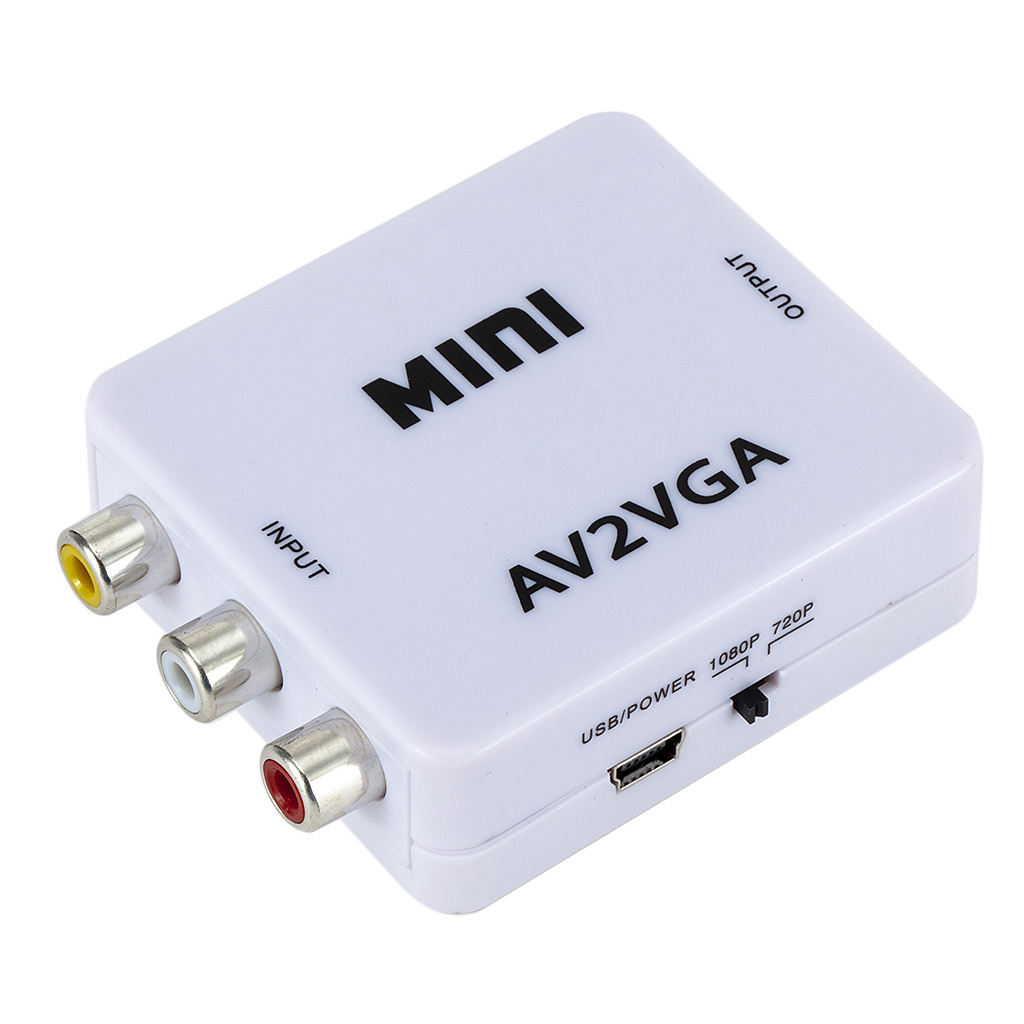

RCA CVBS AV TO VGA Adapter AV2VGA Video Converter
The VGA video converter is used to convert various computer images, to support NTSC or PAL video. It provides a composite output format. It is used for applications such as video conferencing, home theater, lecture room or computer image conversion.
1. Automatic detection and conversion of incoming PC image NTSC, PAL.
2. Supporting high resolution PC input to SXGA (1920 @ 60Hz).
3. Supporting resolution: 640x480 60 fps; 800x600 60 frames, 75 frames, 60 frames, 75 frames; 1024x768,
1280x720 60 frames; 1280x768 60 frames, 75 frames; 1280x1024 60 frames per second, 75 frames;
1360x768 60 fps; 1400x1050 60 fps; 1440x900 60fps;
60 frames per second, 60 frames are 1680x1050; 1600x1200; 1920x1080 frames per second;
Packaging includes:
Converter----------------------------------------------------- 1PCS
USB cable (standard type) ----------------------------------------- 1PCS
Details:
Dimensions: (mm) 66 (D) x55 (W) X20 (H)
Weight: (g) 120.
Operating Temperature 0 ° C ~ 40 ° C / 32 ° F ~ 104 ° F
Storage Temperature -20 ° C ~ 60 ° C / -4 ° F ~ 140 ° F
Relative humidity: 90% RH (non-condensation)
Power consumption: (large) 2.5W (large)
Operational Control and Function
AV input: VGA input port, connected to the TV.
2. VGA video output: VGA output, connected to the display.
Power supply: USB connected to PC's USB port power supply.
4. PAL/NTSC: Switch CVBS Output Format
