Quick Details
-
Voltage:
-
200/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wylong
-
Dimension(L*W*H):
-
9x1.9x2.2m
-
Weight:
-
7000 KG
-
Product Model:
-
HLK-1207
-
Max. Sheet Size:
-
1195x700mm
-
Min. Sheet Size:
-
450x400mm
-
Power:
-
220/380V 12KW
-
Thickness Of Upper Paper:
-
120-1000g/m2
-
Thickness Of Bottom Paper:
-
200-1500g/m2
-
Laminate Error:
-
+_0.5mm
-
Operation Space:
-
3mx12m
-
Max. Speed:
-
100-150pcs/min
-
Weight/Dimension:
-
7000KGS/9x1.9x2.2m
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
200/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wylong
-
Dimension(L*W*H):
-
9x1.9x2.2m
-
Weight:
-
7000 KG
-
Product Model:
-
HLK-1207
-
Max. Sheet Size:
-
1195x700mm
-
Min. Sheet Size:
-
450x400mm
-
Power:
-
220/380V 12KW
-
Thickness Of Upper Paper:
-
120-1000g/m2
-
Thickness Of Bottom Paper:
-
200-1500g/m2
-
Laminate Error:
-
+_0.5mm
-
Operation Space:
-
3mx12m
-
Max. Speed:
-
100-150pcs/min
-
Weight/Dimension:
-
7000KGS/9x1.9x2.2m

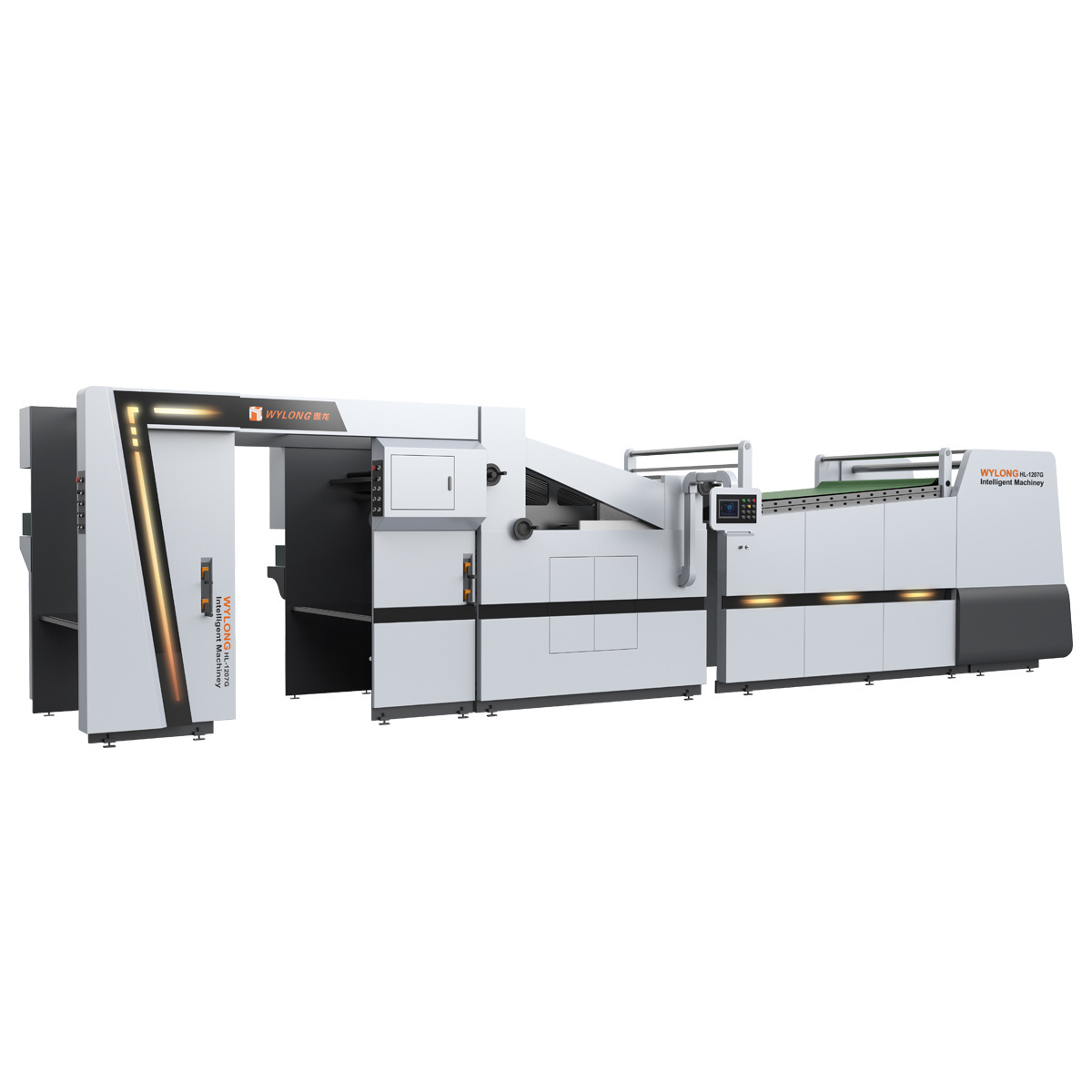

HLK Series High Speed Corrugated Board Cardboard Paper Automatic Laminating Machine
Application
Our company specializing in the production of HLK series high precision automatic mouunting machine,used for tissue paper,paper jam,gray paper ,coated paper ,such as joint processing,meet the double-sided printing and laminatingmthin and thick paper laminating special processing requirements,such as high precision of framed ,joint before and after deformation,suitable for wine box,shoebox,tag, elevator,toys,gift boxes,and exquisite packaging products processing,framed the paper smoothness,high accuracy,high hardness,good characteristics.
Our Advantages
Features
1.
Original paper synchronous dynamic calibration system.
2. Adopt double gap design E type, can put into use laminating paper with a pallet truck.
3. Before send paper type suction a top system, size conversion from adjustment, easy to operate.
4. Fluff paper receiver system, can will overlap the finished product, to push again after fluff and tidy. ensure clean paper.
5. Electric adjustment, speed and pressure of paper length conversion is convenient.
6. PLC computer control system, can automatically detect the status of the operation, abnormal situation,maintenance and work record.
7. High precision coating system, automatic liquid level control, can according to adjust the volume.
Product Paramenters
|
Model
|
HLK-1207
|
|
Max. Sheet Size
|
1195x700mm
|
|
Min. Sheet Size
|
450x400mm
|
|
Power
|
220/380V 12KW
|
|
Thickness Of Upper Paper
|
120-1000g/㎡
|
|
Thickness Of Bottom Paper
|
200-1500g/㎡
|
|
Laminate Error
|
±0.5mm
|
|
Operation Space
|
3mx12m
|
|
Max. Speed
|
100-150pcx/min
|
|
Weight
|
7000kgs
|
|
Dimension
|
9x1.9x2.2m
|
Products Description
1. Feeder system:
▼
▼
Equipped with high speed dedicated feeder,feeding nozzle can freely adjust the angle to the paper;Feeder position adjusts
automatically.
automatically.
2. Laminating System:
▼▼
The paper is chased against the gauge by the speed difference between the paper and the motion gauge, performing high accuracy.
3. Sheet pressing part:
▼▼
4. Electrical system:
▼▼
Designed in the accordance with European CE stacdard, human-machine interface detects the faults automatically and alarms any abnormal.
Electric system brand
|
Name
|
Original
|
Brand
|
|
Main motor
|
Taiwan
|
Fukuda
|
|
Paper feed motor
|
Taiwan
|
Li Ming
|
|
Paper feed motor
|
Taiwan
|
Sanya
|
|
Reducer motor
|
Taiwan
|
Fukuda
|
|
Red light circle
|
Israel
|
VOLTA
|
|
Belt
|
Japan
|
UNIENTI
|
|
Reducer
|
shanghai
|
Xinyangda
|
|
Vacuum pump
|
Germany
|
Baker
|
|
Photoelectric
|
Japan
|
Omron
|
|
Relay
|
Germany
|
Schneider
|
|
Touch screen
|
Taiwan
|
Delta
|
|
Inverter
|
Taiwan
|
Delta
|
|
Bearing
|
Japan
|
NSK
|
|
Drive chain
|
Germany
|
IWIS
|
|
Belt tensioner
|
Taiwan
|
Taicang Feiting Transmission
|
|
The electromagnetic valve
|
Japan
|
SMC
|
|
Press button
|
Germany
|
Schneider
|
|
AC contactor
|
Germany
|
Schneider
|
|
PLC
|
Taiwan
|
Delta
|
|
Expansion module
|
Taiwan
|
Delta
|
