Quick Details
-
Brand Name:
-
ONEGOL
-
Model Number:
-
HC-056K.1
-
Rated current:
-
2.A
-
Rated voltage:
-
125V/250VAC
-
Application:
-
lamp
-
Color:
-
black/white
-
Product name:
-
Refrigerator door switch
-
Function:
-
Normally Open/Close
-
Certification:
-
YES
Quick Details
-
Max. Current:
-
2A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ONEGOL
-
Model Number:
-
HC-056K.1
-
Rated current:
-
2.A
-
Rated voltage:
-
125V/250VAC
-
Application:
-
lamp
-
Color:
-
black/white
-
Product name:
-
Refrigerator door switch
-
Function:
-
Normally Open/Close
-
Certification:
-
YES

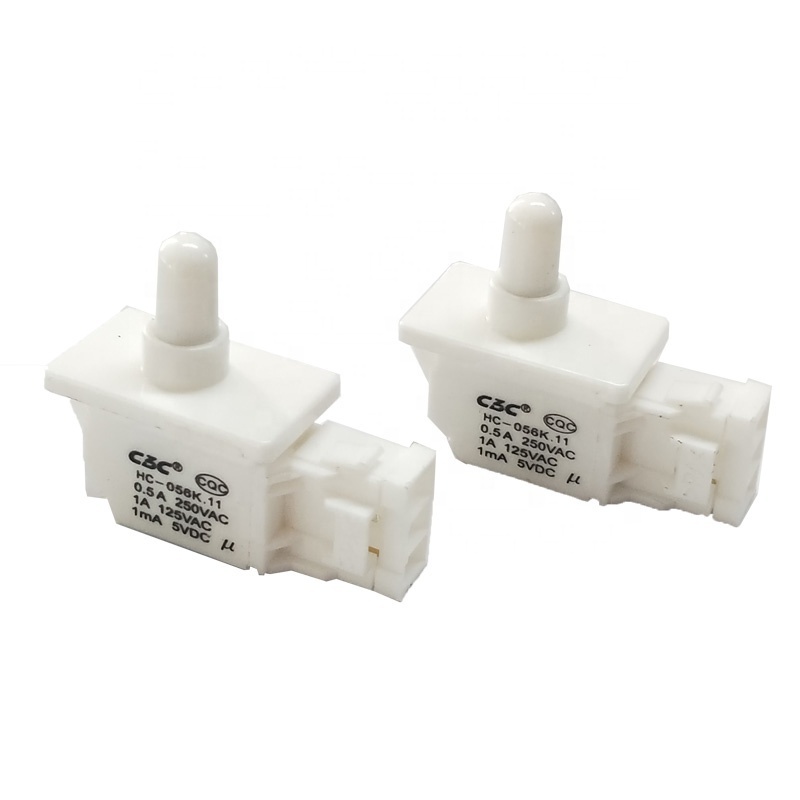

Refrigerator door Push button The door switch
Product Description
Product parameters
Rated value: 0.5a250vac: 1a125vac3
When the button force acts: ≤ 2Nb
Large compression position: ≤ 3.5n4
Contact resistance: ≤ 50m25
Insulation resistance: ≥ 100mq6
Dielectric strength: 1800v50hz
AC voltage: 3S, no flash or breakdown;
Electrical service life: under rated load, it works continuously for 50.00 times, and the switch is normal
Terminal model of switch plug-in connector: JST hlp-03v, ssf-21t-p1
